A9771/16
A9771/16
A9771/16
A9771/16

A9771/16

UGC DOR5973251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.10 CAD - $87.10 CAD
$87.10 CAD
$87.10 CAD - $87.10 CAD
$87.10 CAD

Vendu en lots de : 1

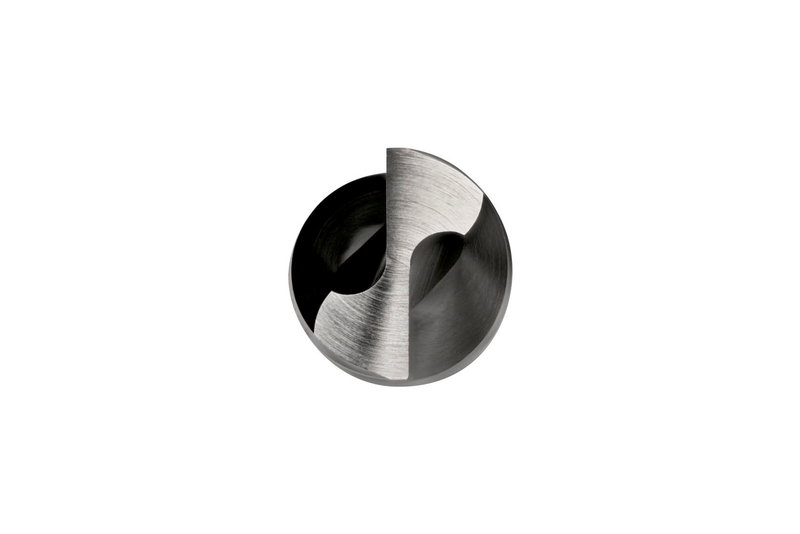

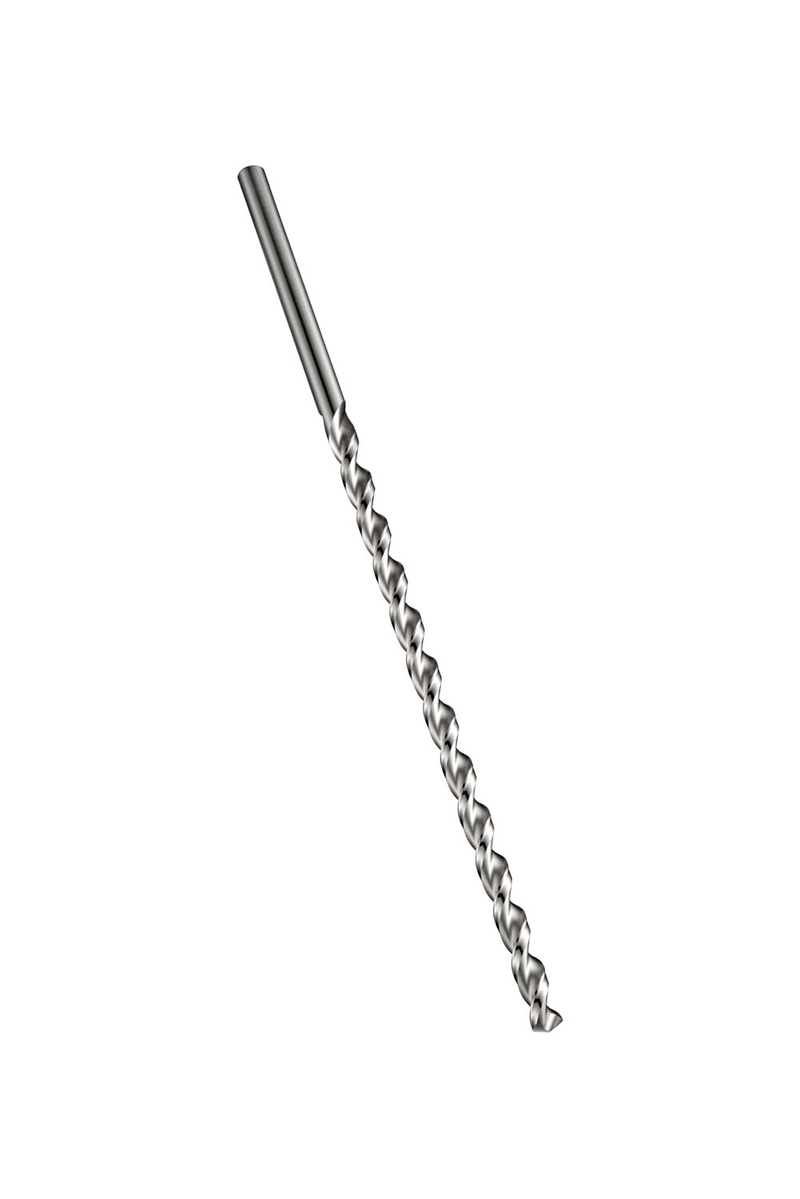

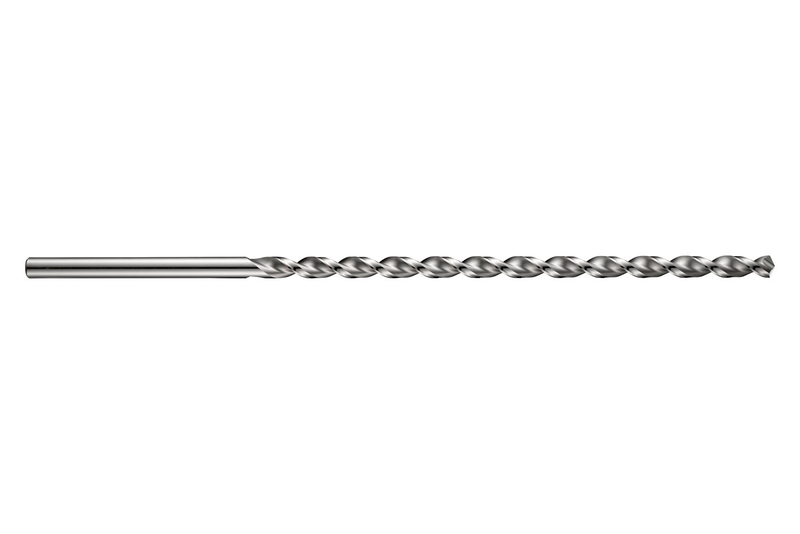

Forets PFX extra-longs à queue droite, diamètre 0,0625" (1/16) avec une longueur totale de 150mm et une longueur de coupe de 100mm selon la norme DIN 1869 / 2 avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9771/16
GradeLumineux
Product Number5973251
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Flute Length — in (LCF)3.937"
Flute Length — mm (LCF)100.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.0626"
Connection Dia. — mm (DCON)1.59 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347393
EAN7320760347393
File Type Download
A9771/16 — 3D Model STP Download
A9771/16 — Line Drawing PDF Download
