UGC DOR5973254
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$330.57 CAD - $330.57 CAD
$330.57 CAD
$330.57 CAD - $330.57 CAD
$330.57 CAD

Vendu en lots de : 1

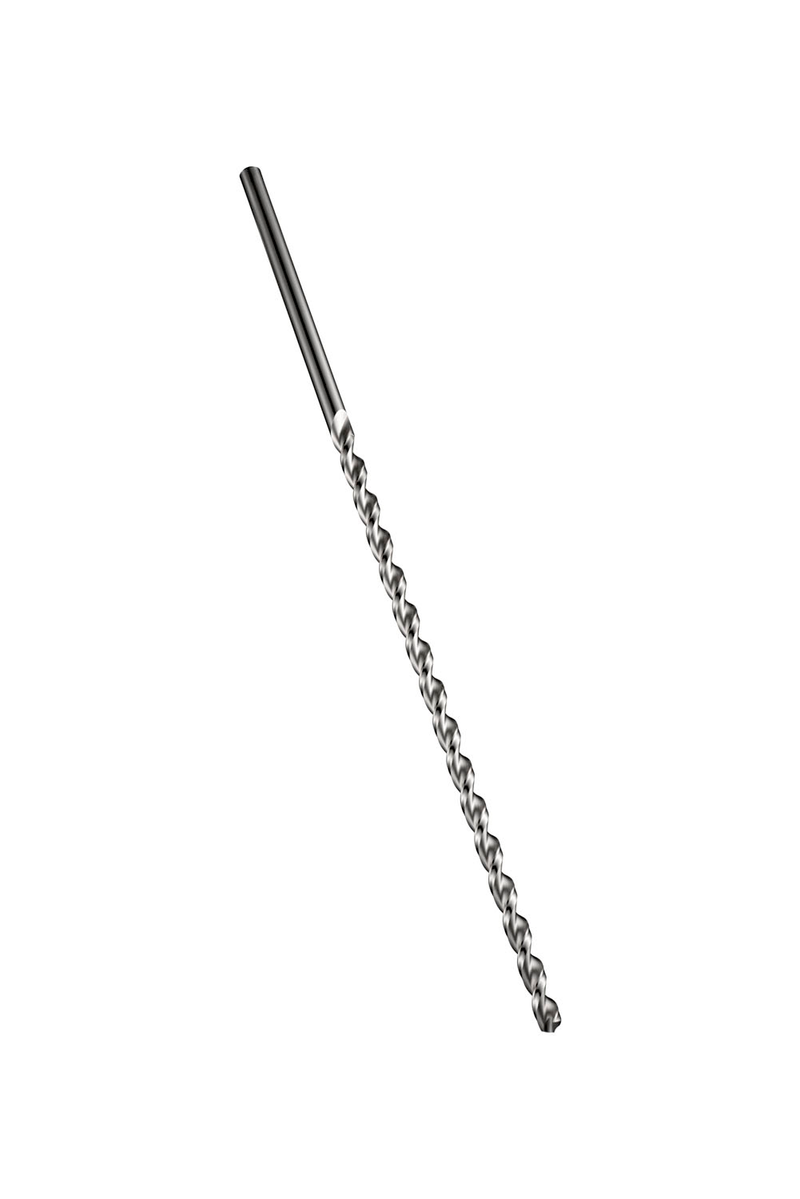

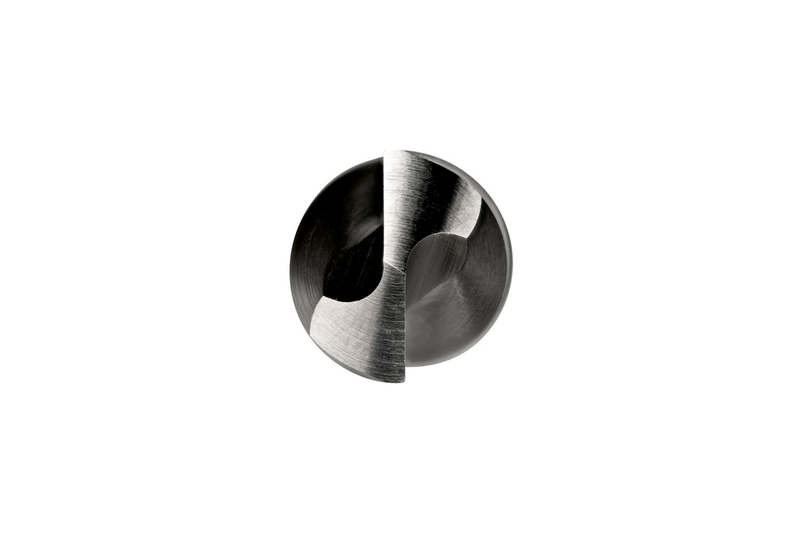

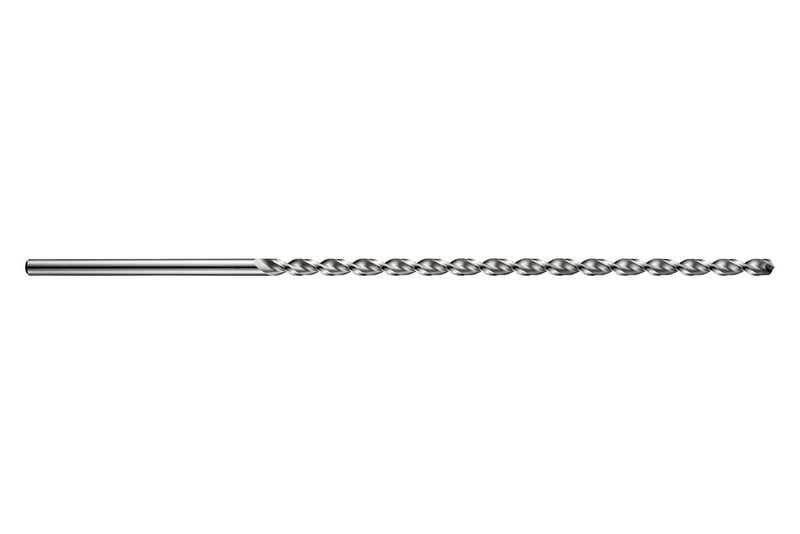

Foret PFX extra-long à queue cylindrique, diamètre 8,5 mm avec une longueur totale de 390 mm et une longueur utile de 265 mm selon la norme DIN 1869 / 3 avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9788,5X390
GradeLumineux
Product Number5973254
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.3346"
Cutting Diameter — mm (DC)8.5 mm
Overall Length — in (OAL)15.3543"
Overall Length — mm (OAL)390.0 mm
Flute Length — in (LCF)10.4331"
Flute Length — mm (LCF)265.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.3346"
Connection Dia. — mm (DCON)8.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148952
EAN7320760148952
File Type Download
A9788,5X390 — 3D Model STP Download
A9788,5X390 — Line Drawing PDF Download
