UGC DOR5973262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.86 CAD - $365.86 CAD
$365.86 CAD
$365.86 CAD - $365.86 CAD
$365.86 CAD

Vendu en lots de : 1

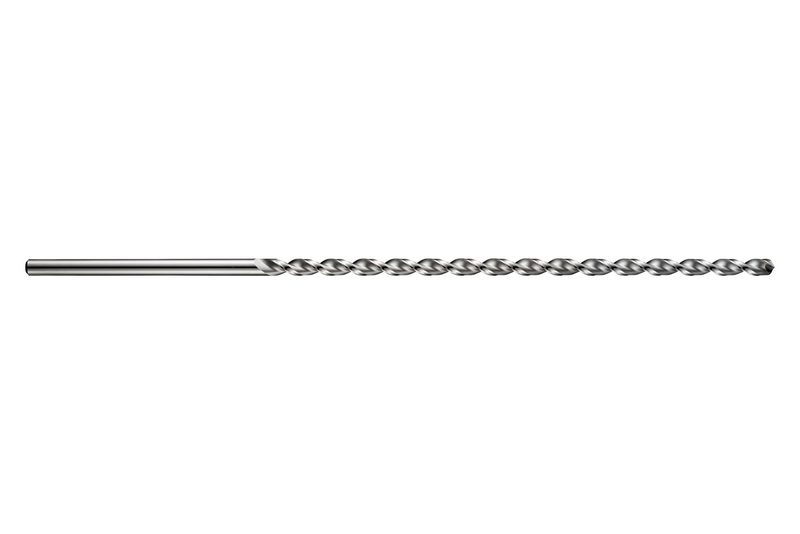

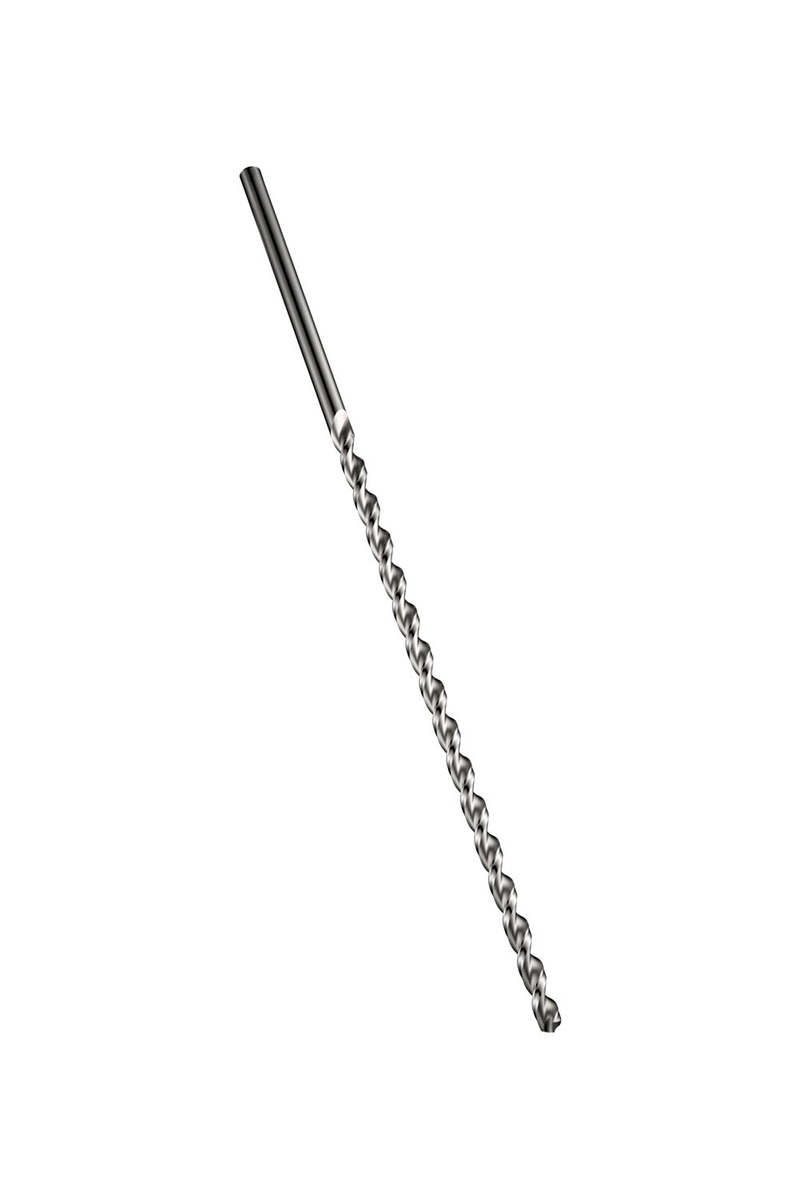

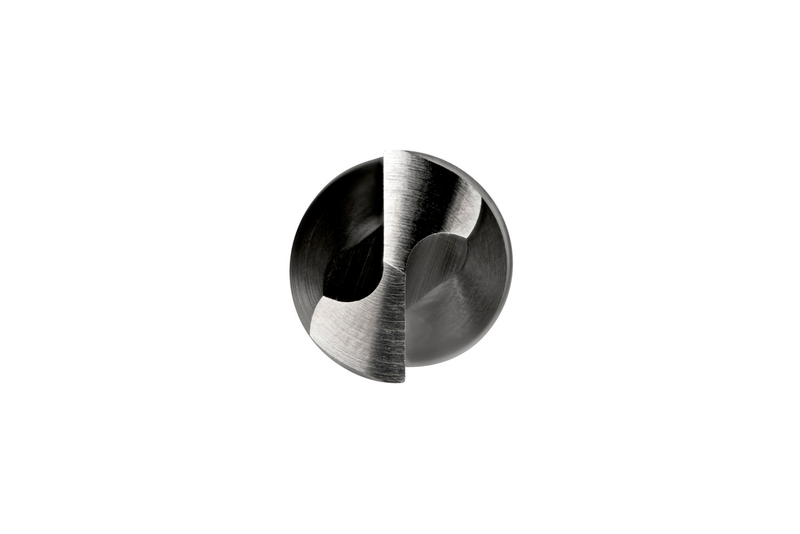

Foret PFX extra-long à queue cylindrique, diamètre 9 mm, longueur totale 410 mm et longueur utile 280 mm, selon la norme DIN 1869 / 3, avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour le perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9789.0X410
GradeLumineux
Product Number5973262
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)16.1417"
Overall Length — mm (OAL)410.0 mm
Flute Length — in (LCF)11.0236"
Flute Length — mm (LCF)280.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148969
EAN7320760148969
File Type Download
A9789.0X410 — 3D Model STP Download
A9789.0X410 — Line Drawing PDF Download
