A9763/16
A9763/16
A9763/16
A9763/16

A9763/16

UGC DOR5973264
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.07 CAD - $81.07 CAD
$81.07 CAD
$81.07 CAD - $81.07 CAD
$81.07 CAD

Vendu en lots de : 1

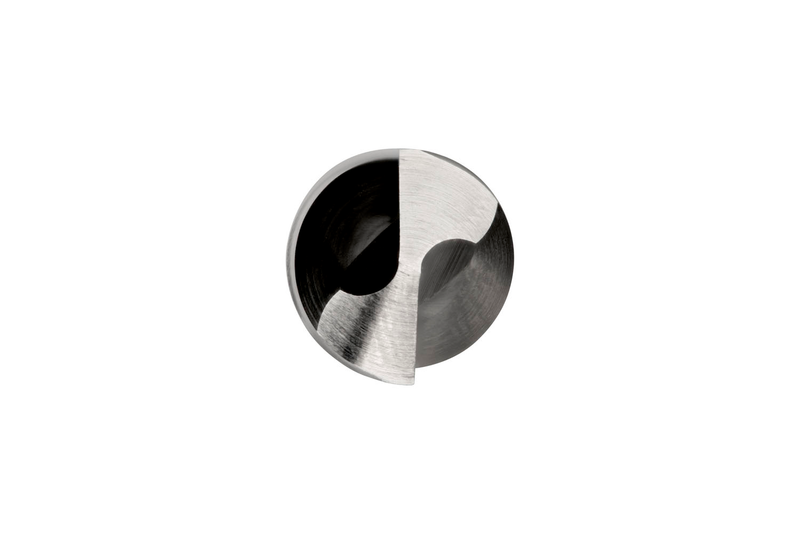

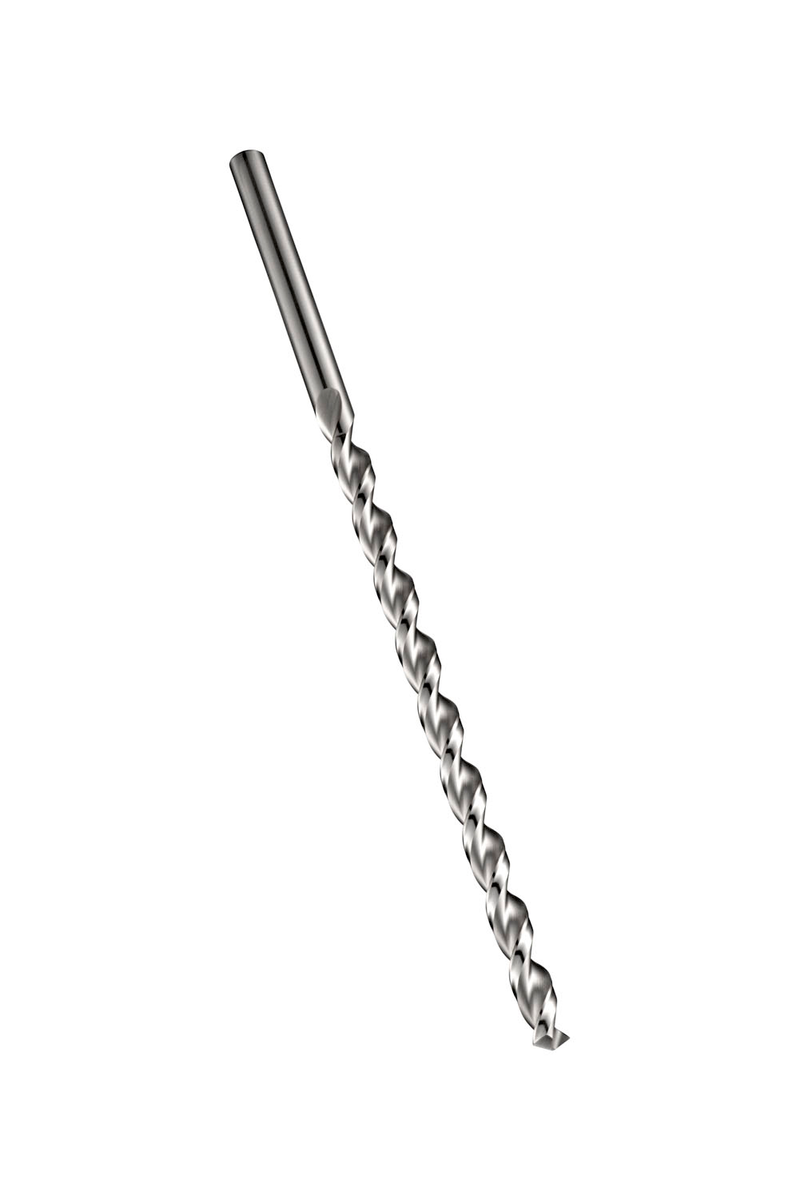

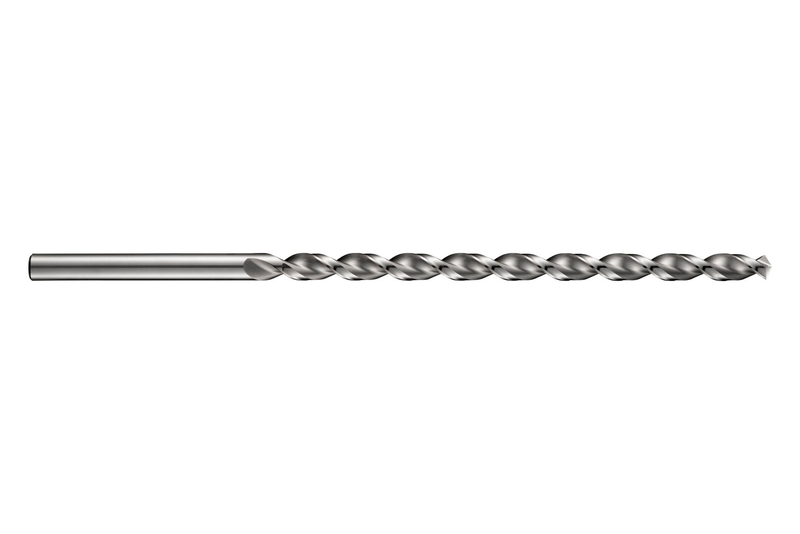

Foret PFX extra long à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 195 mm et une longueur de coupe de 135 mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9763/16
GradeLumineux
Product Number5973264
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)7.6772"
Overall Length — mm (OAL)195.0 mm
Flute Length — in (LCF)5.315"
Flute Length — mm (LCF)135.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.1874"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number347935
EAN7320760347935
File Type Download
A9763/16 — 3D Model STP Download
A9763/16 — Line Drawing PDF Download
