UGC DOR5973265
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$405.79 CAD - $405.79 CAD
$405.79 CAD
$405.79 CAD - $405.79 CAD
$405.79 CAD

Vendu en lots de : 1

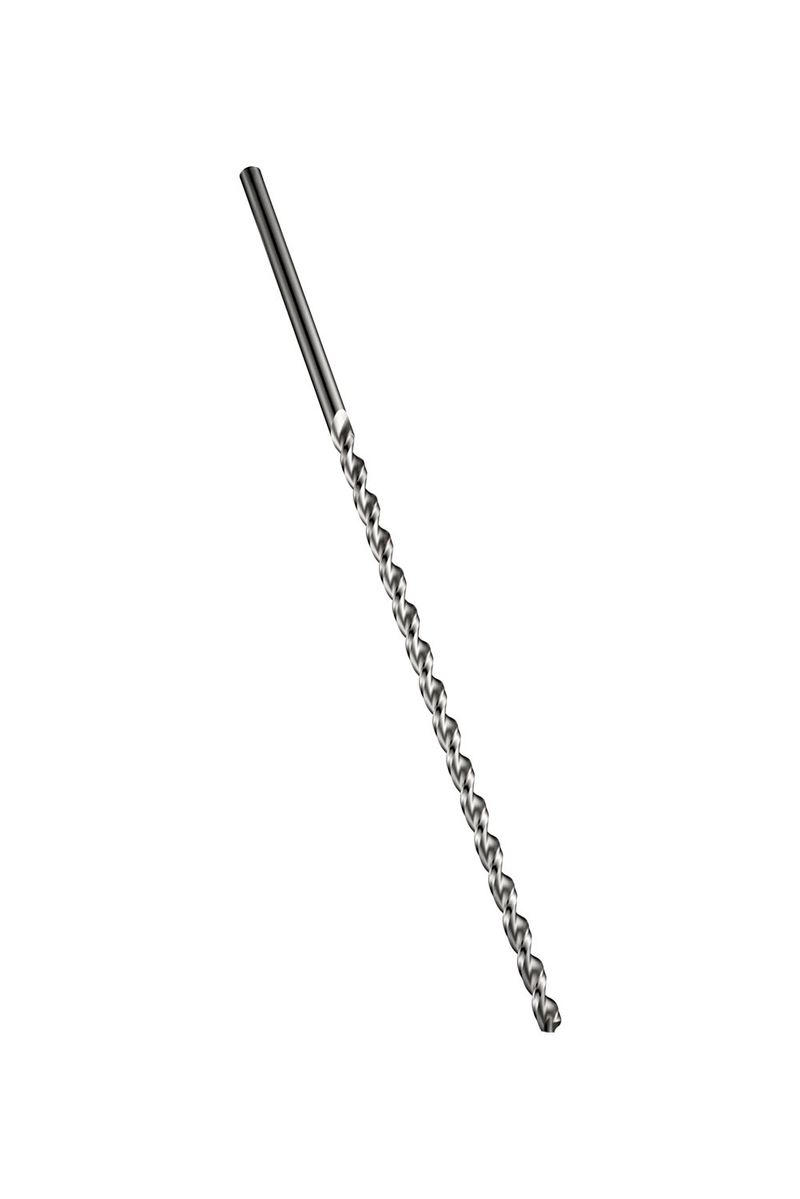

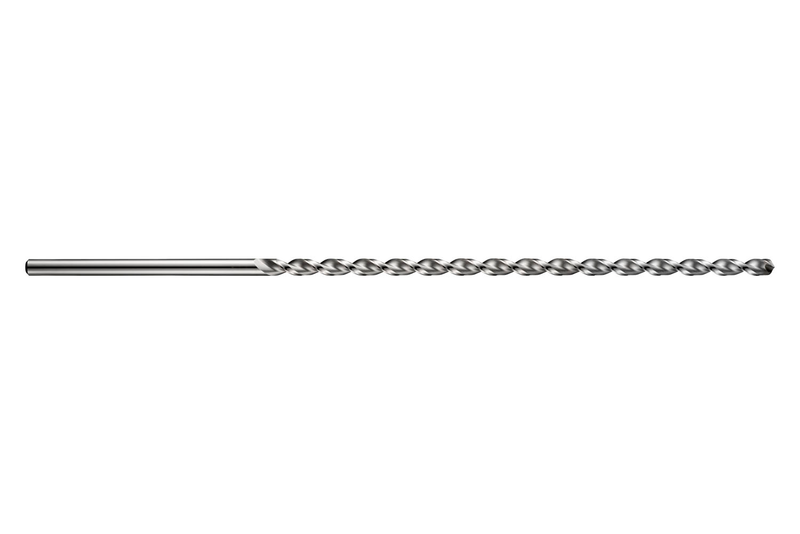

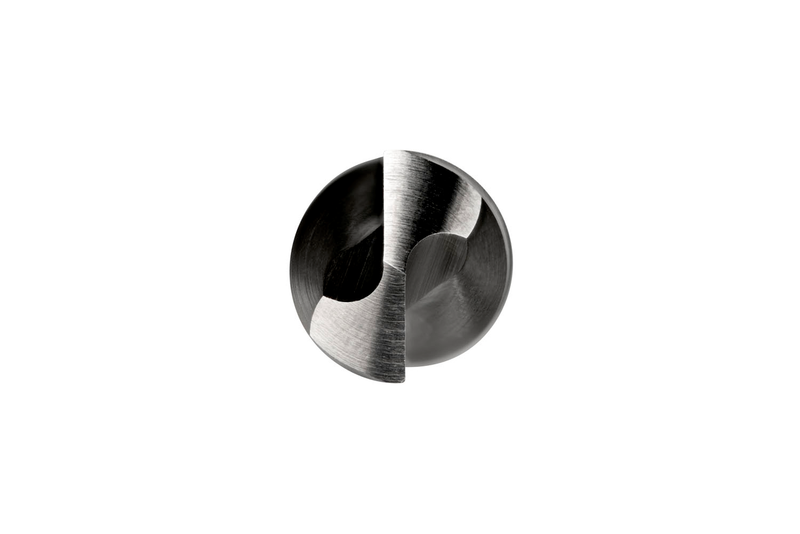

Foret PFX extra-long à queue cylindrique, diamètre 9,5 mm avec une longueur totale de 410 mm et une longueur utile de 280 mm selon la norme DIN 1869 / 3 avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour un perçage à 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI)A9789.5X410
Product Name (ISO)A9789,5X410
GradeLumineux
Product Number5973265
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.374"
Cutting Diameter — mm (DC)9.5 mm
Overall Length — in (OAL)16.1417"
Overall Length — mm (OAL)410.0 mm
Flute Length — in (LCF)11.0236"
Flute Length — mm (LCF)280.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.374"
Connection Dia. — mm (DCON)9.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148976
EAN7320760148976
File Type Download
A9789.5X410 — 3D Model STP Download
A9789.5X410 — Line Drawing PDF Download
