UGC DOR5973295
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$583.14 CAD - $583.14 CAD
$583.14 CAD
$583.14 CAD - $583.14 CAD
$583.14 CAD

Vendu en lots de : 1

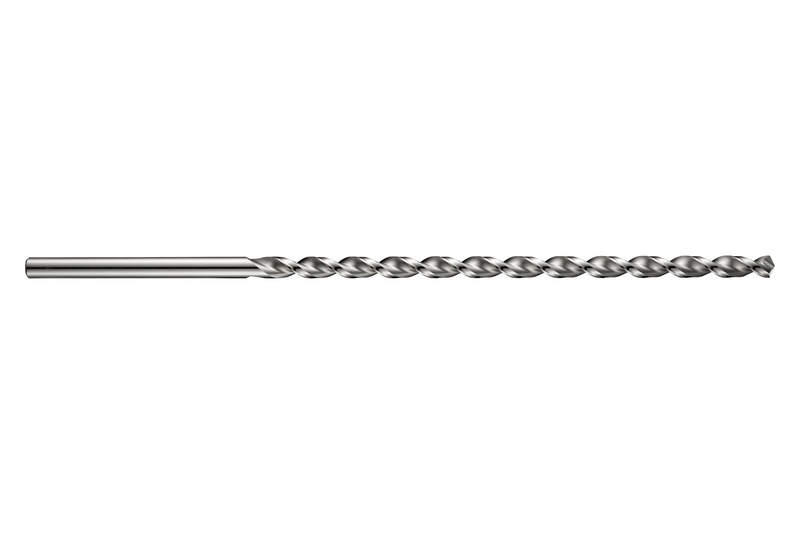

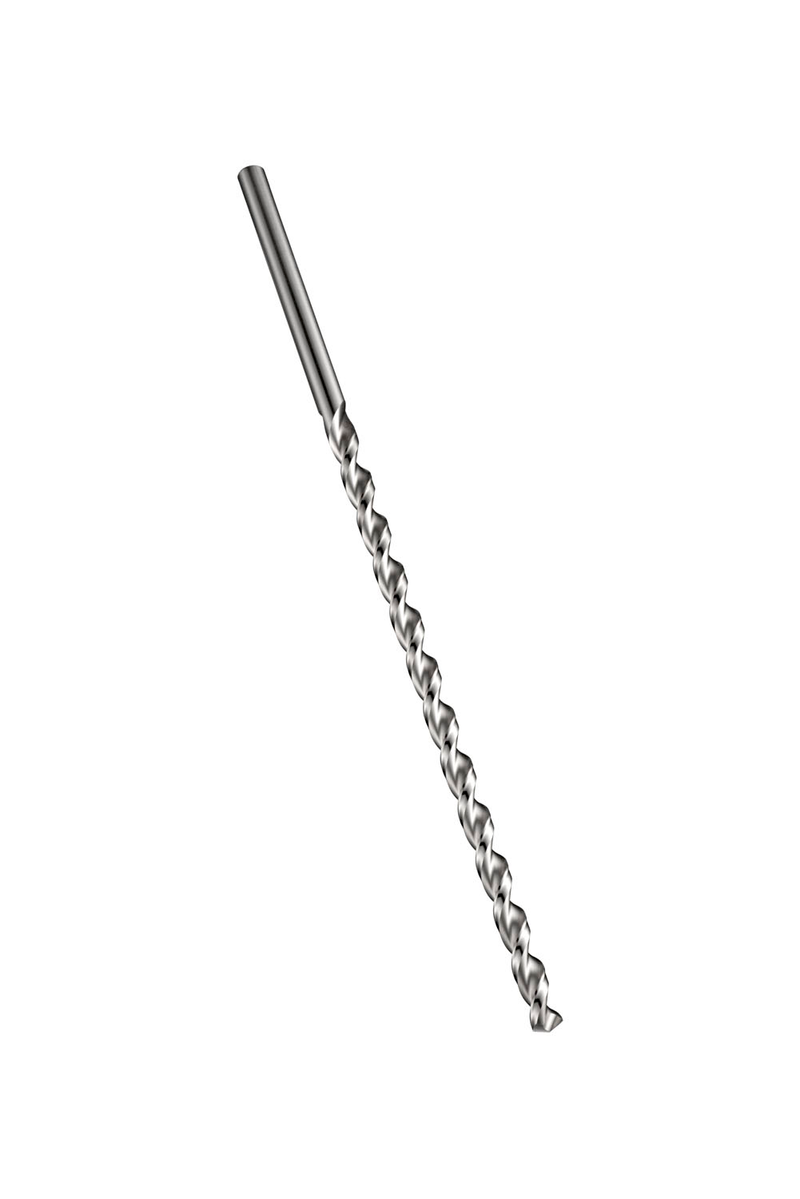

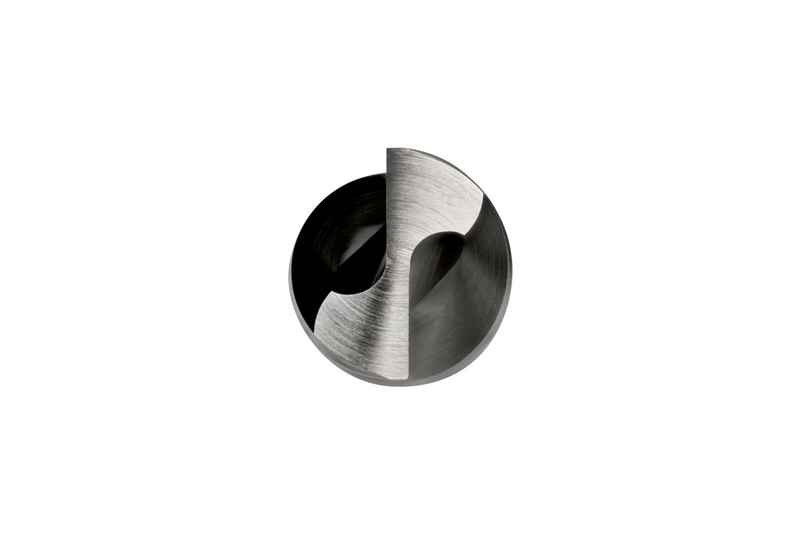

Foret PFX extra-long à queue cylindrique, diamètre 12mm, longueur totale 375mm et longueur utile 260mm selon la norme DIN 1869 / 2, angle de pointe 130°, en HSS-E cobalt, finition brillante, hélice rapide et âme parabolique pour un perçage en 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97712.0
GradeLumineux
Product Number5973295
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)14.7638"
Overall Length — mm (OAL)375.0 mm
Flute Length — in (LCF)10.2362"
Flute Length — mm (LCF)260.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347287
EAN7320760347287
File Type Download
A97712.0 — 3D Model STP Download
A97712.0 — Line Drawing PDF Download
