UGC DOR5973299
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$604.50 CAD - $604.50 CAD
$604.50 CAD
$604.50 CAD - $604.50 CAD
$604.50 CAD

Vendu en lots de : 1

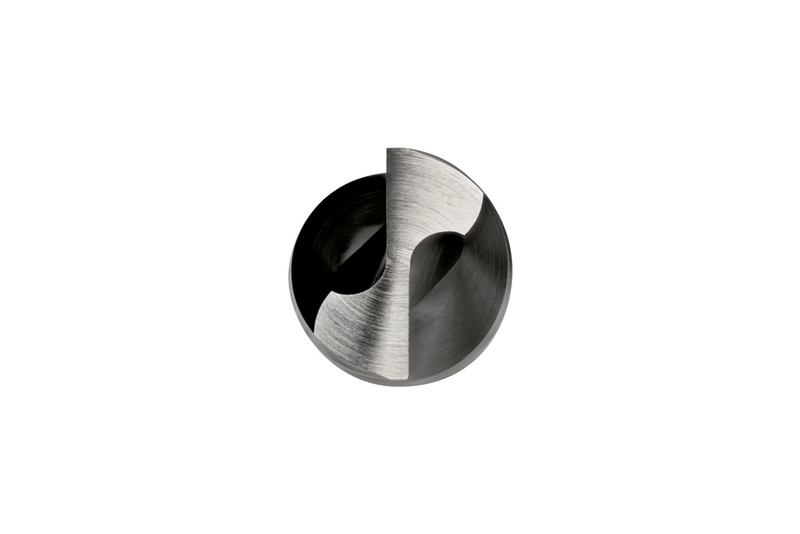

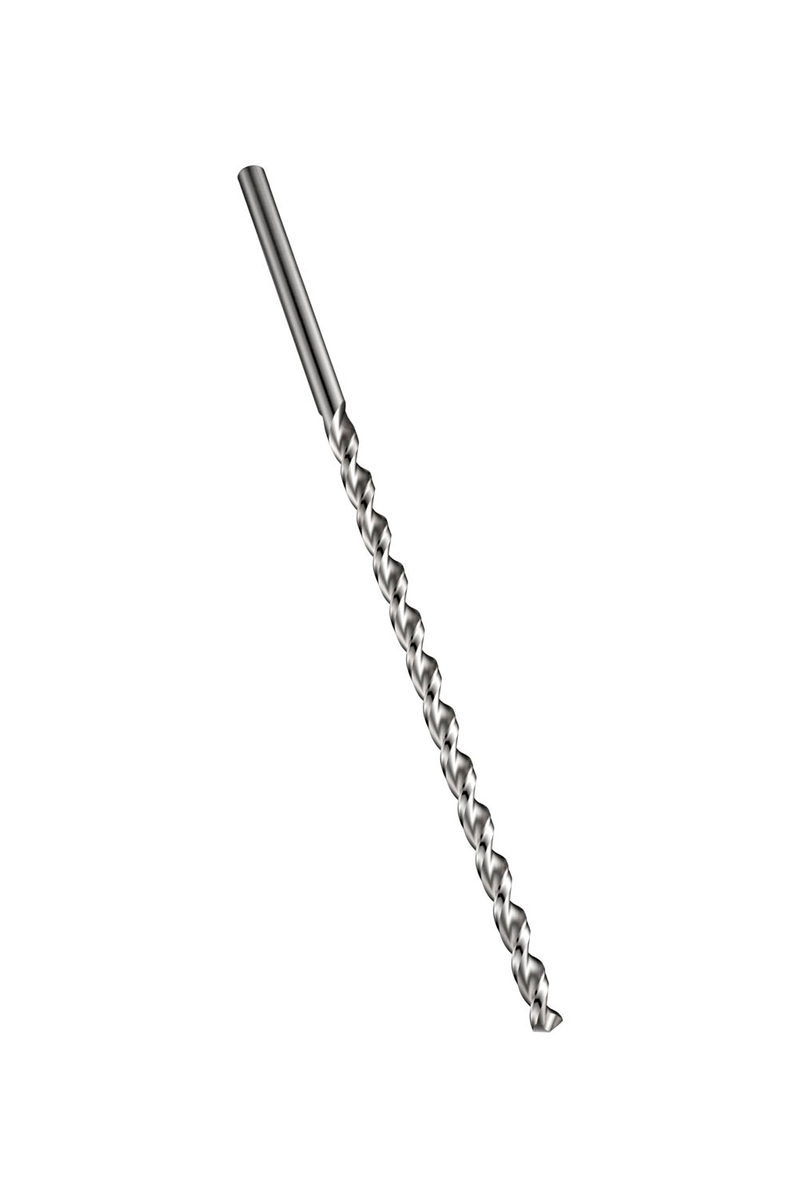

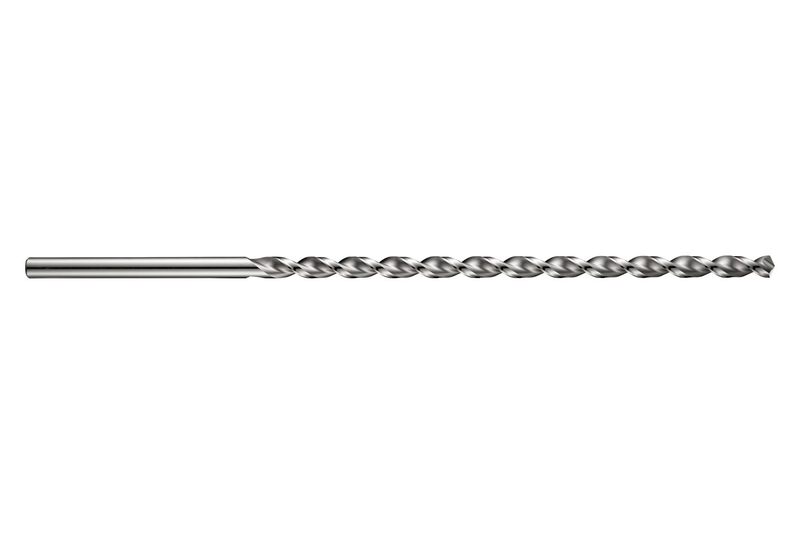

Foret PFX extra-long à queue cylindrique, diamètre 12,5 mm, longueur totale 375 mm et longueur utile 260 mm selon la norme DIN 1869 / 2, angle de pointe 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97712.5
GradeLumineux
Product Number5973299
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)14.7638"
Overall Length — mm (OAL)375.0 mm
Flute Length — in (LCF)10.2362"
Flute Length — mm (LCF)260.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347294
EAN7320760347294
File Type Download
A97712.5 — 3D Model STP Download
A97712.5 — Line Drawing PDF Download
