UGC DOR5973303
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$866.36 CAD - $866.36 CAD
$866.36 CAD
$866.36 CAD - $866.36 CAD
$866.36 CAD

Vendu en lots de : 1

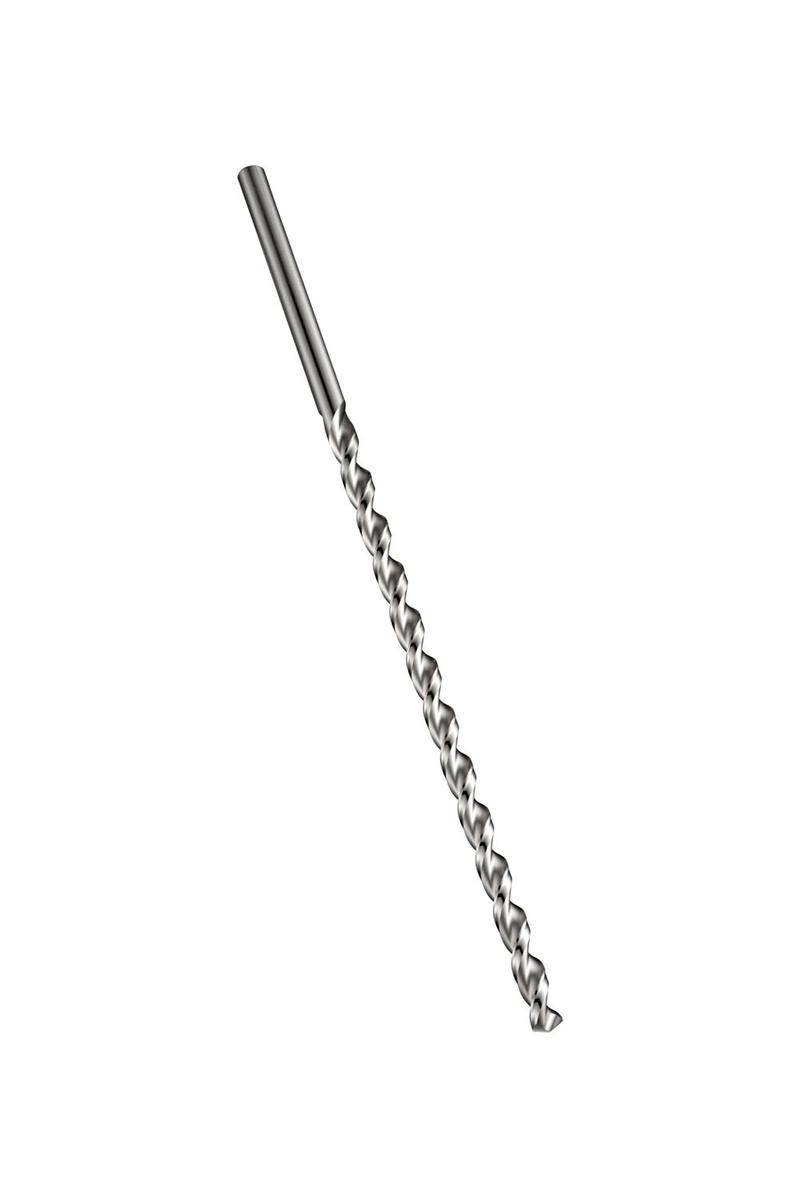

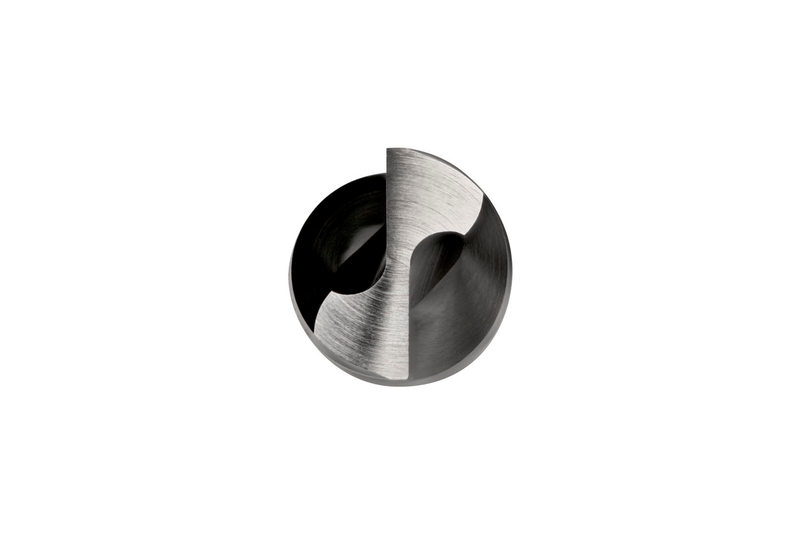

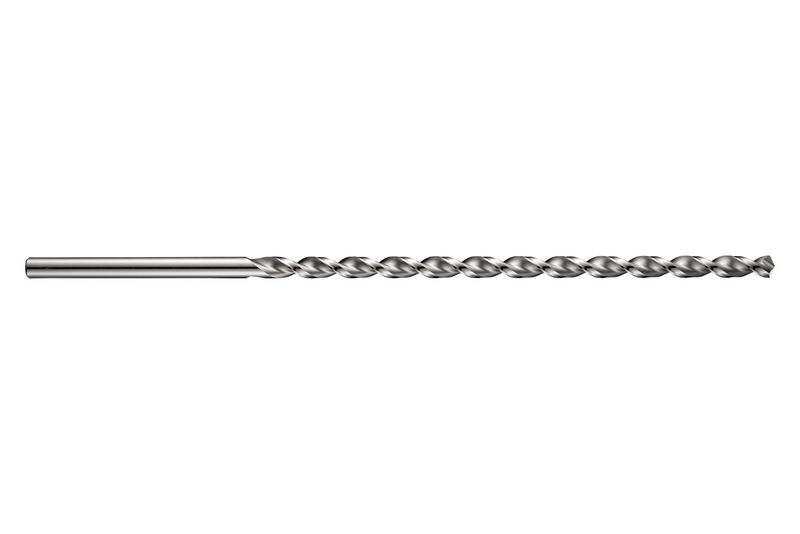

Foret PFX extra-long avec queue cylindrique, diamètre 14 mm avec une longueur totale de 390 mm et une longueur de coupe de 270 mm selon la norme DIN 1869 / 2 avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour le perçage de 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97714.0
GradeLumineux
Product Number5973303
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)15.3543"
Overall Length — mm (OAL)390.0 mm
Flute Length — in (LCF)10.6299"
Flute Length — mm (LCF)270.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347317
EAN7320760347317
File Type Download
A97714.0 — 3D Model STP Download
A97714.0 — Line Drawing PDF Download
