UGC DOR5973311
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.40 CAD - $31.40 CAD
$31.40 CAD
$31.40 CAD - $31.40 CAD
$31.40 CAD

Vendu en lots de : 1

Fraise à lamer 3 arêtes, diamètre 10,00mm, longueur totale 80mm, longueur d'arête 18mm et queue cylindrique 8mm, selon la norme DIN 373 pour produire un lamage à l'aide d'un foret pilote non perçant de diamètre 5,30mm pour un ajustement serré pour M5, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, des aciers forgés et du cuivre ou de ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12510.0X5.3
GradeLumineux
Product Number5973311
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107614
EAN7320760107614
File Type Download

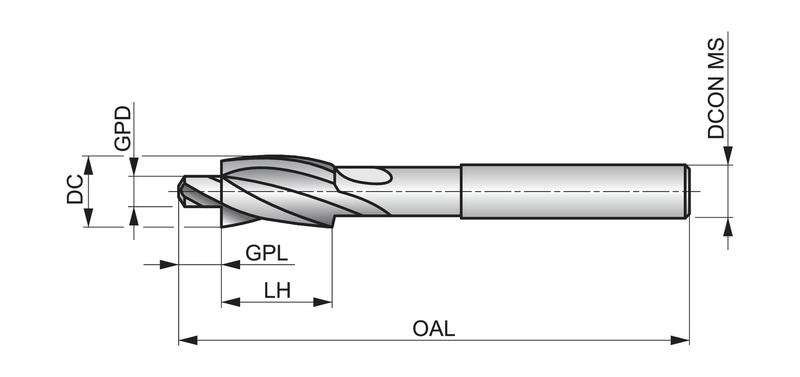

G12510.0X5.3 — Line Drawing PDF Download
