UGC DOR5973322
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$332.47 CAD - $332.47 CAD
$332.47 CAD
$332.47 CAD - $332.47 CAD
$332.47 CAD

Vendu en lots de : 1

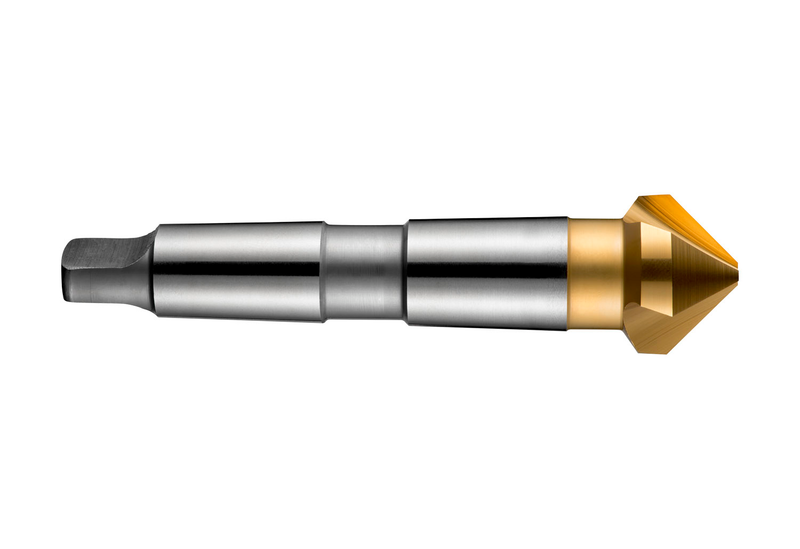

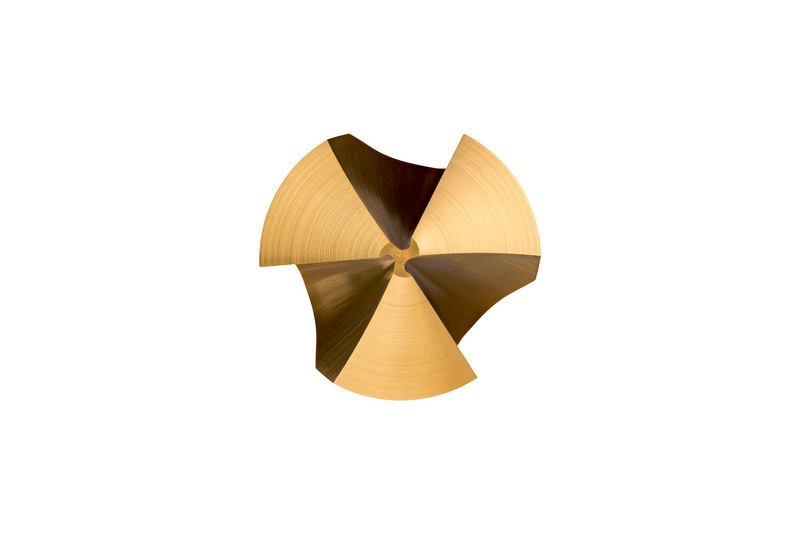

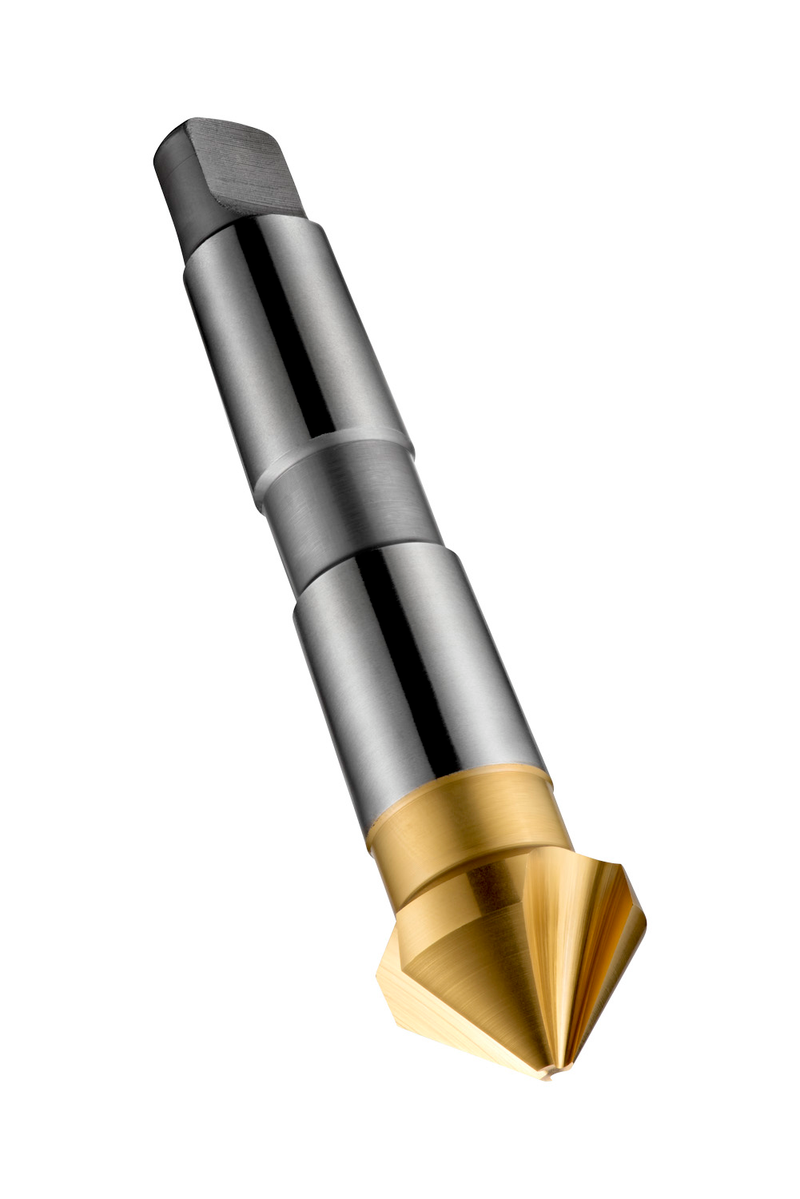

Fraises à chambrer à 3 dents, angle de chambrage 90°, diamètre maximum 31.00mm, longueur totale 112mm, longueur de tête 20mm et cône Morse CM 2, selon la norme DIN 335 D pour produire un logement conique pour vis à tête fraisée ISO métrique avec un diamètre de trou minimum de 4.20mm, HSS avec revêtement TiN standard pour l'usinage de l'acier et de l'acier moulé, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium et du cuivre ou des alliages de cuivre corroyés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G33831.0
GradeTiN
Product Number5973322
Product FamilyG338

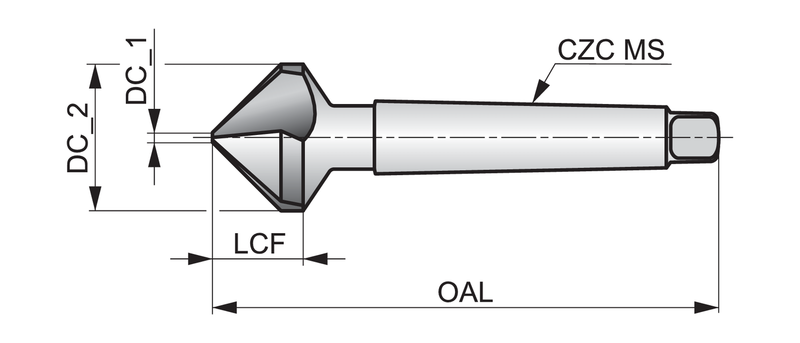

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Flute Length — mm (LCF)20.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 335 D
Reference Numbers
EDP Number109519
EAN7320760109519
File Type Download
G33831.0 — Line Drawing PDF Download
