UGC DOR5973328
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.83 CAD - $22.83 CAD
$22.83 CAD
$22.83 CAD - $22.83 CAD
$22.83 CAD

Vendu en lots de : 1

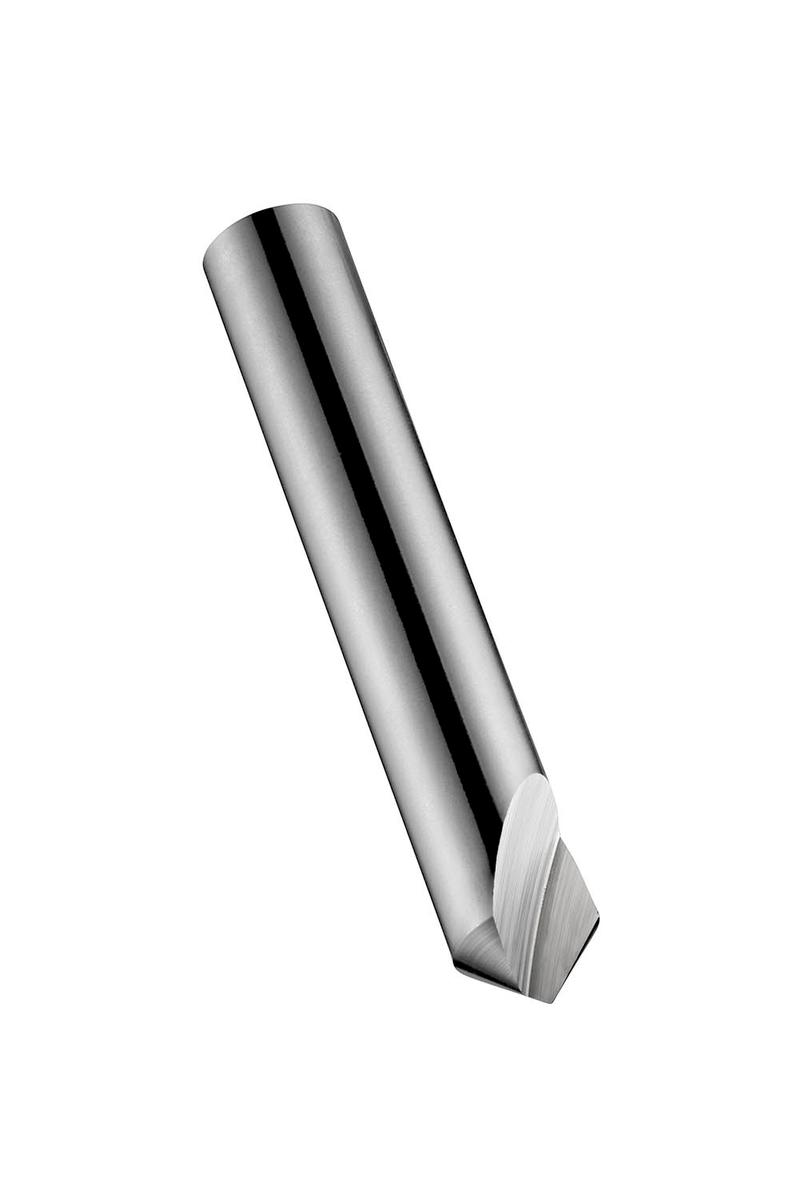

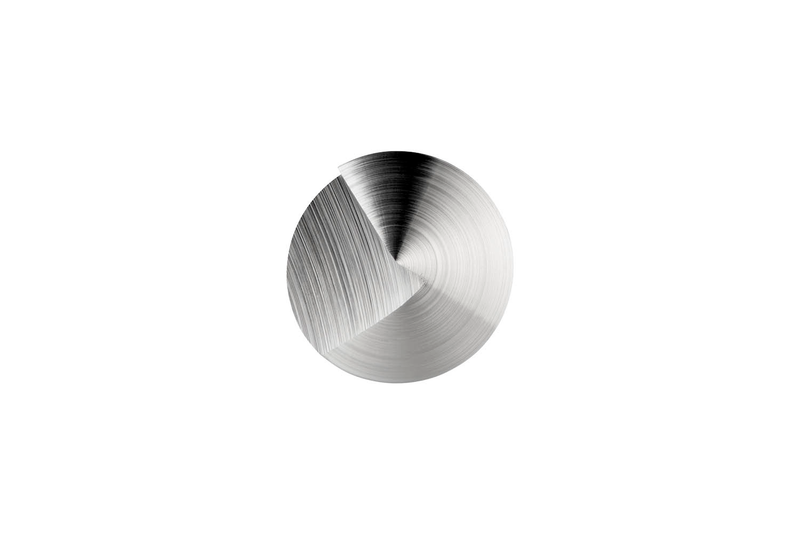

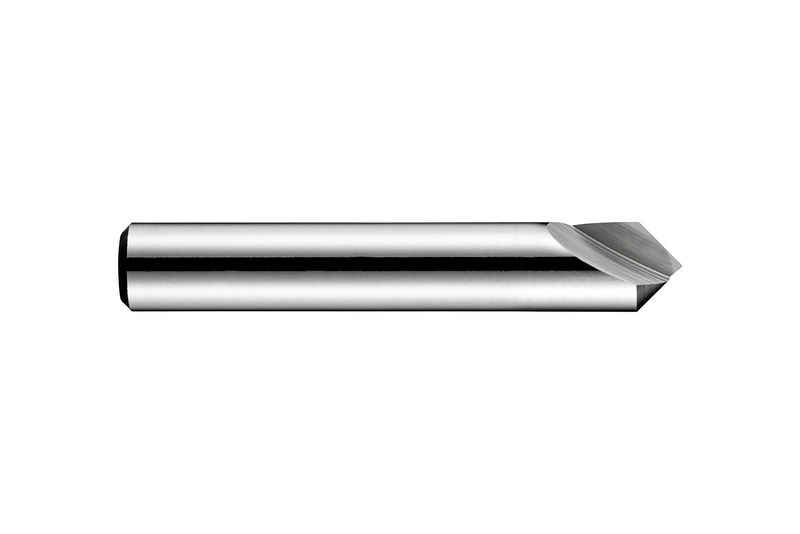

Fraise à chanfreiner à 1 dent, angle de chanfreinage de 90°, diamètre maximal de 6,00 mm, longueur totale de 45 mm et queue cylindrique de 6 mm, selon la norme DORMER, pour réaliser un logement conique pour les vis à tête fraisée ISO métrique, en acier rapide avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone non alliés, des alliages de cuivre ou de cuivre corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1296.0
GradeLumineux
Product Number5973328
Product FamilyG129

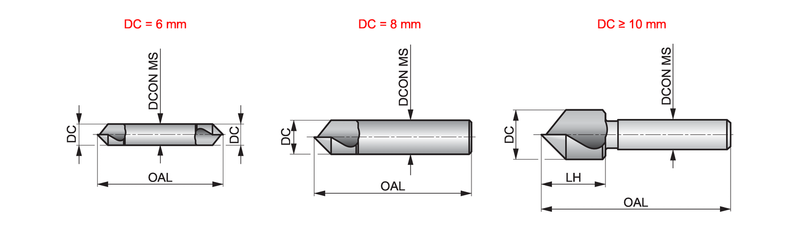

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149195
EAN7320760149195
File Type Download
G1296.0 — Line Drawing PDF Download
