UGC DOR5973330
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.94 CAD - $24.94 CAD
$24.94 CAD
$24.94 CAD - $24.94 CAD
$24.94 CAD

Vendu en lots de : 1

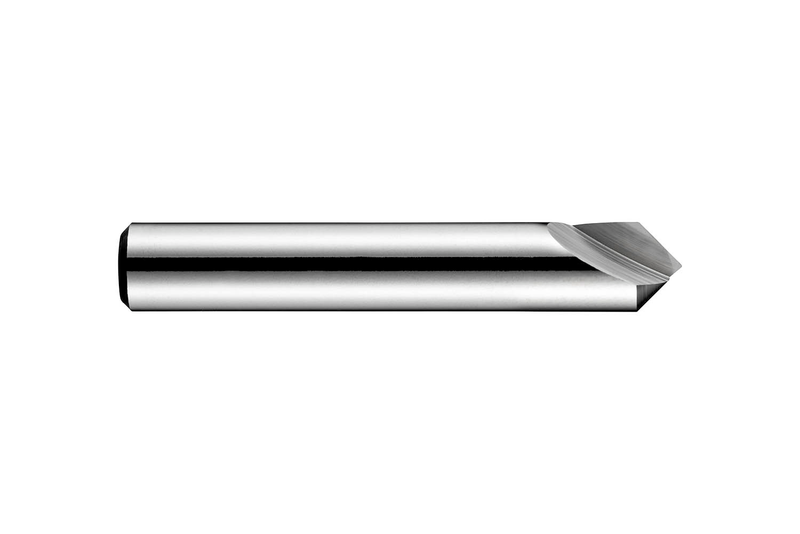

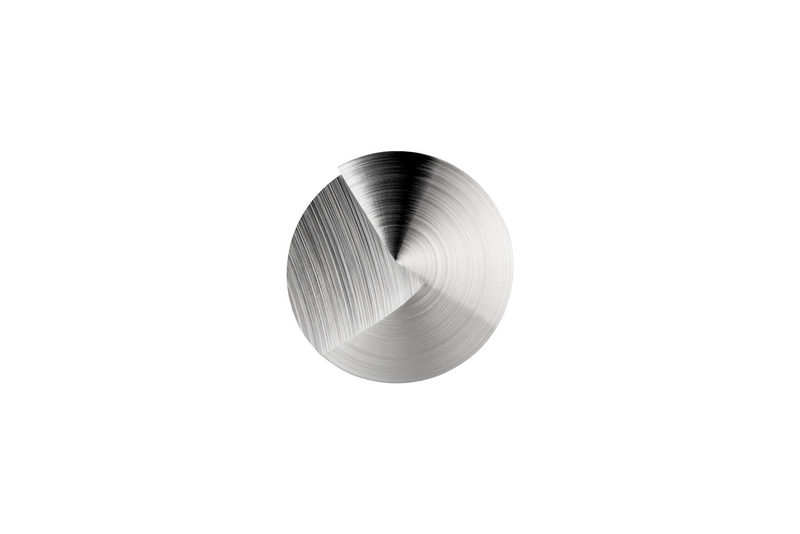

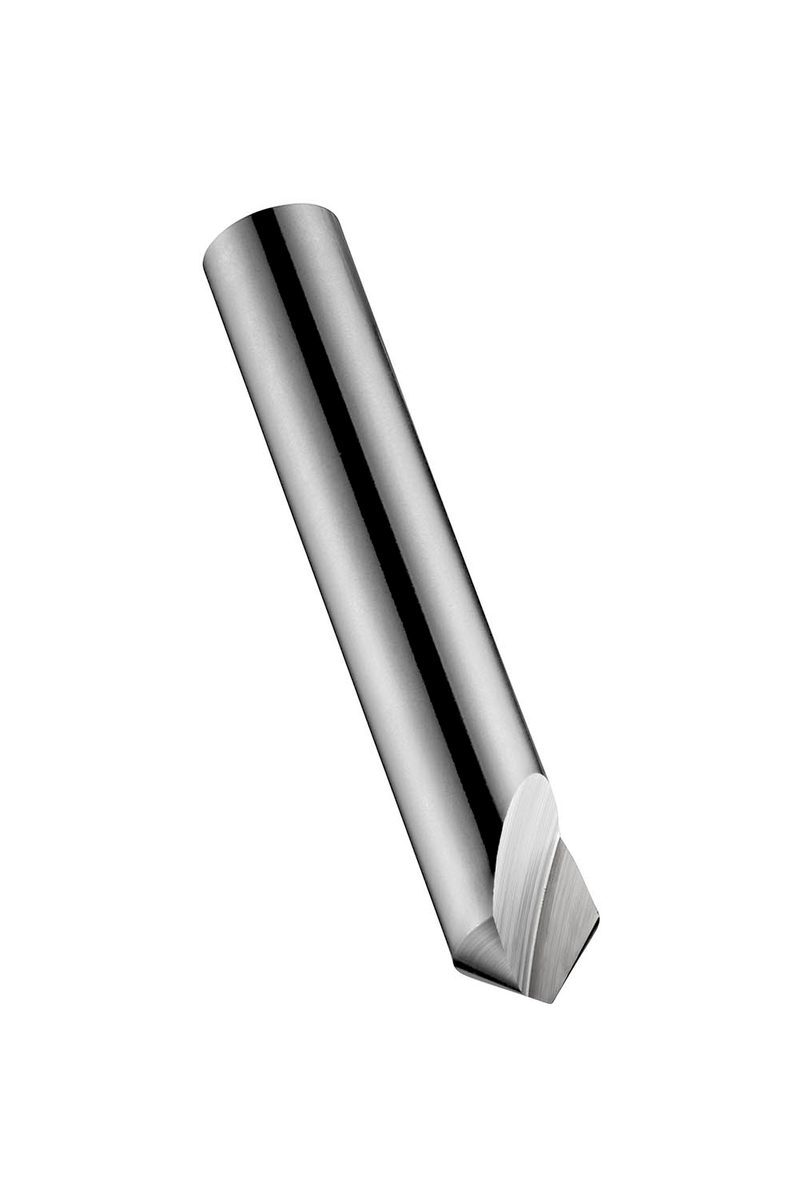

Fraise à chanfreiner 1 dent, angle de chanfreinage 90°, diamètre maximum 8,00 mm, longueur totale 50 mm et queue cylindrique 8 mm, selon la norme DORMER, pour réaliser un logement conique pour vis à tête fraisée ISO métrique, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone, des alliages de cuivre ou de laiton, corroyés

For more information about this product, click here

Identification
Ordering Code (ANSI)G1298.0
Product Name (ISO)G1298,0
GradeLumineux
Product Number5973330
Product FamilyG129

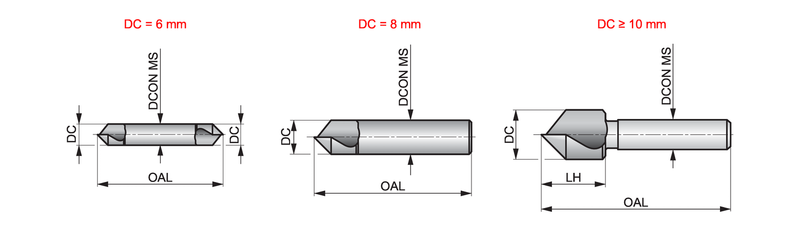

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149201
EAN7320760149201
File Type Download
G1298.0 — Line Drawing PDF Download
