UGC DOR5973334
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.39 CAD - $41.39 CAD
$41.39 CAD
$41.39 CAD - $41.39 CAD
$41.39 CAD

Vendu en lots de : 1

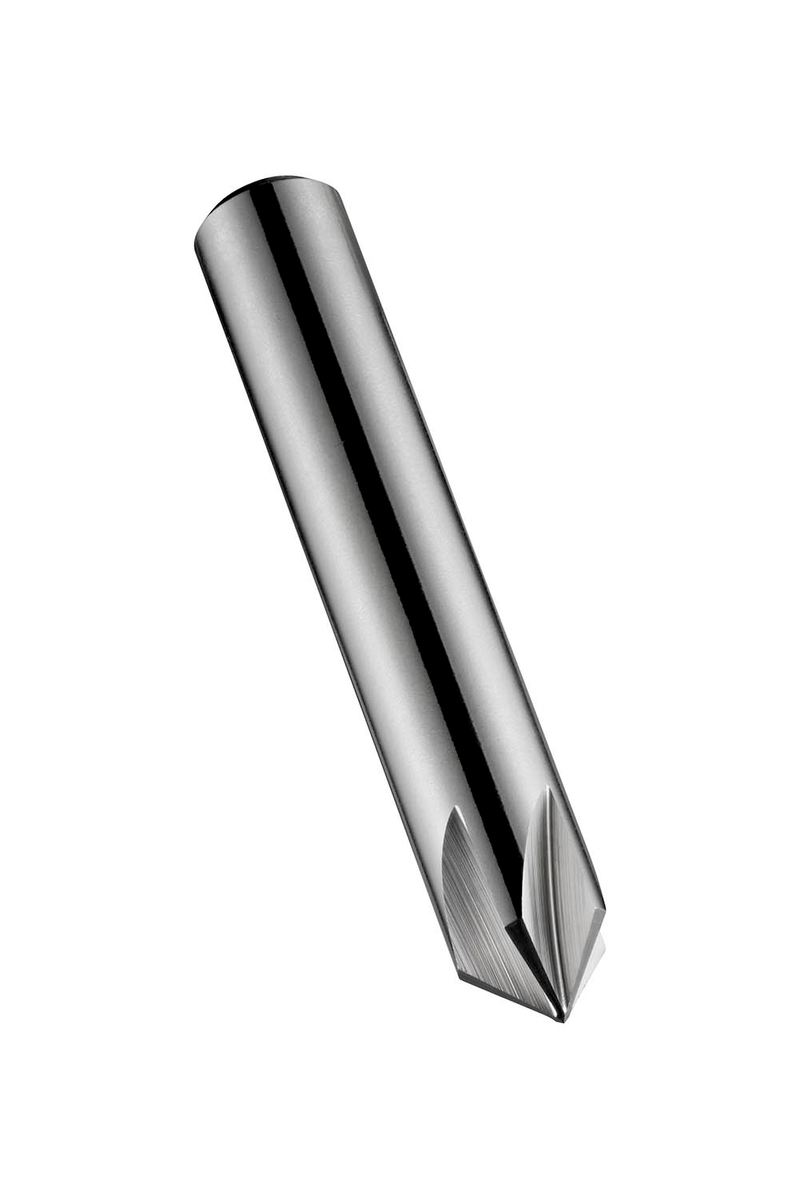

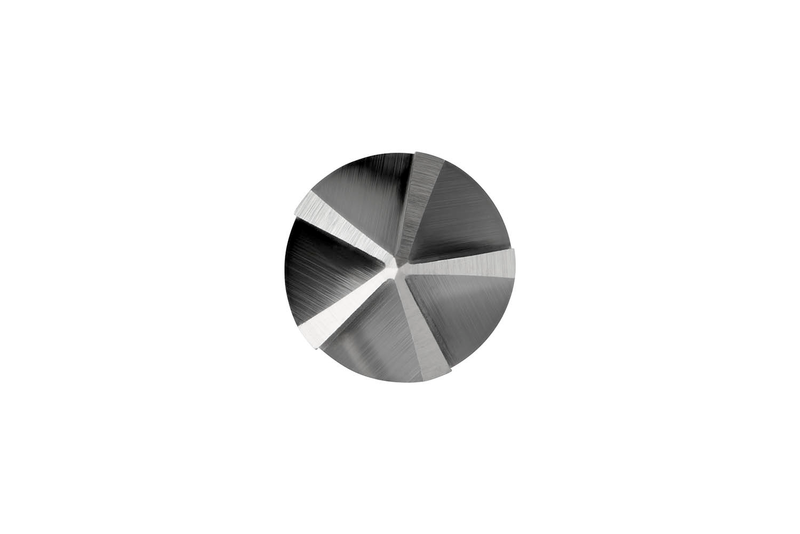

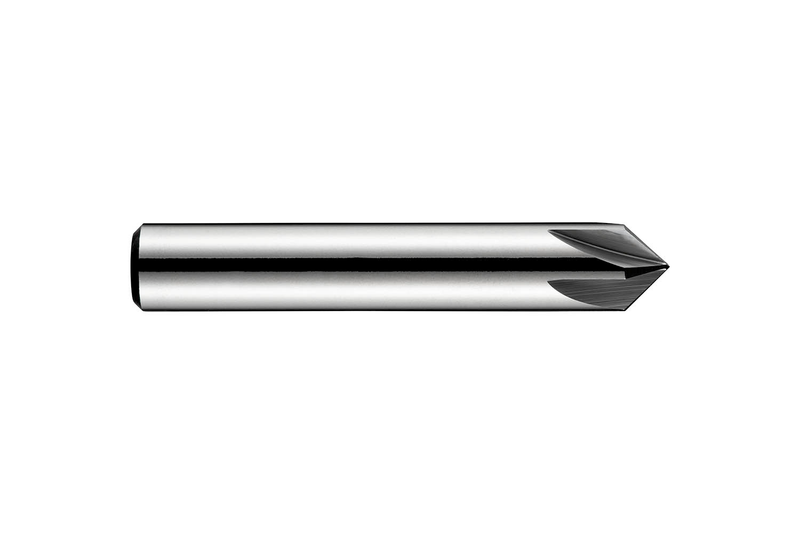

Fraise à chanfreiner à 5 goujures, à motif rose, angle de chanfreinage de 90°, diamètre maximal de 12,50 mm, longueur totale de 48 mm, longueur de tête de 15,5 mm et queue cylindrique de 8 mm, selon la norme DIN 335 A, pour la réalisation d'un logement conique pour vis à tête fraisée métriques ISO avec un diamètre de trou minimal de 2,00 mm, en HSS avec finition brillante standard pour l'usinage de l'acier à outils, de la fonte grise, de l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13212.5
GradeLumineux
Product Number5973334
Product FamilyG132

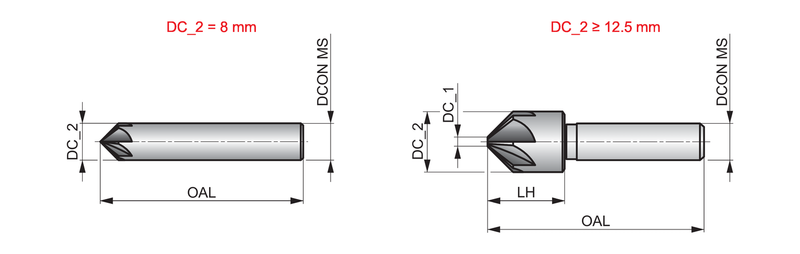

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)5
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 335 A
Reference Numbers
EDP Number108260
EAN7320760108260
File Type Download
G13212.5 — Line Drawing PDF Download
