UGC DOR5973340
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.49 CAD - $26.49 CAD
$26.49 CAD
$26.49 CAD - $26.49 CAD
$26.49 CAD

Vendu en lots de : 1

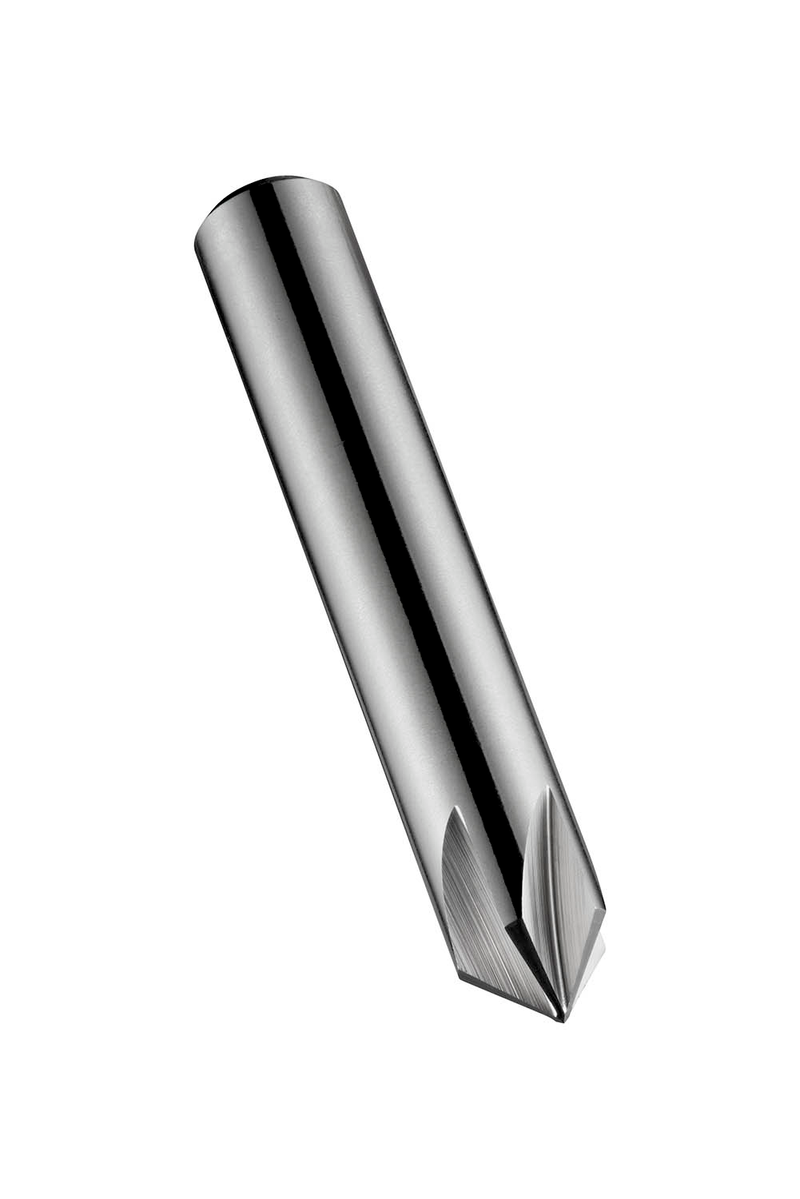

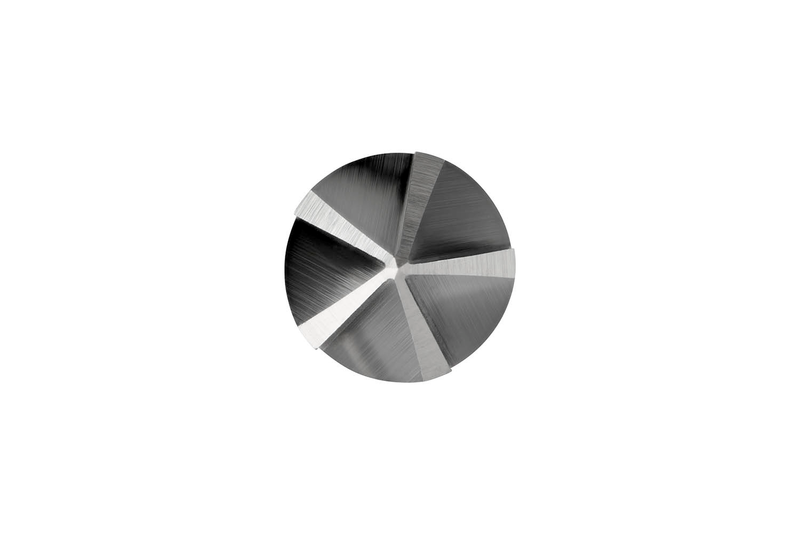

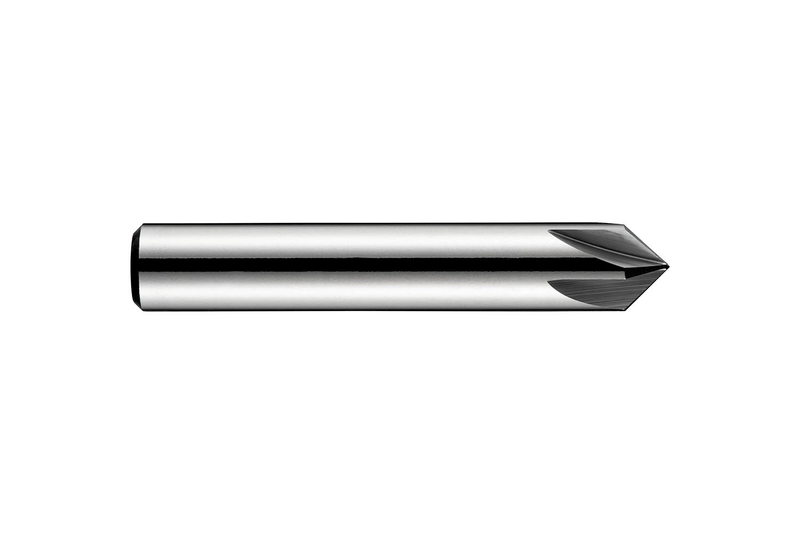

Fraise à chanfreiner à 5 goujures, motif rose, angle de chanfreinage de 90°, diamètre maximal de 8,00 mm, longueur totale de 48 mm et queue cylindrique de 8 mm, conforme à la norme DIN 335 A pour réaliser un logement conique pour les vis à tête fraisée métriques ISO, en HSS avec finition brillante standard pour l'usinage de l'acier à outils, de la fonte grise et de l'aluminium moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1328.0
GradeLumineux
Product Number5973340
Product FamilyG132

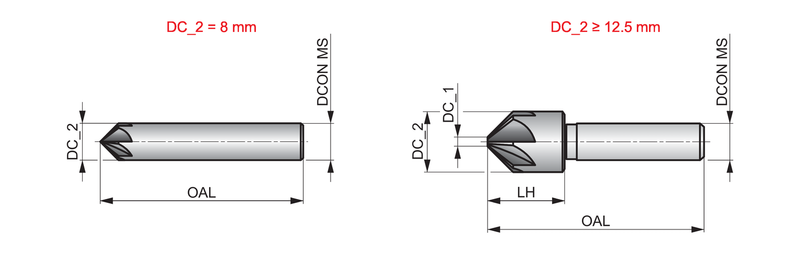

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)5
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 335 A
Reference Numbers
EDP Number108291
EAN7320760108291
File Type Download
G1328.0 — Line Drawing PDF Download
