UGC DOR5973341
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.56 CAD - $93.56 CAD
$93.56 CAD
$93.56 CAD - $93.56 CAD
$93.56 CAD

Vendu en lots de : 1

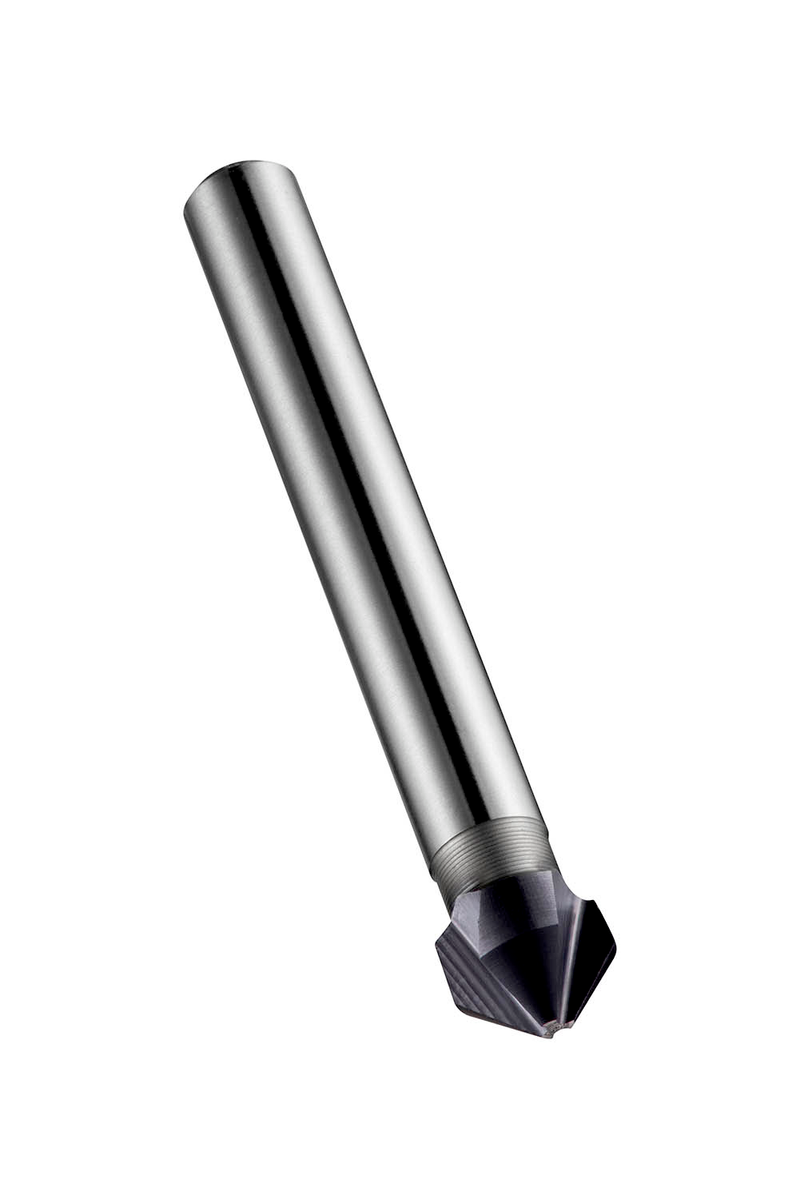

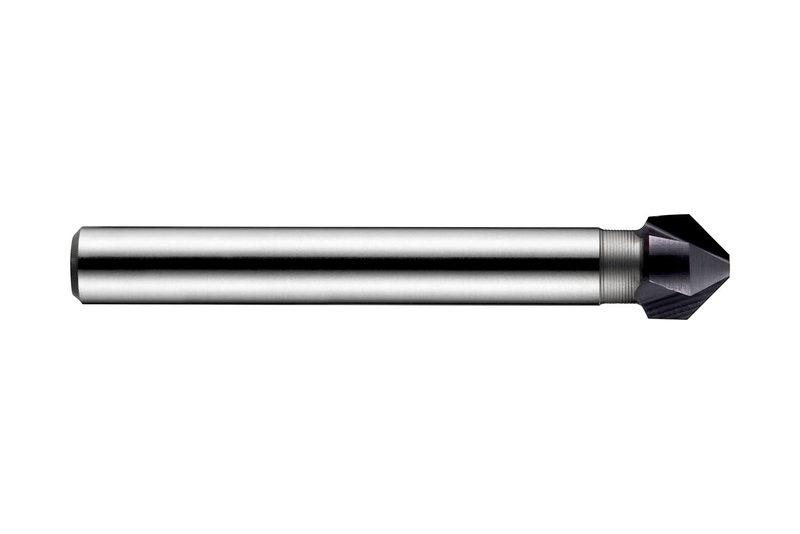

Fraise à chanfreiner 3 tailles, angle de chanfrein 90°, diamètre maximum 16,50 mm, longueur totale 60 mm, longueur de la tête 10,5 mm, et queue cylindrique 10 mm, selon la norme DIN 335 C pour produire un logement conique pour les vis à tête fraisée ISO métriques avec un diamètre de trou minimum de 3,20 mm, en HSS avec revêtement TiAlN standard pour l'usinage des aciers de décolletage, aciers au carbone, alliés et à outils, la fonte grise, malléable, nodulaire et à graphite compacté, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G56016.5
GradeTiAlN
Product Number5973341
Product FamilyG560

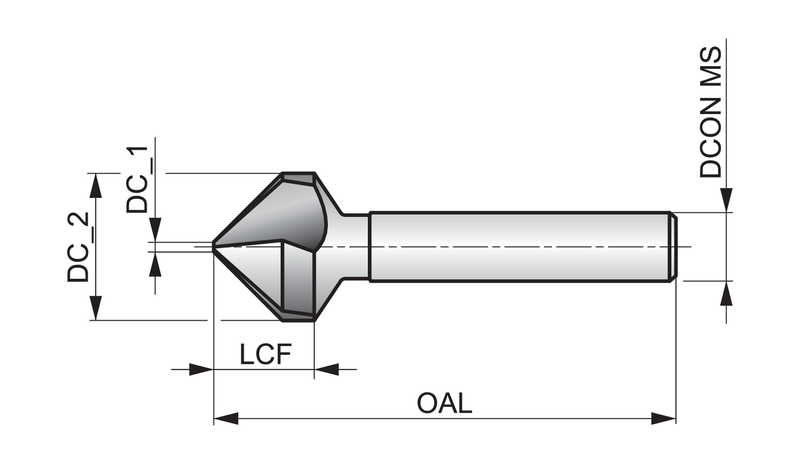

Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Flute Length — mm (LCF)10.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

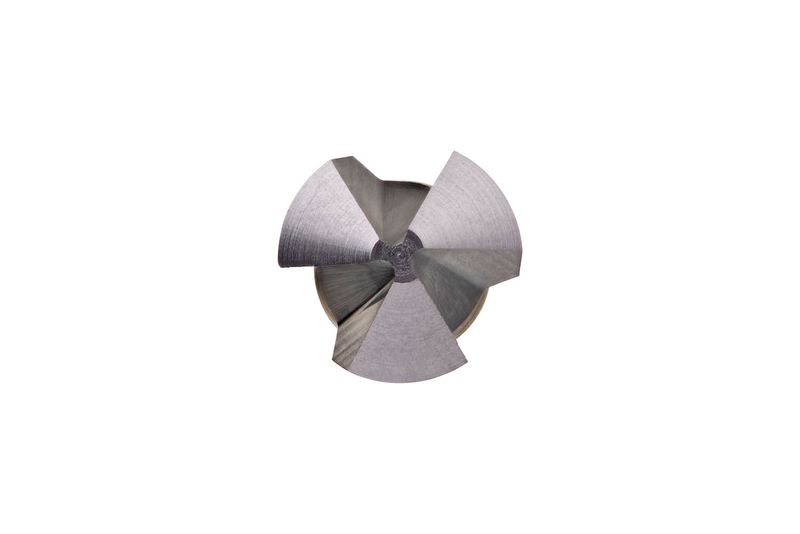

Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number109663
EAN7320760109663
File Type Download
G56016.5 — Line Drawing PDF Download
