UGC DOR5973350
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.99 CAD - $82.99 CAD
$82.99 CAD
$82.99 CAD - $82.99 CAD
$82.99 CAD

Vendu en lots de : 1

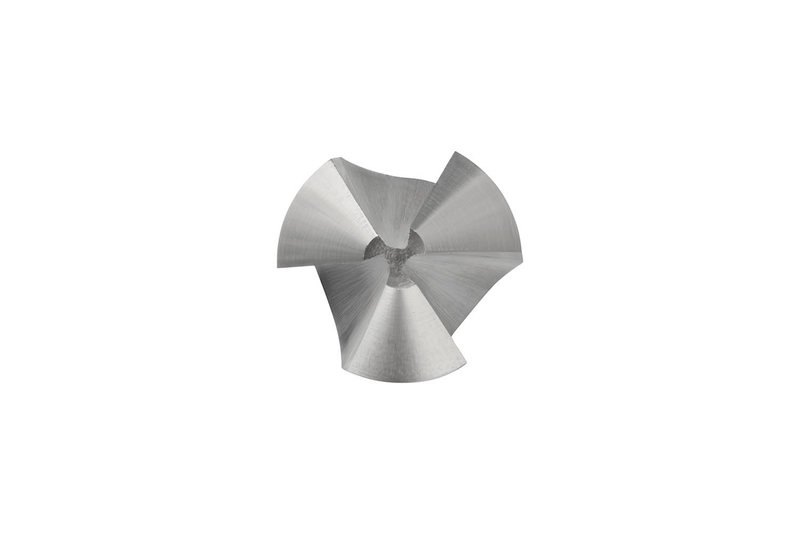

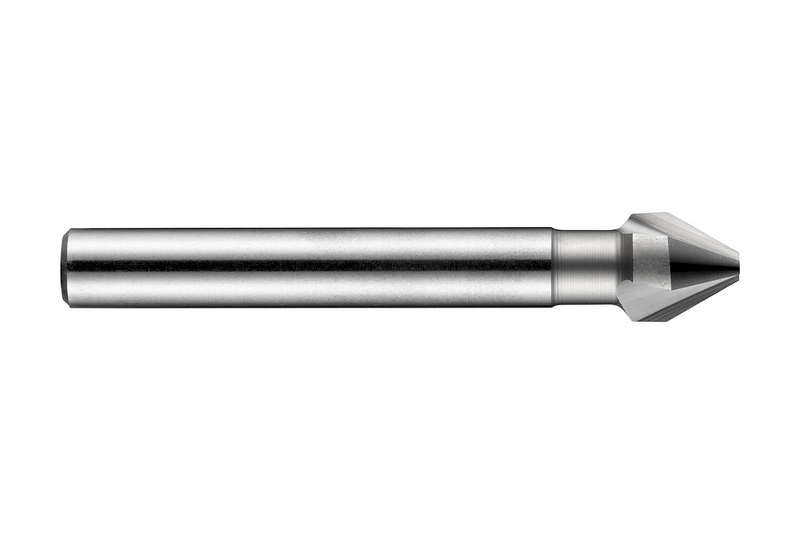

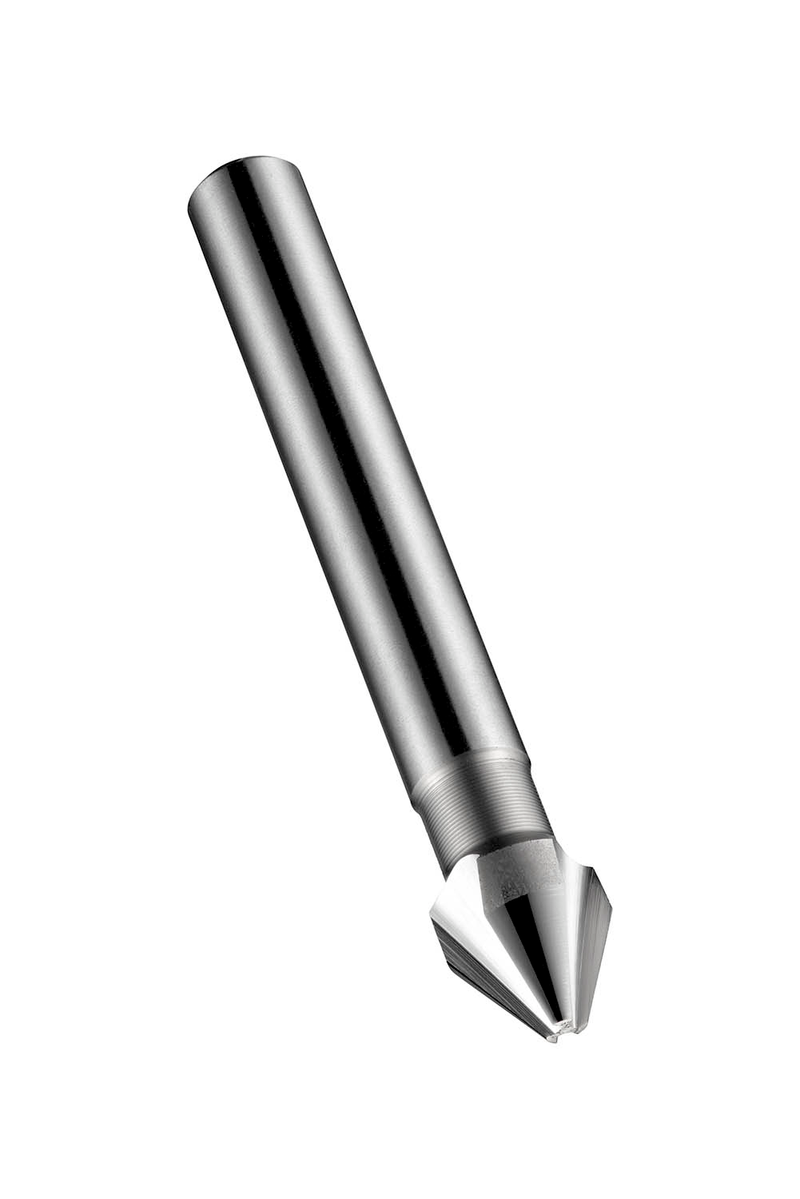

Embout fraise conique à 3 tranchants, angle de chanfreinage de 60°, diamètre maximal de 20,00 mm, avec une longueur totale de 67 mm, une longueur de tête de 17,5 mm et un corps cylindrique de 10 mm, conforme à la norme DIN 334 C, pour l'ébavurage et le chanfreinage de trous d'un diamètre minimal de 5,00 mm, en acier rapide HSS avec finition brillante standard, pour l'usinage d'acier à usinage libre et d'acier au carbone non allié, d'aluminium moulé, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13520.0
GradeLumineux
Product Number5973350
Product FamilyG135

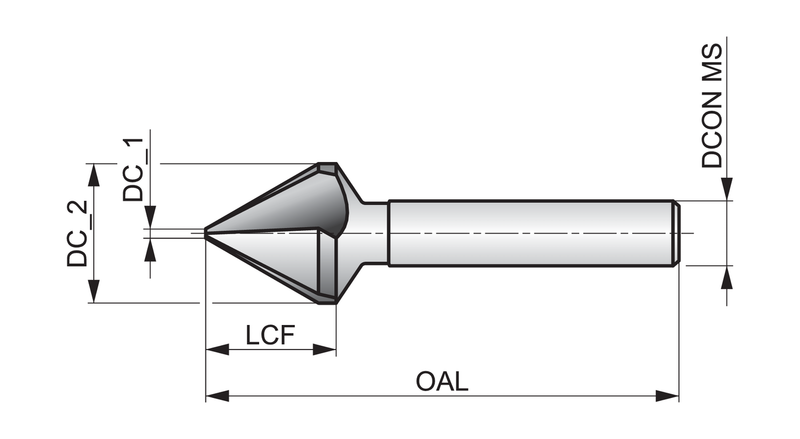

Dimensions
Overall Length — in (OAL)2.6378"
Overall Length — mm (OAL)67.0 mm
Flute Length — mm (LCF)17.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number108468
EAN7320760108468
File Type Download
G13520,0 — Line Drawing PDF Download
