UGC DOR5973352
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.64 CAD - $150.64 CAD
$150.64 CAD
$150.64 CAD - $150.64 CAD
$150.64 CAD

Vendu en lots de : 1

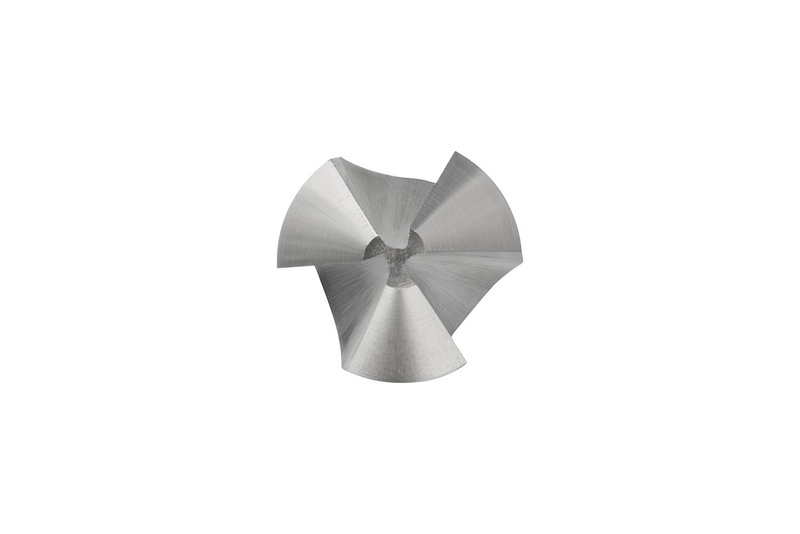

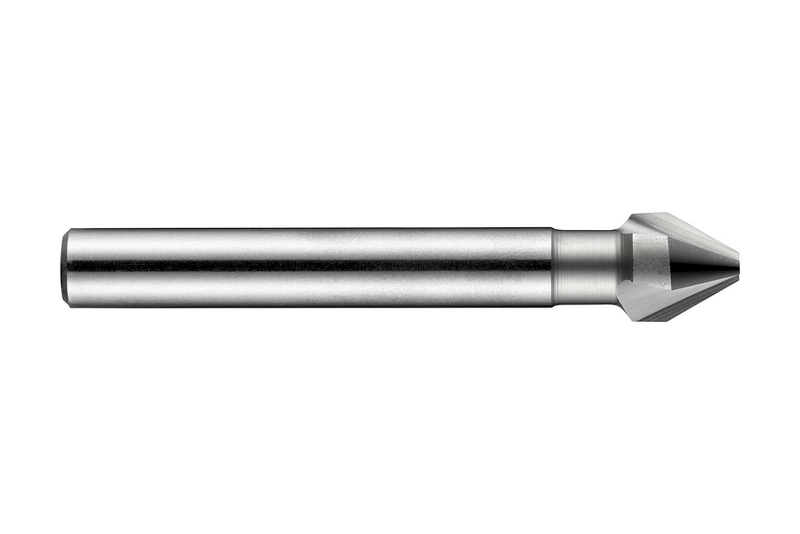

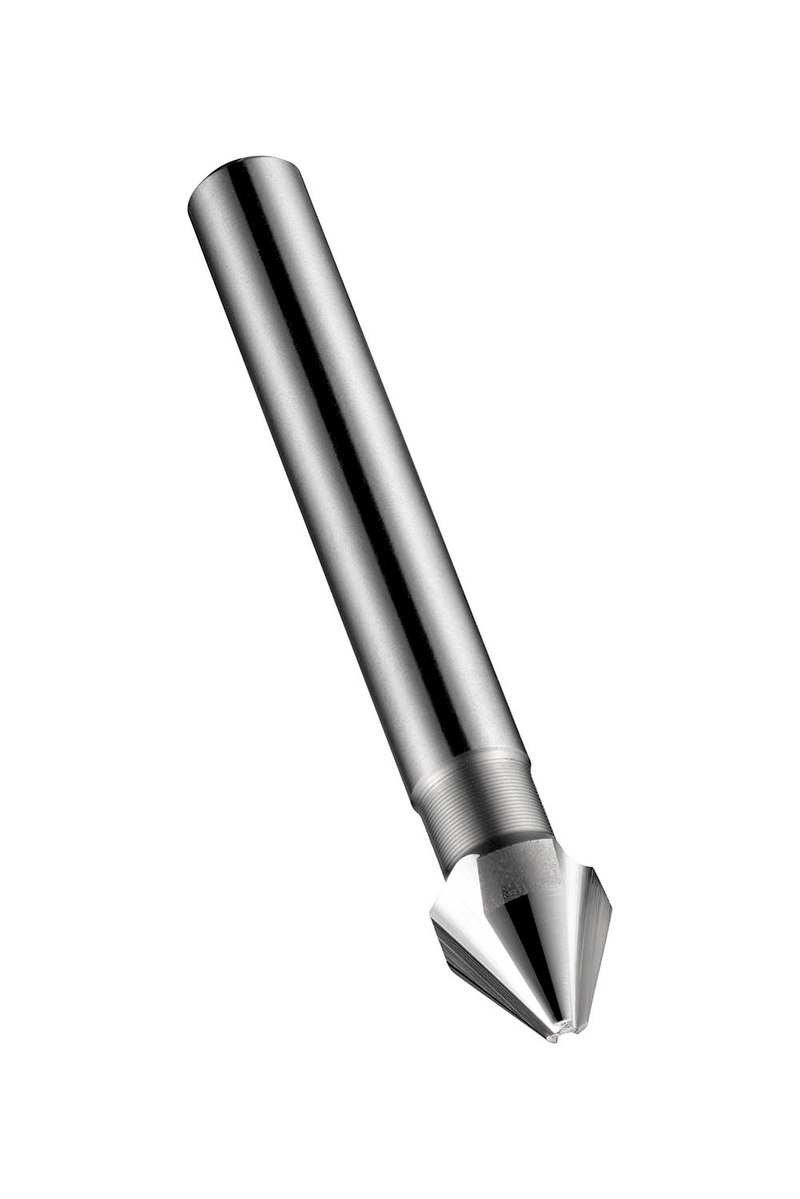

Fraise à chanfreiner trois-tailles, angle de chanfreinage de 60°, diamètre maximal de 25,00 mm avec une longueur totale de 71 mm et une longueur de tête de 20,5 mm et une queue cylindrique de 10 mm, selon la norme DIN 334 C pour l'ébavurage et le chanfreinage de trous avec un diamètre minimum de 6,30 mm, en acier rapide (HSS) avec finition brillante standard pour l'usinage de l'acier d'usinage facile et de l'acier au carbone non allié, de l'aluminium moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13525.0
GradeLumineux
Product Number5973352
Product FamilyG135

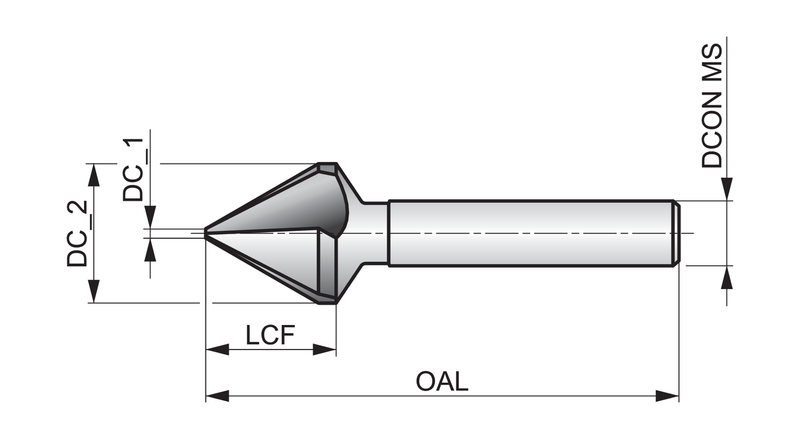

Dimensions
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Flute Length — mm (LCF)20.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number108475
EAN7320760108475
File Type Download
G13525.0 — Line Drawing PDF Download
