G1358.0
G1358.0
G1358.0
G1358.0

G1358.0

UGC DOR5973356
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.39 CAD - $29.39 CAD
$29.39 CAD
$29.39 CAD - $29.39 CAD
$29.39 CAD

Vendu en lots de : 1

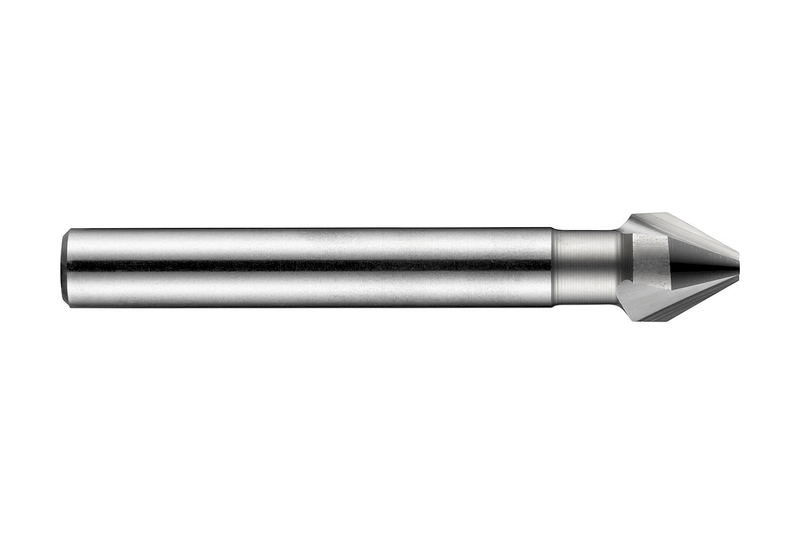

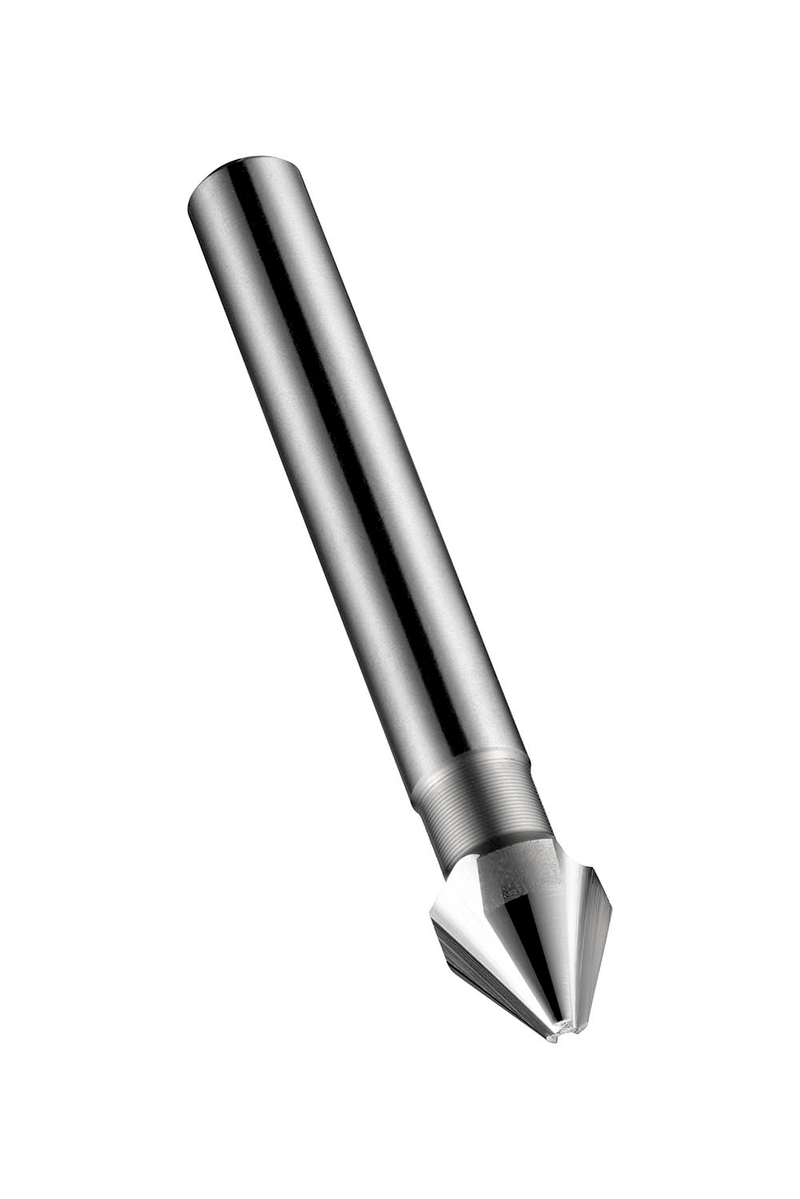

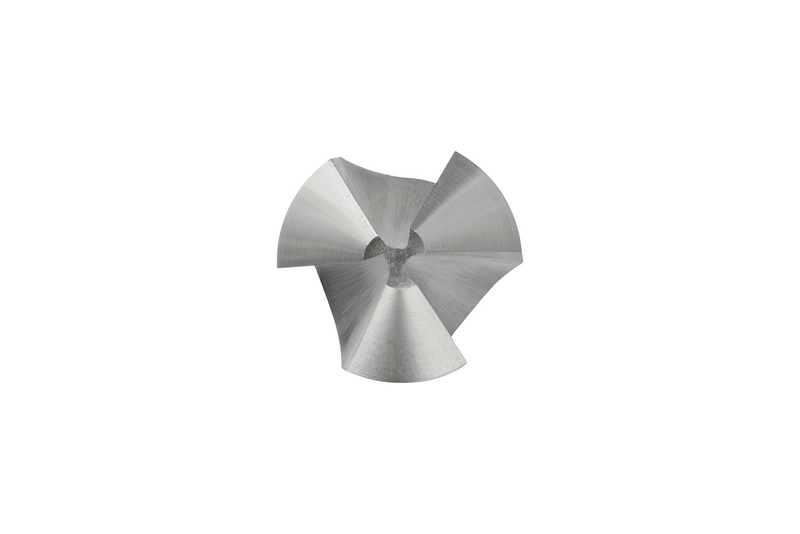

Fraise à chanfreiner 3 tailles, angle de chanfreinage 60°, diamètre maximum 8,00mm avec une longueur totale de 50mm et une longueur de tête de 8,5mm et un manche droit de 6mm, selon la norme DIN 334 C pour l'ébavurage et le chanfreinage de trous avec un diamètre de trou minimum de 2,00mm, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone, de l'aluminium moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1358.0
GradeLumineux
Product Number5973356
Product FamilyG135
Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)8.5 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number108499
EAN7320760108499
File Type Download

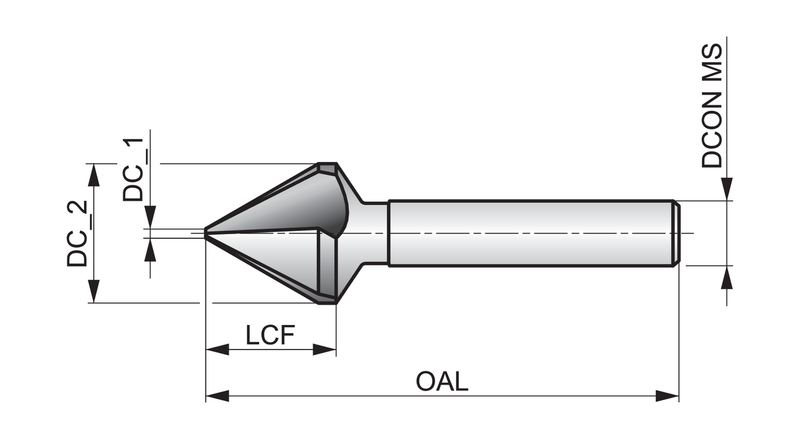

G1358.0 — Line Drawing PDF Download
