UGC DOR5973360
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.34 CAD - $31.34 CAD
$31.34 CAD
$31.34 CAD - $31.34 CAD
$31.34 CAD

Vendu en lots de : 1

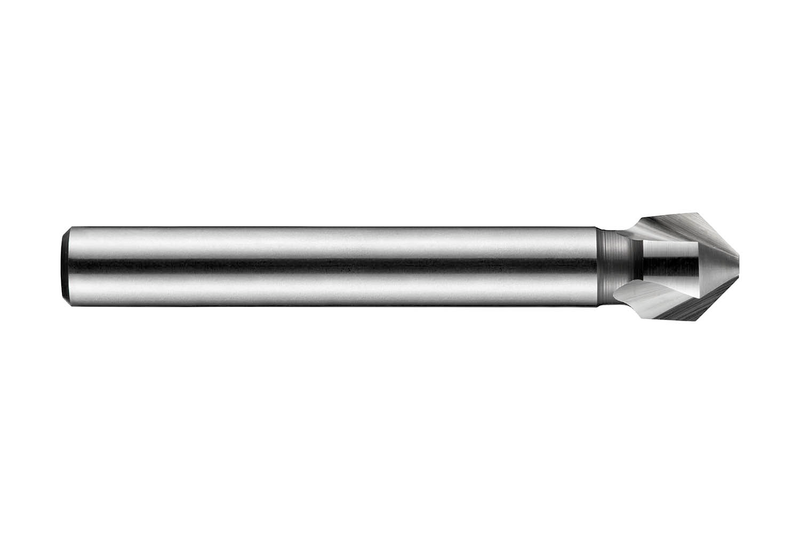

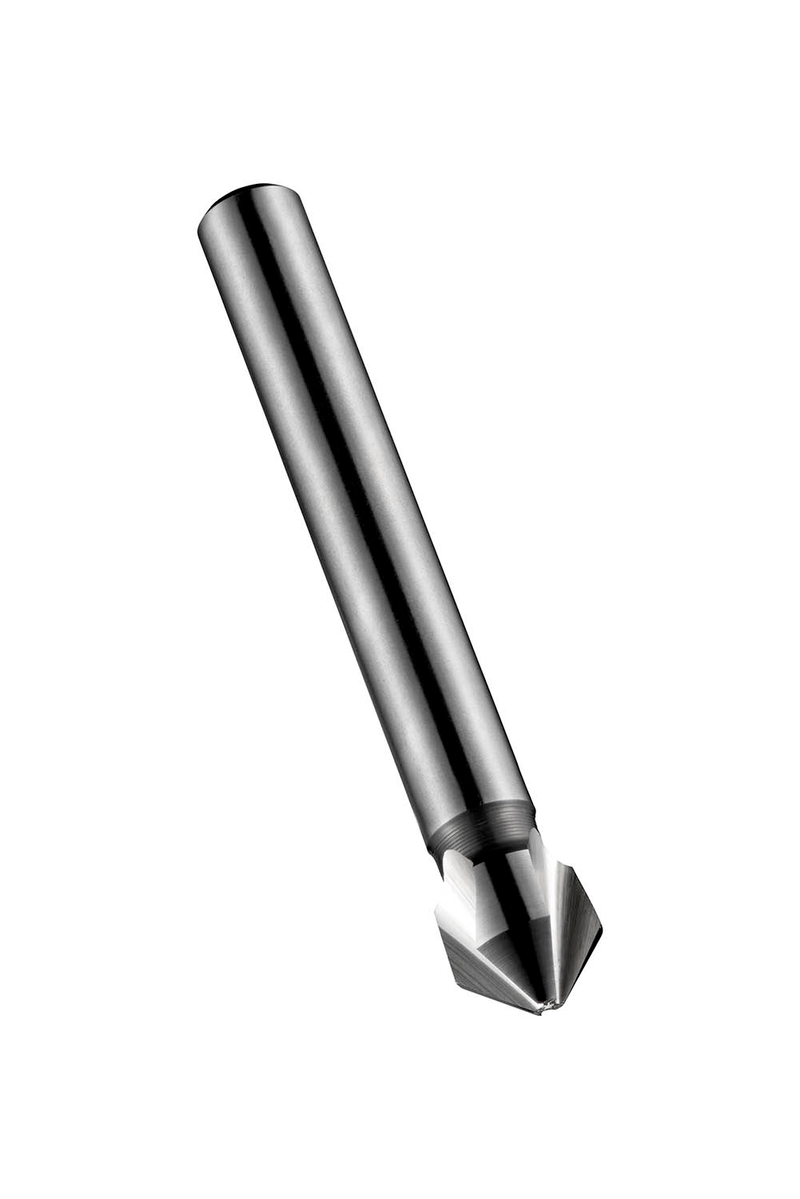

Fraise à chanfreiner trois-tailles, angle de chanfreinage de 90°, diamètre maximal 10,40mm, longueur totale 50mm, longueur de tête 7,6mm et queue cylindrique de 6mm, selon la norme DIN 335 C, pour produire un siège conique pour vis à tête fraisée ISO Métrique avec un diamètre de trou minimal de 2,50mm, HSS finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone et alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13610.4
GradeLumineux
Product Number5973360
Product FamilyG136

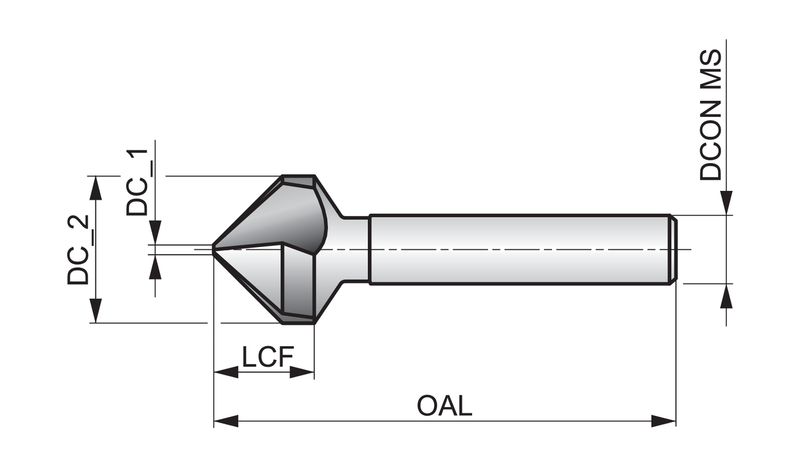

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)7.6 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

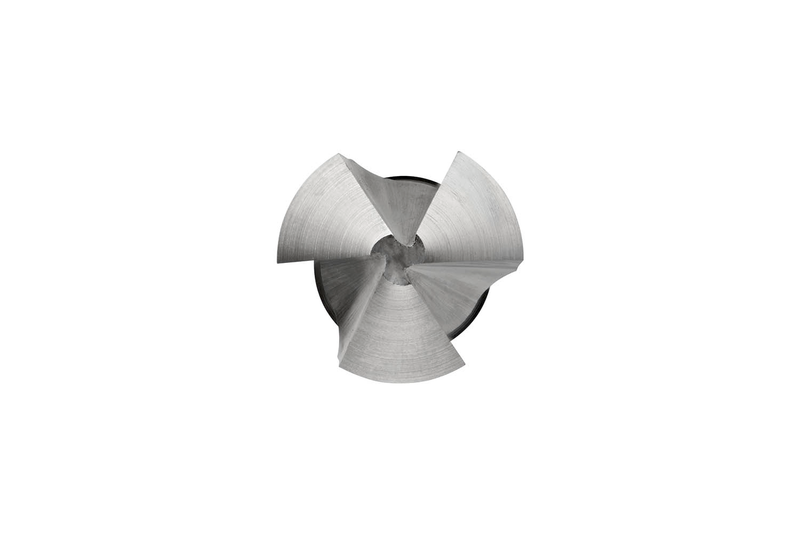

Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number108512
EAN7320760108512
File Type Download
G13610.4 — Line Drawing PDF Download
