UGC DOR5973377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.44 CAD - $91.44 CAD
$91.44 CAD
$91.44 CAD - $91.44 CAD
$91.44 CAD

Vendu en lots de : 1

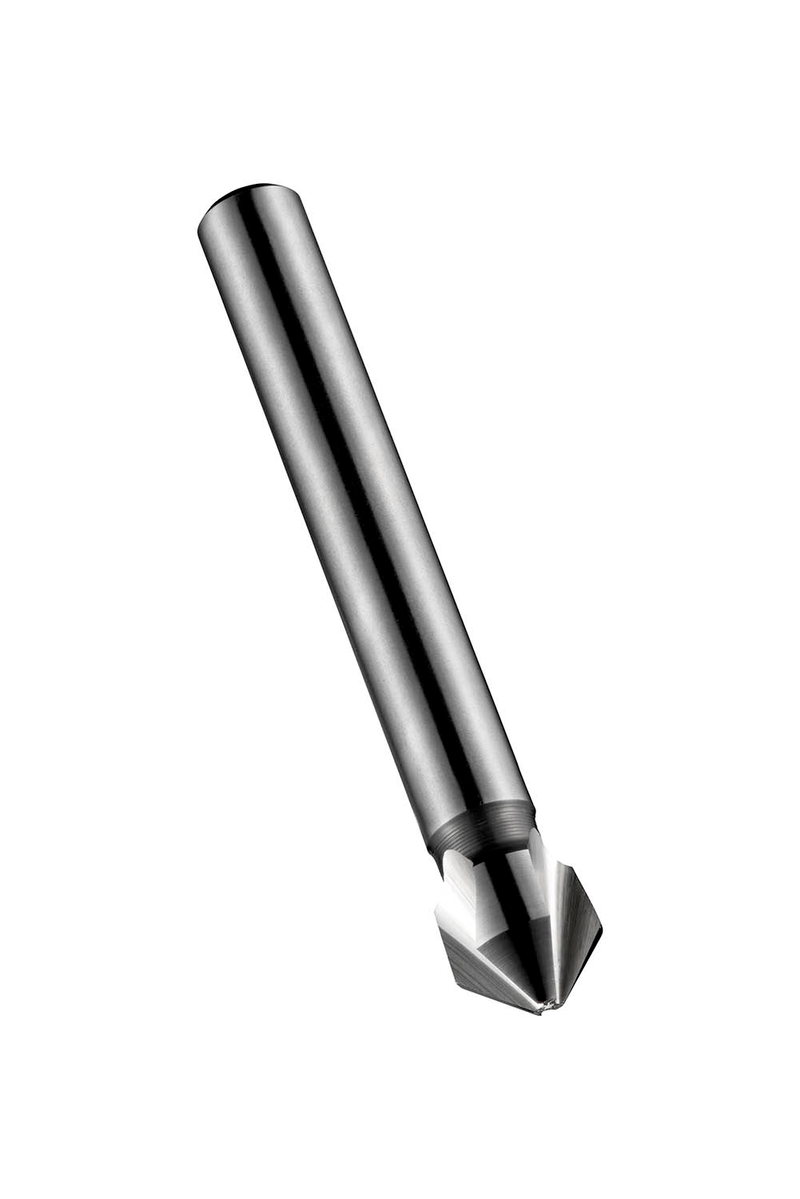

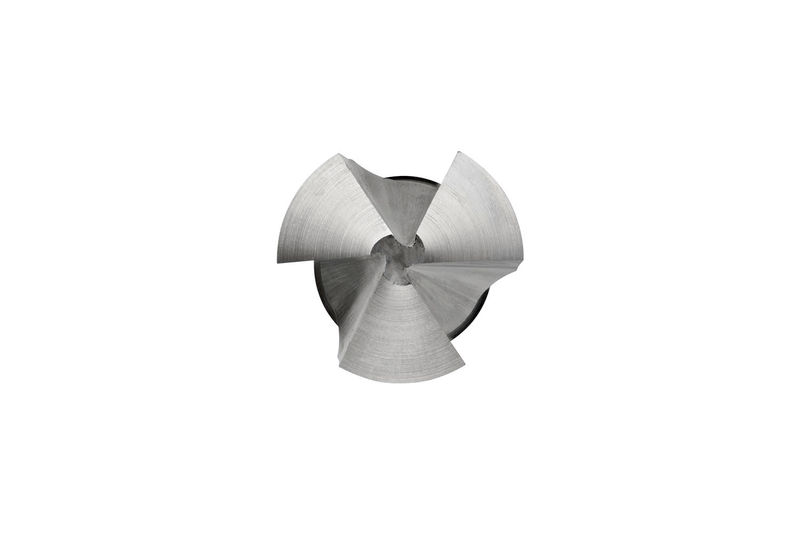

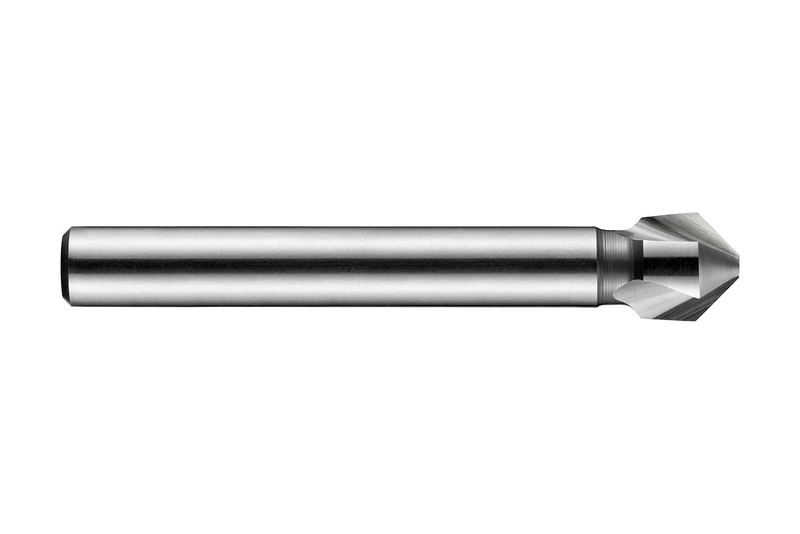

Fraise à chanfreiner à 3 lèvres, angle de chanfreinage de 90°, diamètre maximal de 23,00 mm, longueur totale de 67 mm, longueur de tête de 13,7 mm et queue cylindrique de 10 mm, selon la norme DIN 335 C, pour réaliser un logement conique pour vis métriques à tête fraisée avec un diamètre de trou minimal de 3,80 mm, en acier rapide (HSS) avec finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13623.0
GradeLumineux
Product Number5973377
Product FamilyG136

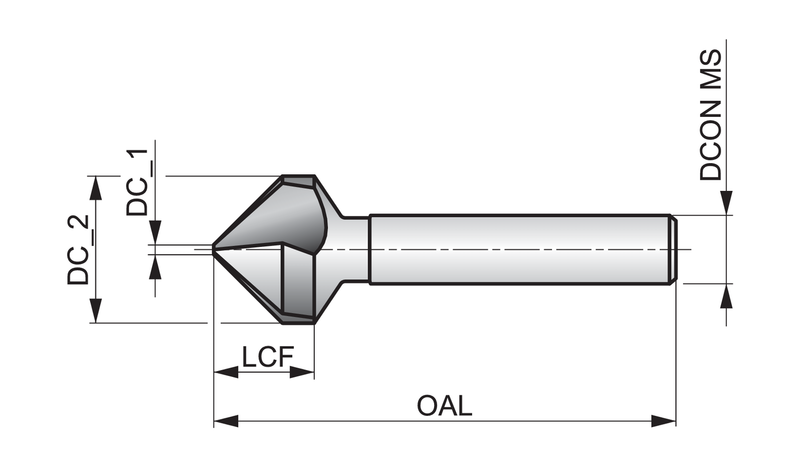

Dimensions
Overall Length — in (OAL)2.6378"
Overall Length — mm (OAL)67.0 mm
Flute Length — mm (LCF)13.7 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number108598
EAN7320760108598
File Type Download
G13623.0 — Line Drawing PDF Download
