UGC DOR5973400
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.91 CAD - $27.91 CAD
$27.91 CAD
$27.91 CAD - $27.91 CAD
$27.91 CAD

Vendu en lots de : 1

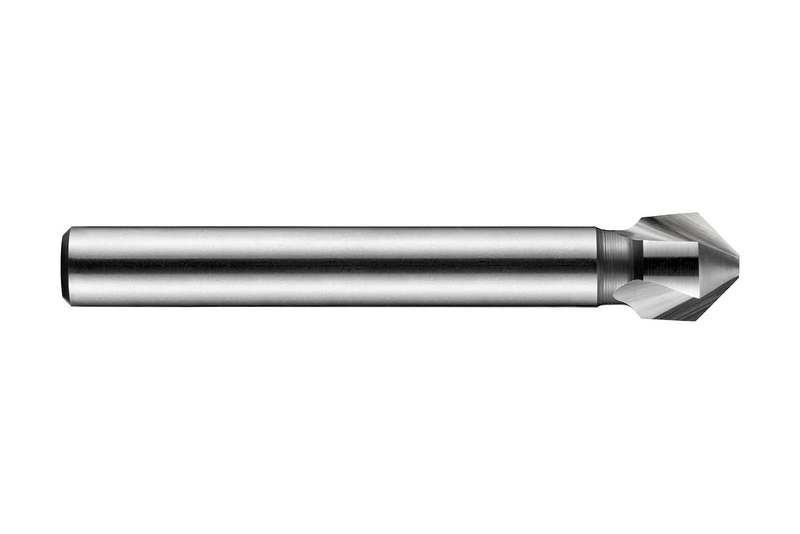

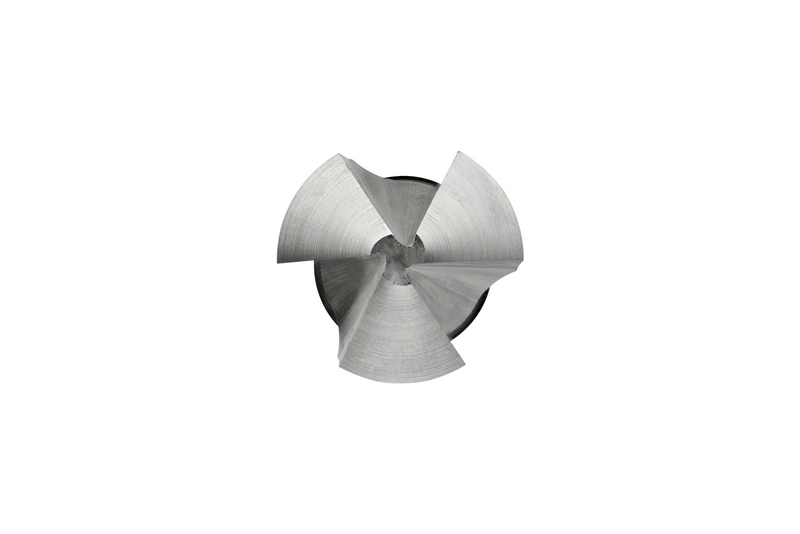

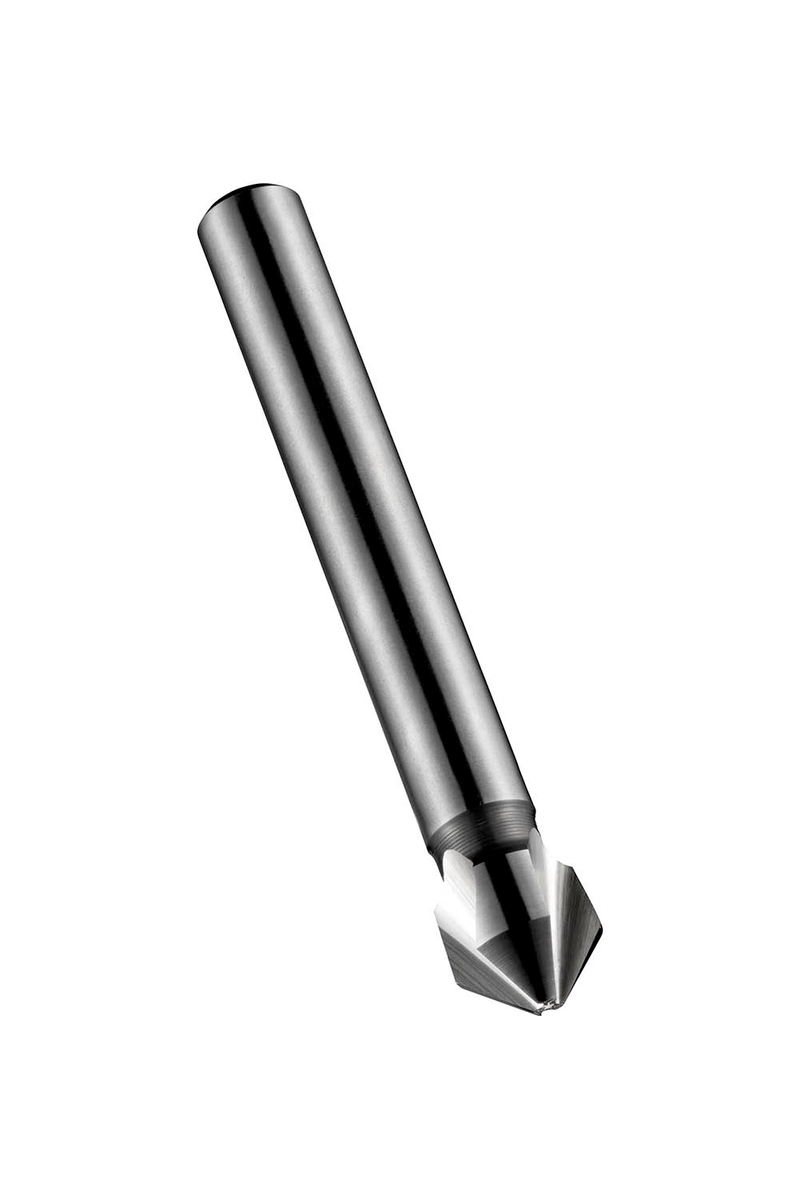

Fraise à chanfreiner 3 coupes, angle de chanfreinage 90°, diamètre maximal 6,30 mm, longueur totale 45 mm, longueur de tête 5,5 mm et queue cylindrique de 5 mm, selon la norme DIN 335 C pour produire un logement conique pour les vis à tête fraisée ISO Métrique avec un diamètre de trou minimal de 1,50 mm, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage, aciers au carbone et alliés, cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1366.3
GradeLumineux
Product Number5973400
Product FamilyG136

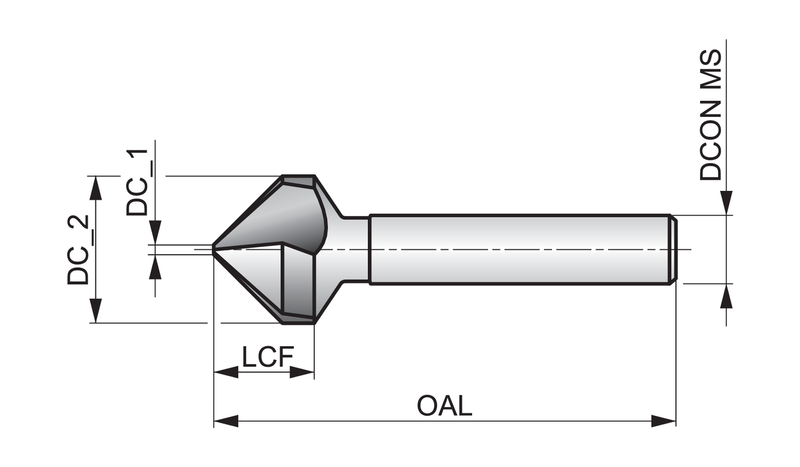

Dimensions
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Flute Length — mm (LCF)5.5 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number108703
EAN7320760108703
File Type Download
G1366.3 — Line Drawing PDF Download
