UGC DOR5973401
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.49 CAD - $28.49 CAD
$28.49 CAD
$28.49 CAD - $28.49 CAD
$28.49 CAD

Vendu en lots de : 1

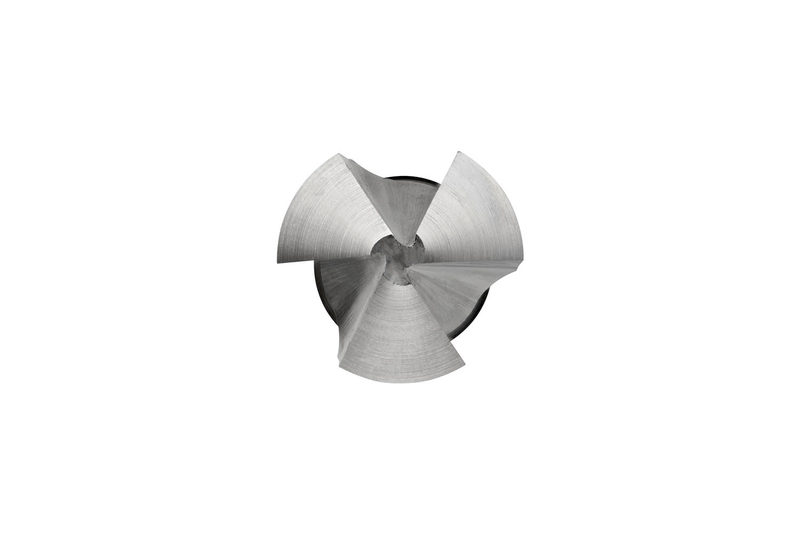

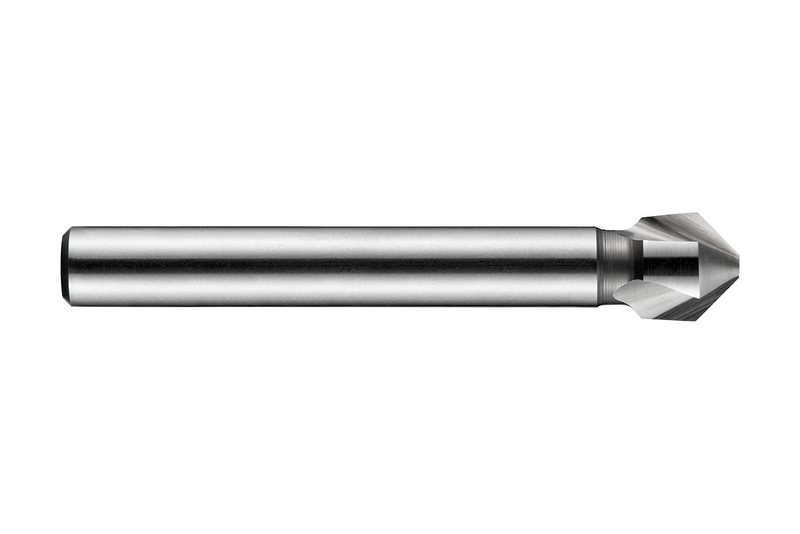

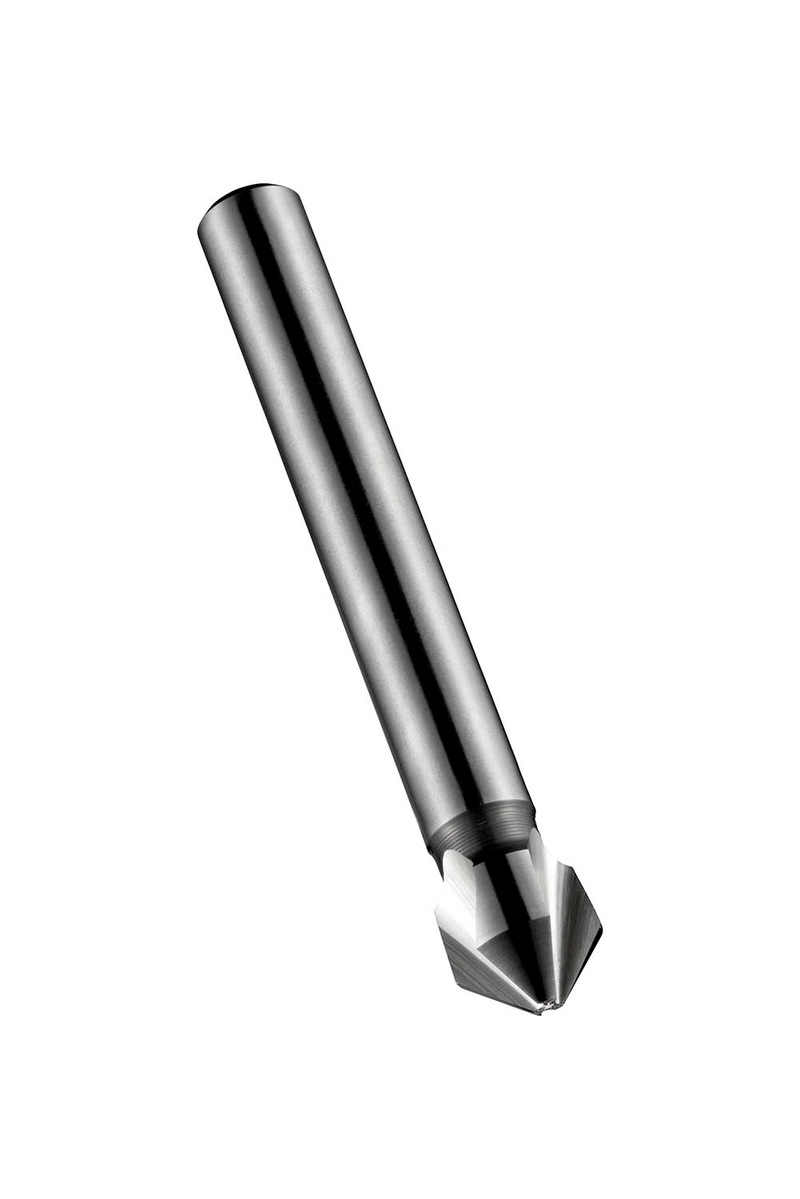

Fraises à chambrer à 3 dents, angle de chanfreinage de 90°, diamètre maximal de 7,00 mm, longueur totale de 50 mm, longueur de tête de 5,5 mm et queue droite de 6 mm, selon la norme DIN 335 C pour produire un siège conique pour vis à tête fraisée ISO métriques avec un diamètre de trou minimal de 1,80 mm, HSS avec finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone et alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1367.0
GradeLumineux
Product Number5973401
Product FamilyG136

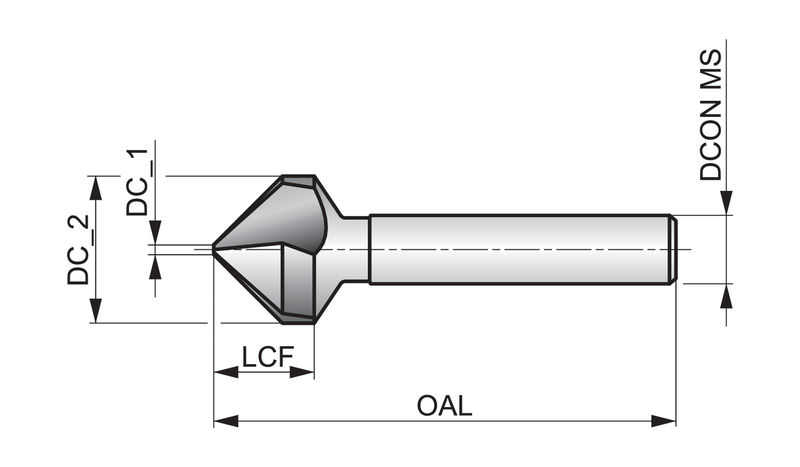

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)5.5 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number108710
EAN7320760108710
File Type Download
G1367.0 — Line Drawing PDF Download
