G12920.0
G12920.0
G12920.0
G12920.0

G12920.0

UGC DOR5973409
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.30 CAD - $70.30 CAD
$70.30 CAD
$70.30 CAD - $70.30 CAD
$70.30 CAD

Vendu en lots de : 1

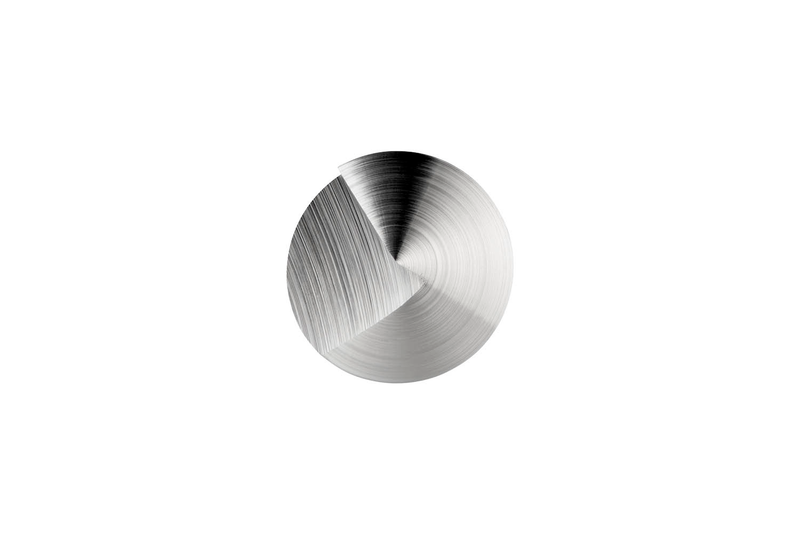

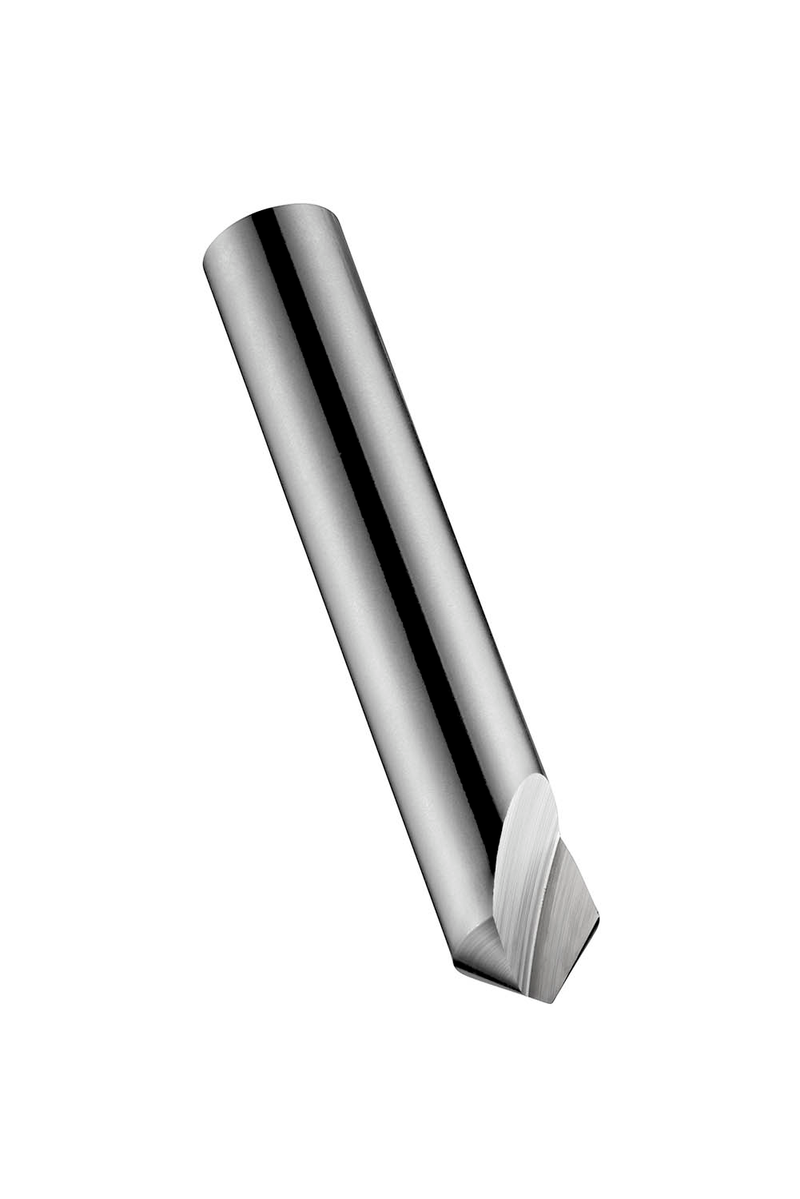

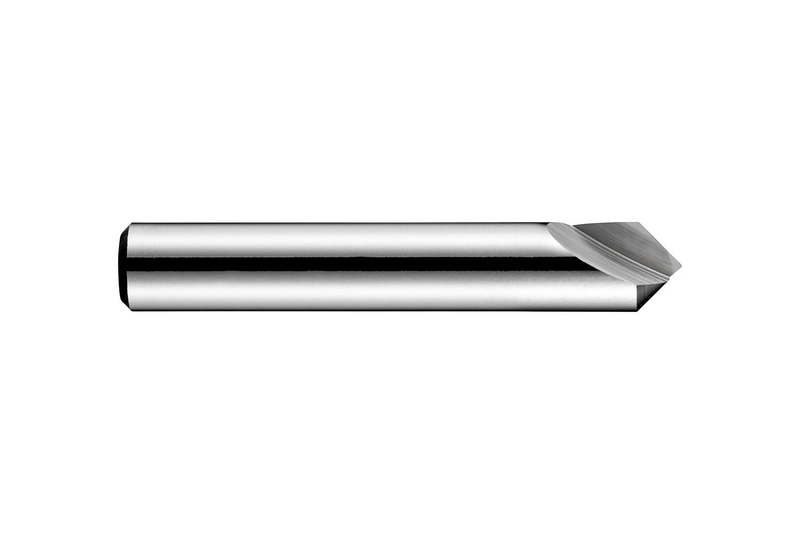

Fraises à chambrer et ébavurer 1 dent, angle à 90°, diamètre maximum 20.00mm, longueur totale 60mm, longueur de coupe 24mm et queue cylindrique de 10mm, selon le standard DORMER pour la réalisation d'un logement conique pour les vis à tête fraisée métriques ISO, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone non alliés, des aciers forgés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12920.0
GradeLumineux
Product Number5973409
Product FamilyG129

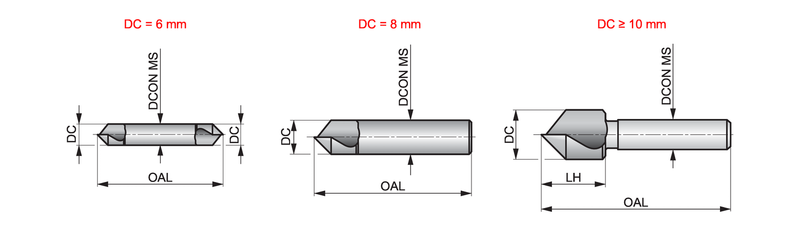

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)90°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149249
EAN7320760149249
File Type Download
G12920.0 — Line Drawing PDF Download
