G12925.0
G12925.0
G12925.0
G12925.0

G12925.0

UGC DOR5973410
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.39 CAD - $127.39 CAD
$127.39 CAD
$127.39 CAD - $127.39 CAD
$127.39 CAD

Vendu en lots de : 1

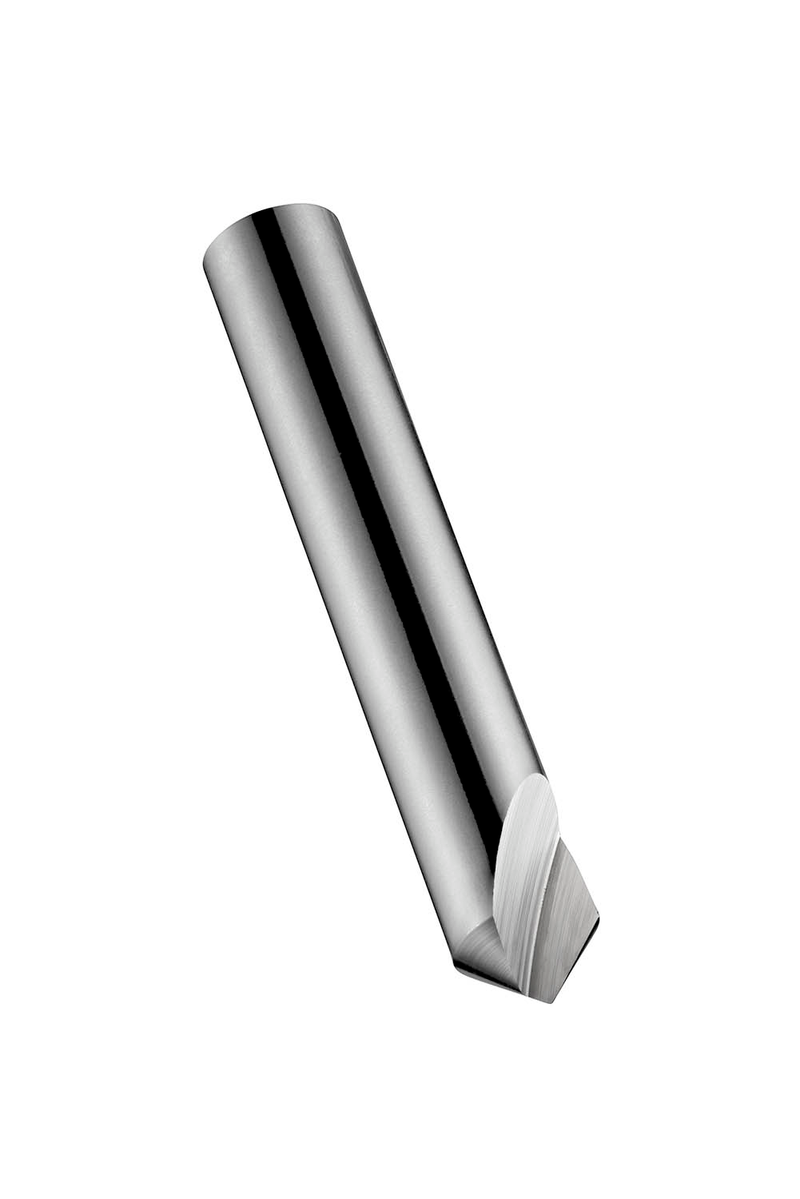

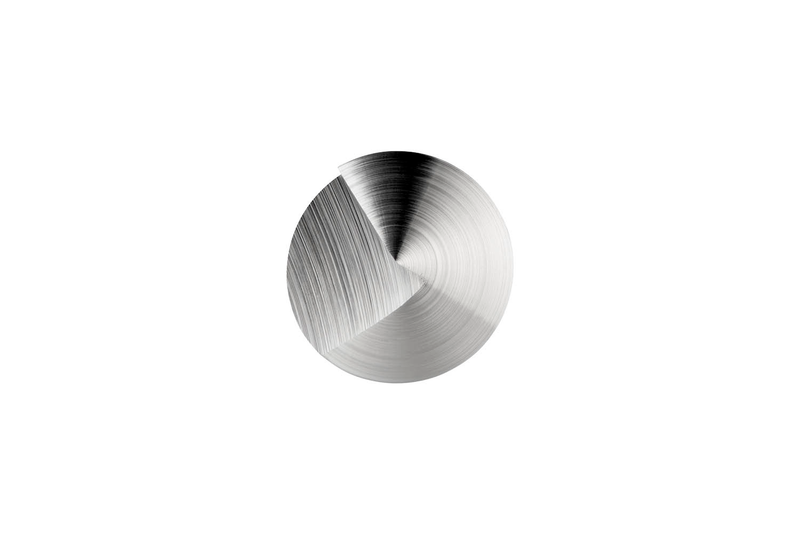

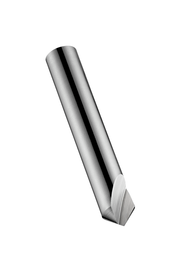

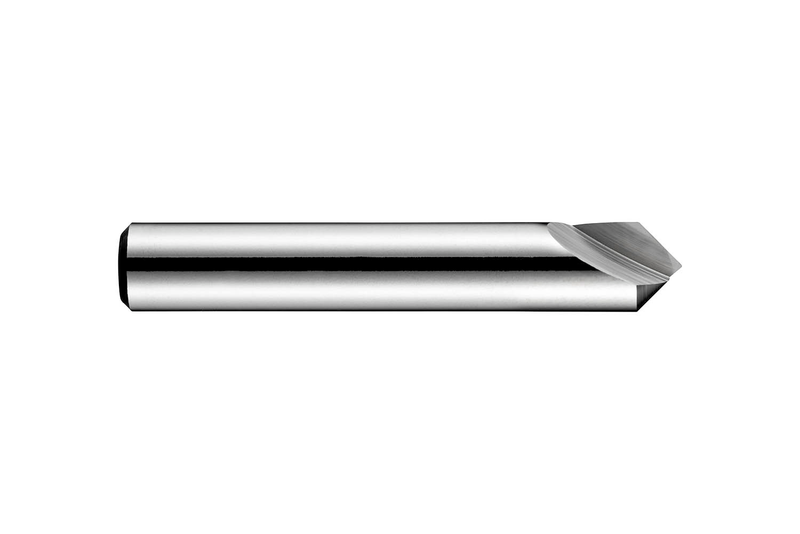

Alésoir conique à 1 lèvre, angle de chanfreinage de 90°, diamètre maximum de 25,00 mm avec une longueur totale de 75 mm, une longueur de tête de 25 mm et un corps cylindrique de 12 mm, selon la norme DORMER pour réaliser un logement conique pour les vis à tête fraisée ISO métriques, HSS avec finition brillante standard pour l'usinage de l'acier doux et de l'acier au carbone non allié, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)G12925,0
Product Name (ISO)G12925.0
GradeLumineux
Product Number5973410
Product FamilyG129
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)1
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149256
EAN7320760149256
File Type Download

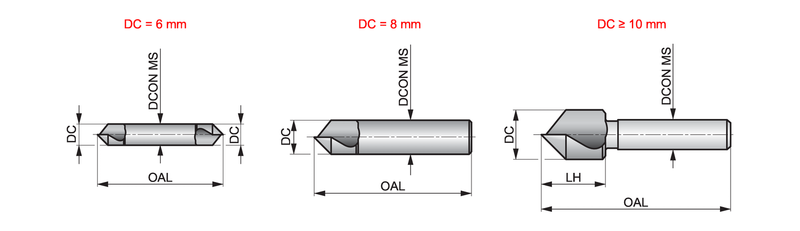

G12925.0 — Line Drawing PDF Download
