EP10M10X1.0
EP10M10X1.0
EP10M10X1.0

EP10M10X1.0

UGC DOR5973458
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.71 CAD - $53.71 CAD
$53.71 CAD
$53.71 CAD - $53.71 CAD
$53.71 CAD

Vendu en lots de : 1

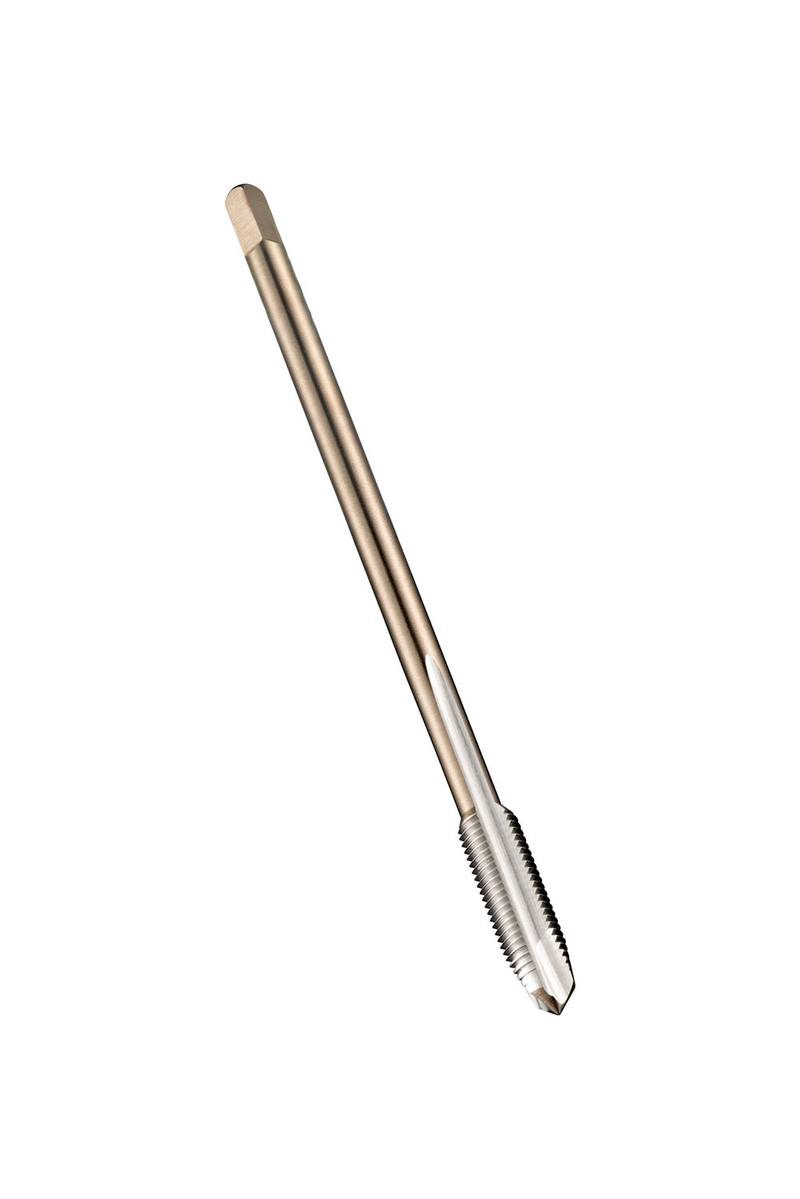

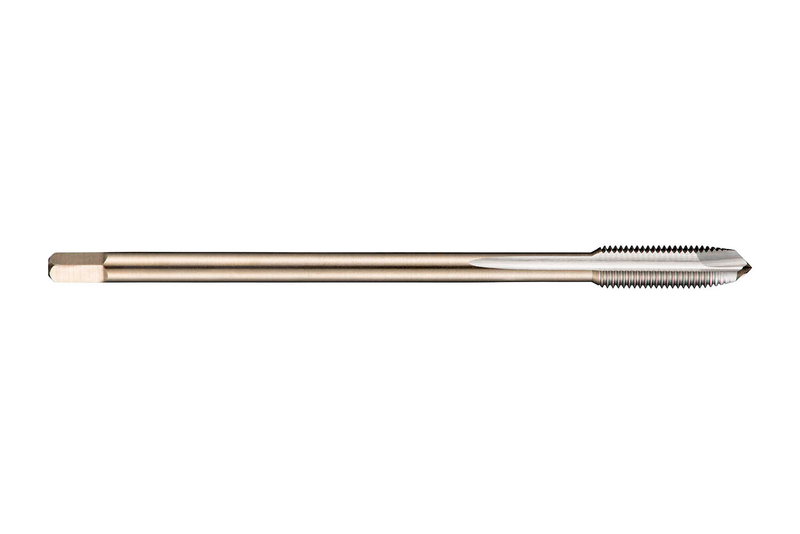

Taraud machine à pointe spirale et entrée B (3.5-5xP) pour filetage métrique ISO M10 au pas de 1.00 mm et tolérance 6H, dimensions selon DIN 374 avec queue de 7.0mm et carré d'entraînement de 5.5mm, en HSS-E (acier rapide fritté) avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage, aciers au carbone, aciers alliés, et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP10M10X1.0
GradeLumineux
Product Number5973458
Product FamilyEP10

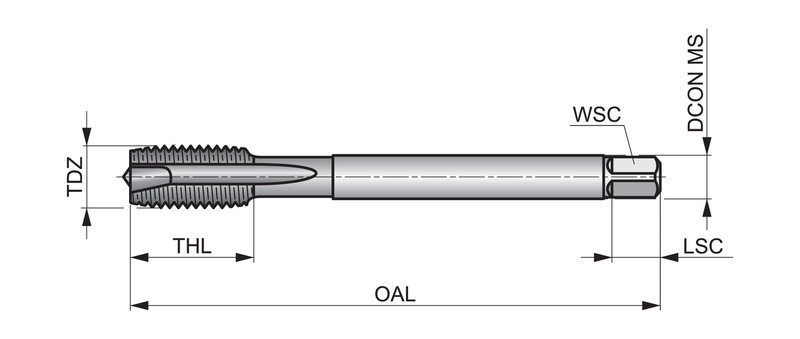

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137406
EAN7320760137406
File Type Download
EP10M10X1.0 — Line Drawing PDF Download
