EP10M12X1.5
EP10M12X1.5
EP10M12X1.5

EP10M12X1.5

UGC DOR5973466
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.01 CAD - $61.01 CAD
$61.01 CAD
$61.01 CAD - $61.01 CAD
$61.01 CAD

Vendu en lots de : 1

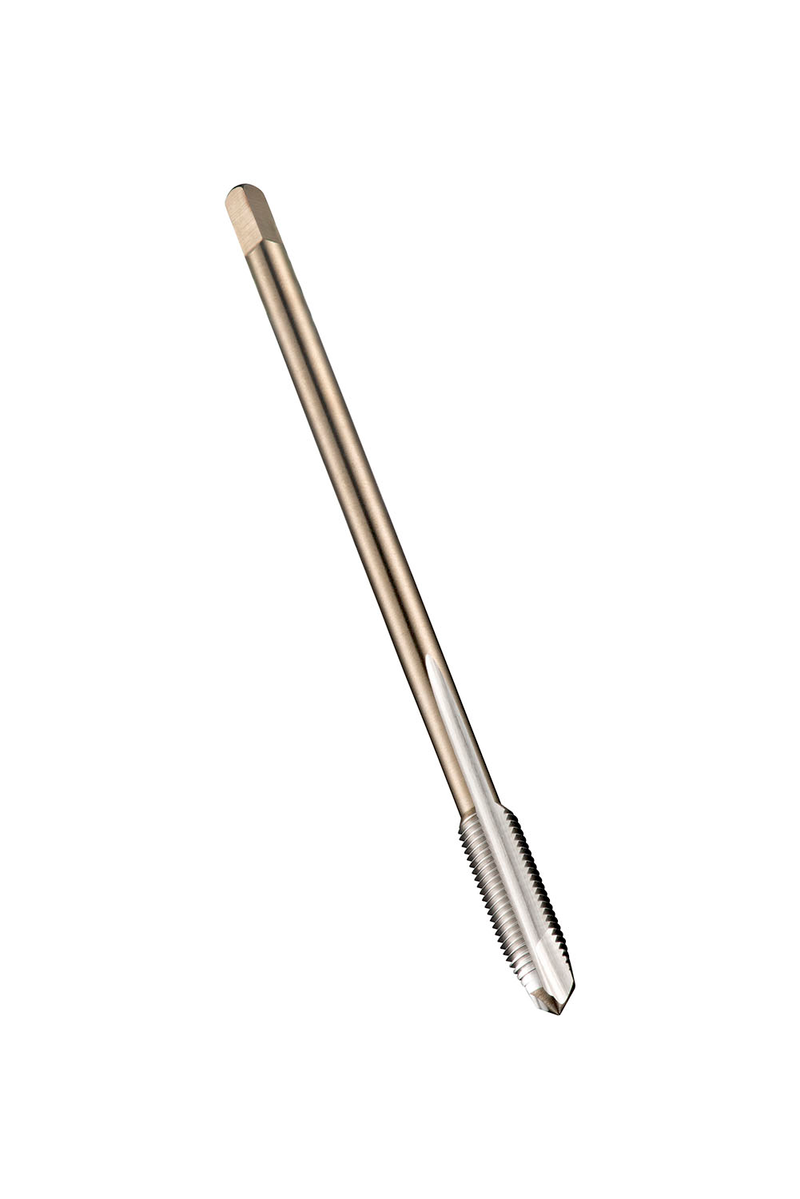

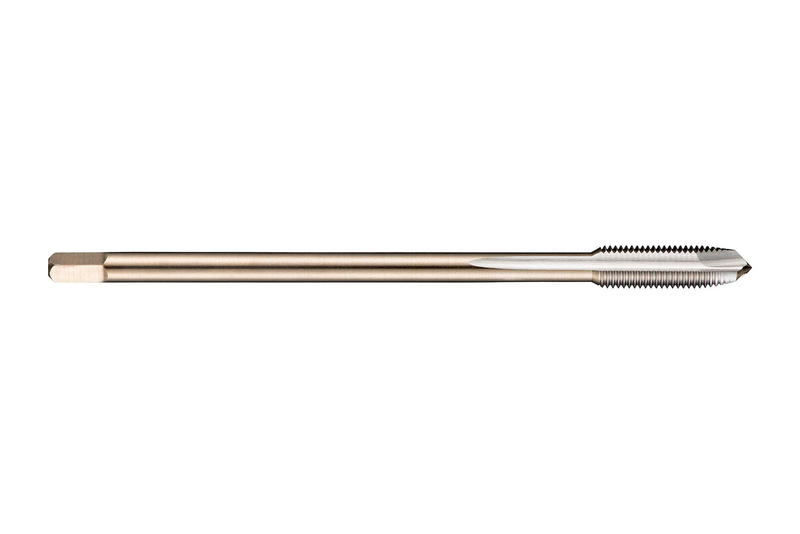

Taraud machine à pointe spirale et entrée B (3,5-5 filets) pour filet métrique fin ISO M12 au pas de 1,50 mm et tolérance 6H, dimensions conformes à la norme DIN 374 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage, les aciers au carbone, les aciers alliés et les aluminiums corroyés ou coulés

For more information about this product, click here

Identification
Ordering Code (ANSI)EP10M12X1.5
Product Name (ISO)EP10M12X1,5
GradeLumineux
Product Number5973466
Product FamilyEP10

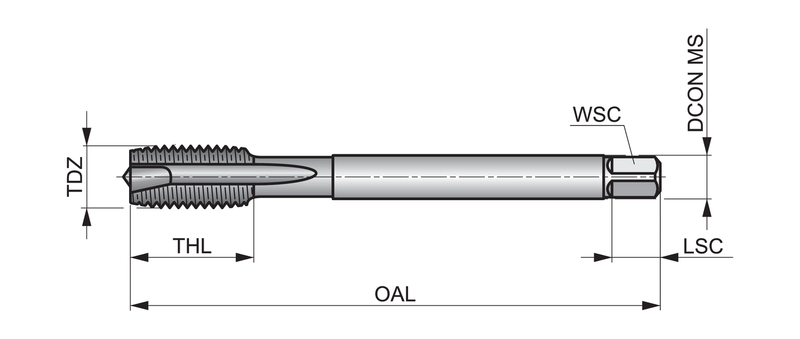

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137444
EAN7320760137444
File Type Download
EP10M12X1.5 — Line Drawing PDF Download
