EP10M14X1.25
EP10M14X1.25
EP10M14X1.25

EP10M14X1.25

UGC DOR5973470
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.64 CAD - $100.64 CAD
$100.64 CAD
$100.64 CAD - $100.64 CAD
$100.64 CAD

Vendu en lots de : 1

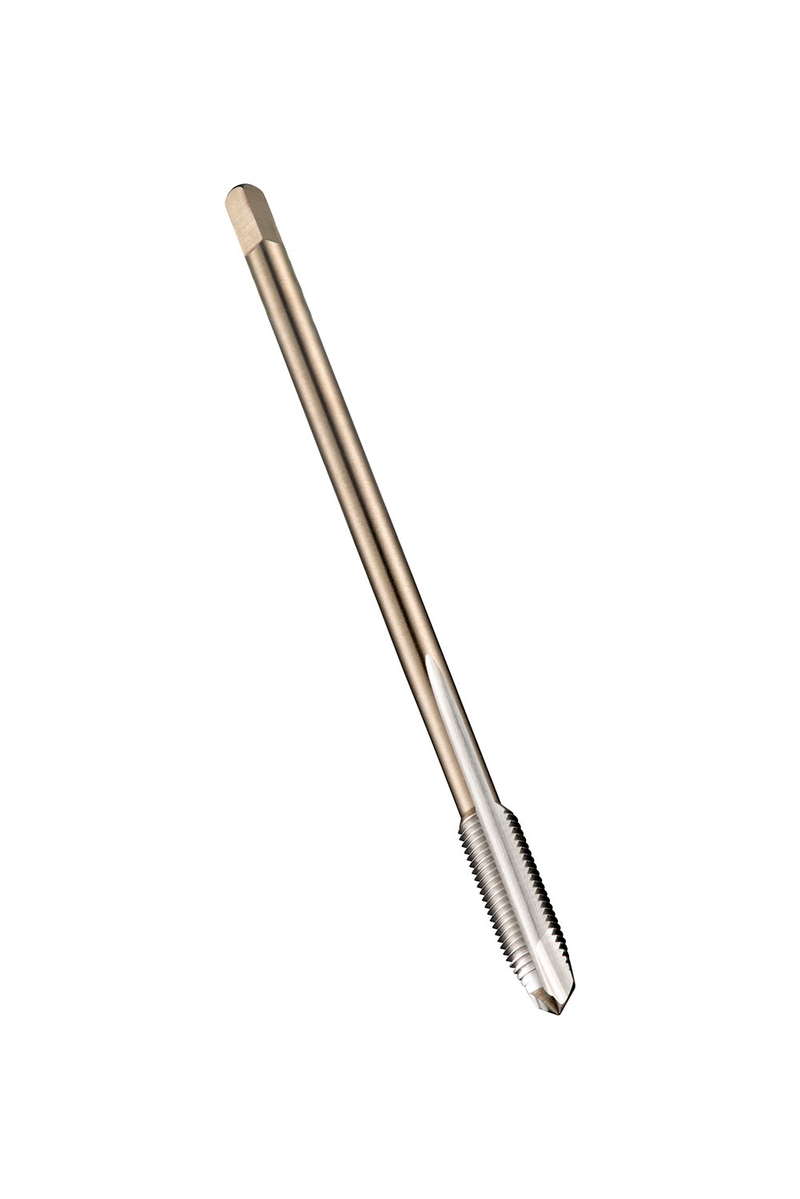

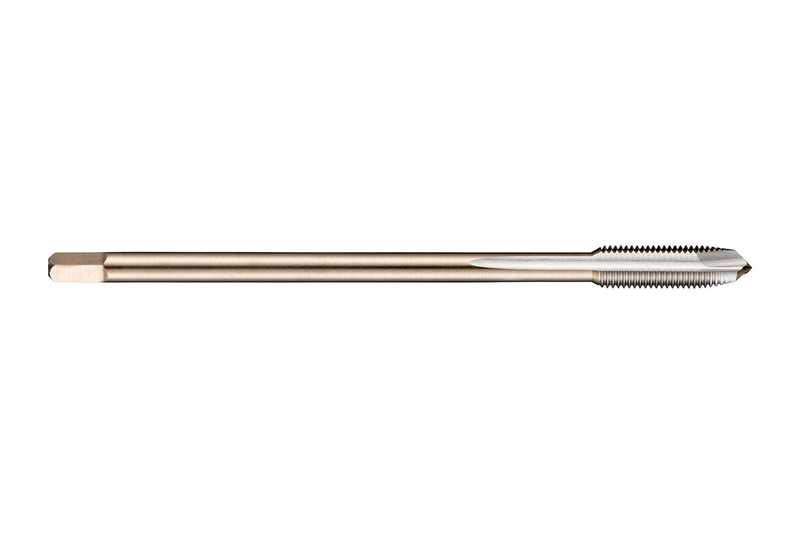

Taraud machine à pointe spirale avec entrée B (3.5-5xP) pour filetages métriques fins ISO M14 au pas de 1.25mm et tolérance 6H, dimensions conformes à la norme DIN 374 avec queue de 11.0mm et carré d'entraînement de 9.0mm, en HSS-E PM avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage, aciers au carbone non alliés et alliés, ainsi que l'aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP10M14X1.25
GradeLumineux
Product Number5973470
Product FamilyEP10

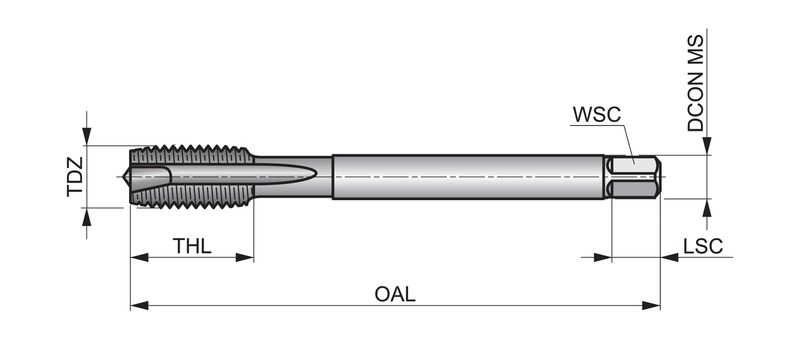

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137468
EAN7320760137468
File Type Download
EP10M14X1.25 — Line Drawing PDF Download
