EP01M2.5
EP01M2.5
EP01M2.5

EP01M2.5

UGC DOR5973475
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.04 CAD - $41.04 CAD
$41.04 CAD
$41.04 CAD - $41.04 CAD
$41.04 CAD

Vendu en lots de : 1

Taraud machine à pointe spirale et chanfrein forme B avec une entrée de 3,5-5xP, pour filetage ISO-Métric M2.5 avec pas de 0.45 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 2.8mm et carré d'entraînement de 2.1mm, HSS-E PM avec finition de surface trempée à la vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP01M2.5
GradeVapeur tempérée
Product Number5973475
Product FamilyEP016H

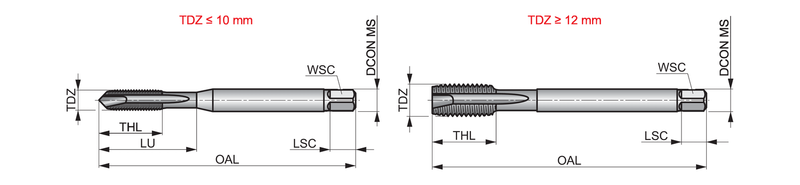

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)2.5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.45 mm
Thread Pitch — in (TP)0.0177"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number137291
EAN7320760137291
File Type Download
EP01M2.5 — Line Drawing PDF Download
