EP10M16X1.5
EP10M16X1.5
EP10M16X1.5

EP10M16X1.5

UGC DOR5973478
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.04 CAD - $86.04 CAD
$86.04 CAD
$86.04 CAD - $86.04 CAD
$86.04 CAD

Vendu en lots de : 1

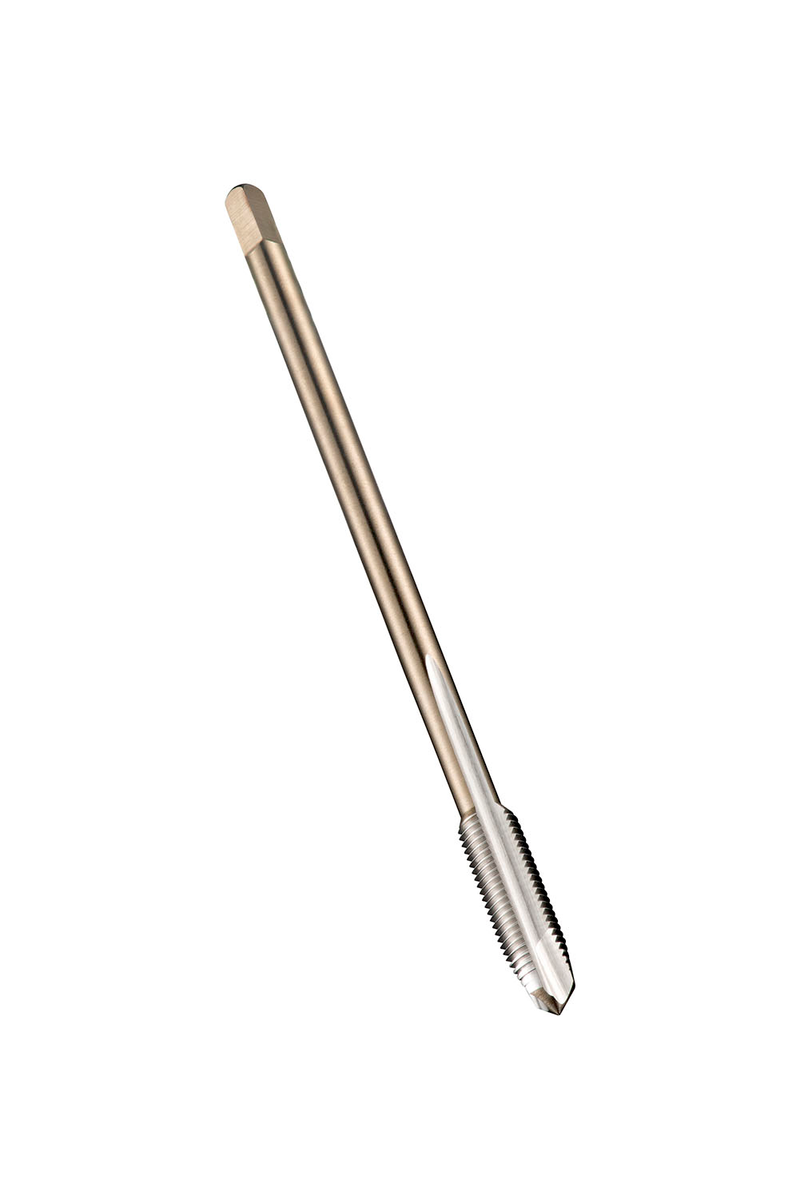

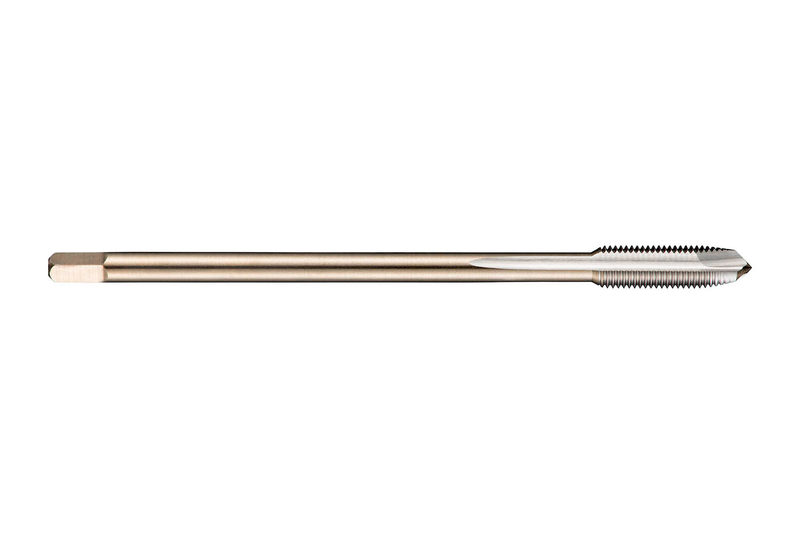

Taraud machine à coupe à gauche, forme B avec entrée 3.5-5xP, pour filetage métrique ISO fin M16 au pas de 1.50 mm et tolérance 6H, dimensions selon norme DIN 374 avec queue de 12.0mm et carré d'entraînement de 9.0mm, en HSS-E (acier rapide fritté) finition brillante pour filetage de trous débouchants 2.5xD dans les aciers de décolletage, les aciers au carbone et aciers alliés non traités ainsi que l'aluminium forgé ou coulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP10M16X1.5
GradeLumineux
Product Number5973478
Product FamilyEP10

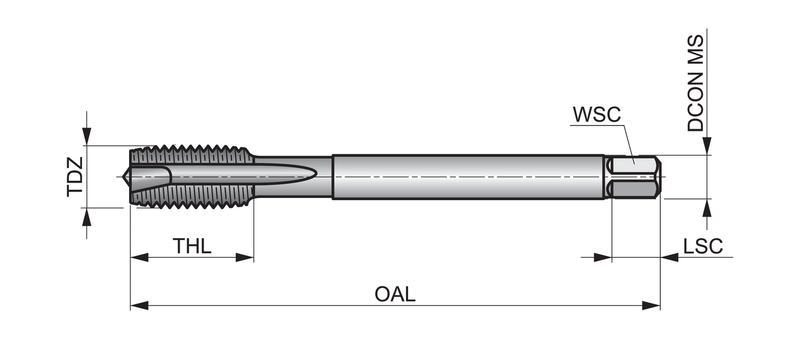

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137499
EAN7320760137499
File Type Download
EP10M16X1.5 — Line Drawing PDF Download
