UGC DOR5973484
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$166.34 CAD - $166.34 CAD
$166.34 CAD
$166.34 CAD - $166.34 CAD
$166.34 CAD

Vendu en lots de : 1

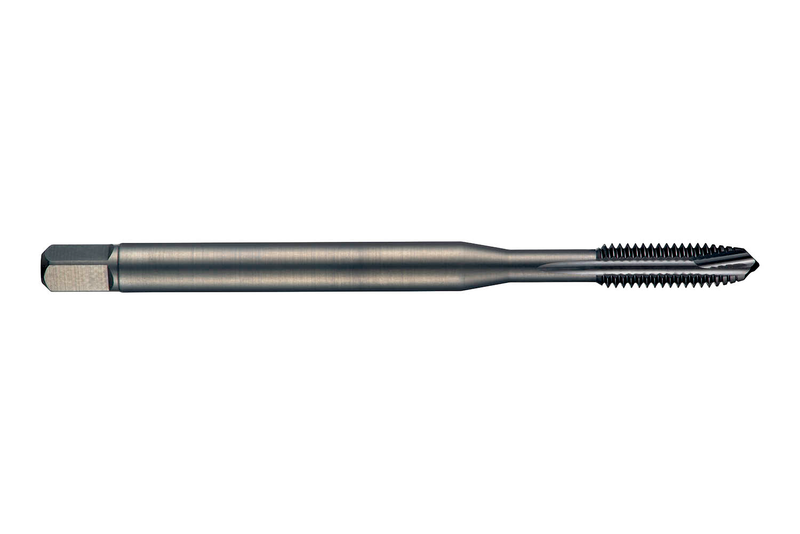

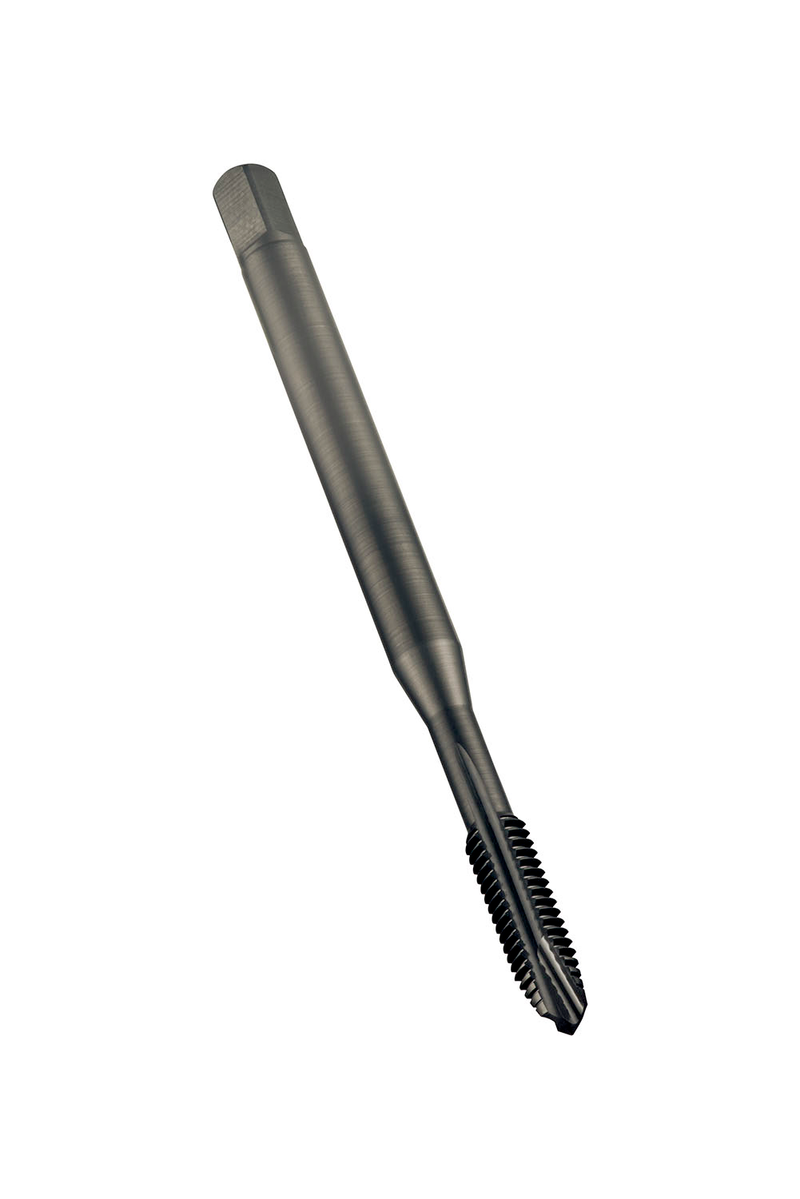

Taraud machine à coupe à droite avec entrée courte de type B (3.5-5 filets) pour le filetage métrique ISO M24 au pas de 3,00 mm et la tolérance 6H, selon la norme DIN 376 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en acier rapide fritté HSS-E avec revêtement nitruré pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP01M24
GradeTrempé à la vapeur
Product Number5973484
Product FamilyEP016H
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number136362
EAN7320760136362
File Type Download
EP01M24 — Line Drawing PDF Download
