EP10M20X1.5
EP10M20X1.5
EP10M20X1.5

EP10M20X1.5

UGC DOR5973487
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.49 CAD - $133.49 CAD
$133.49 CAD
$133.49 CAD - $133.49 CAD
$133.49 CAD

Vendu en lots de : 1

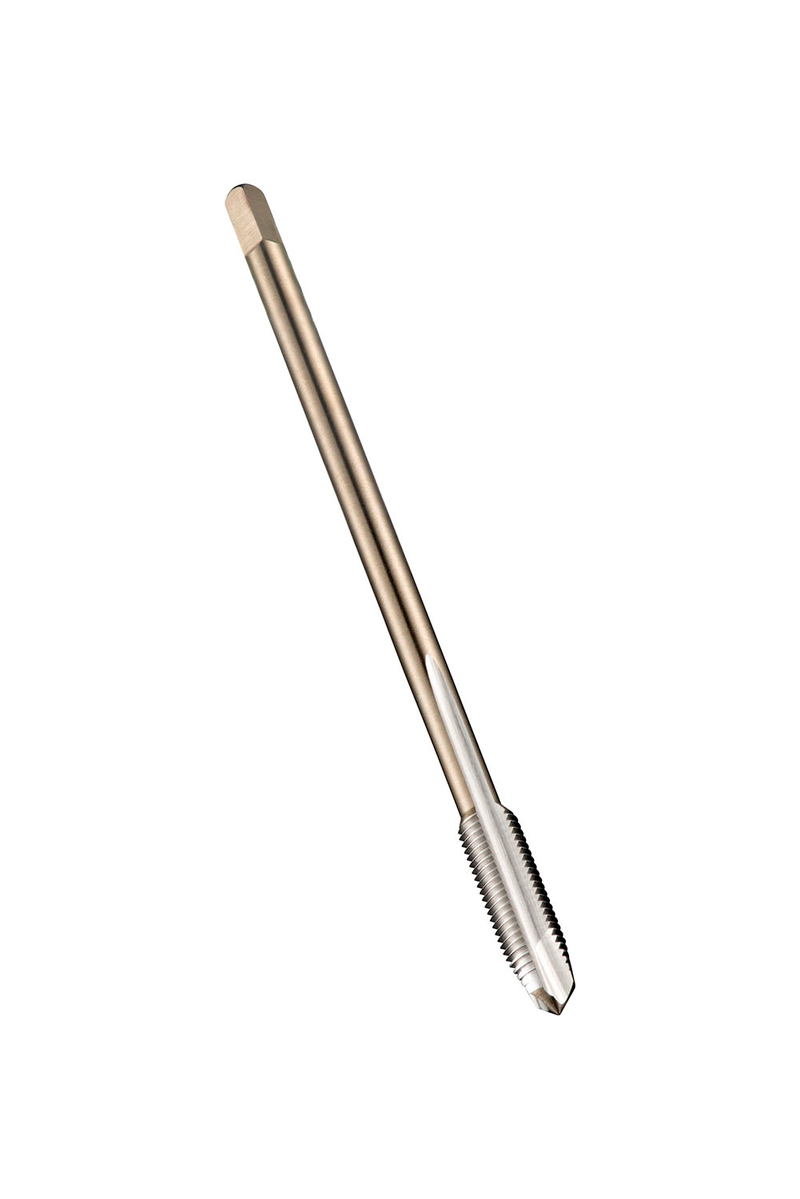

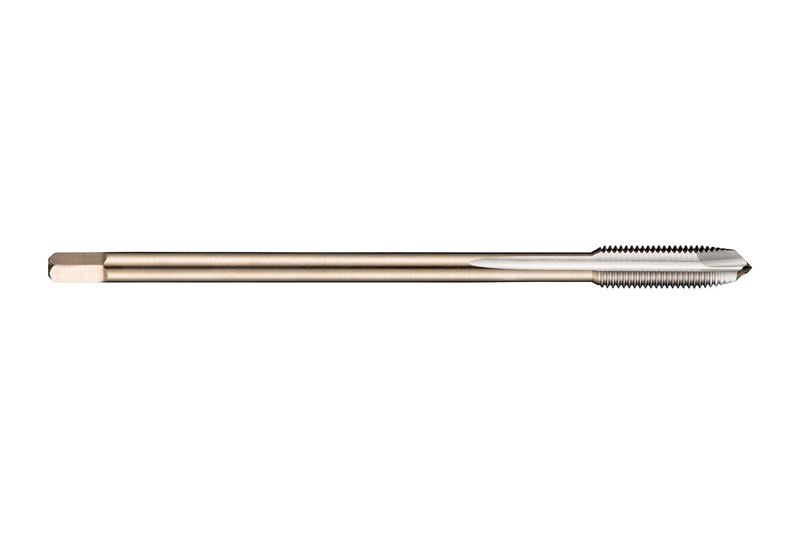

Taraud machine à pointe spirale avec entrée B de 3.5-5xP, pour filetage métrique fin ISO M20 au pas de 1.50 mm et tolérance 6H, dimensions conformes à la norme DIN 374 avec queue de 16.0mm et carré d'entraînement de 12.0mm, en HSS-E PM finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans l'acier de décolletage, l'acier au carbone et allié non traité ainsi que l'aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP10M20X1.5
GradeLumineux
Product Number5973487
Product FamilyEP10

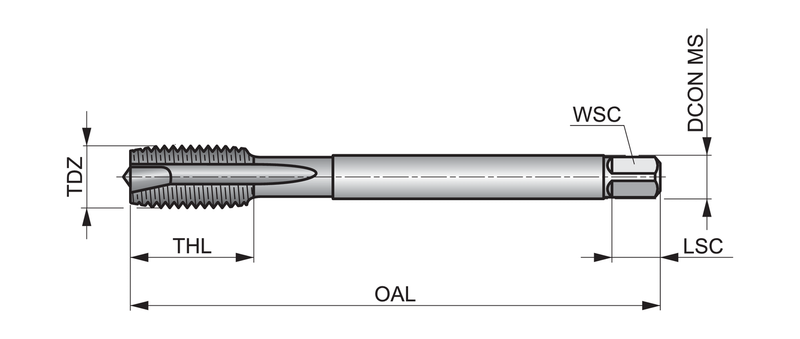

Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137536
EAN7320760137536
File Type Download
EP10M20X1.5 — Line Drawing PDF Download
