EP10M26X1.5
EP10M26X1.5
EP10M26X1.5

EP10M26X1.5

UGC DOR5973496
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$240.39 CAD - $240.39 CAD
$240.39 CAD
$240.39 CAD - $240.39 CAD
$240.39 CAD

Vendu en lots de : 1

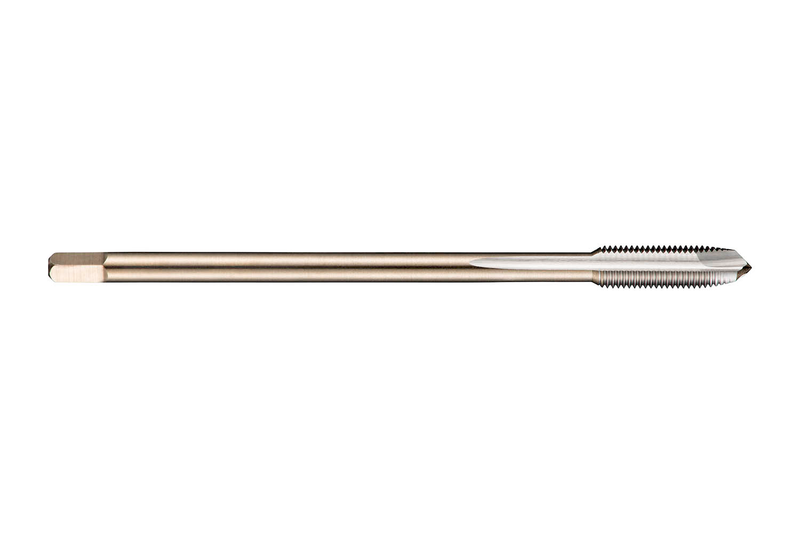

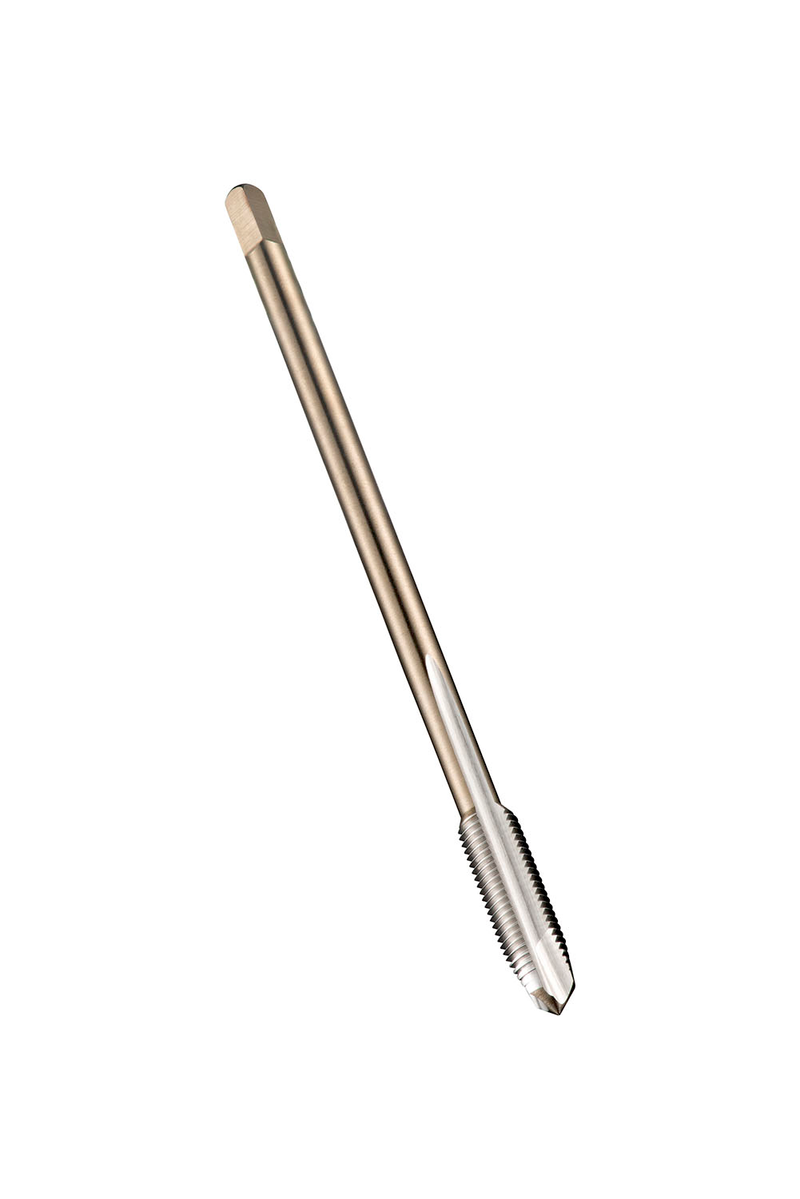

Taraud machine à pointe spiralée et entrée B de 3,5-5xP, pour filetage ISO-Métric Fin M26 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 374 avec queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E (métallurgie des poudres) brillant pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage, les aciers au carbone et alliés non traités et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI)EP10M26X1.5
Product Name (ISO)EP10M26X1,5
GradeLumineux
Product Number5973496
Product FamilyEP10

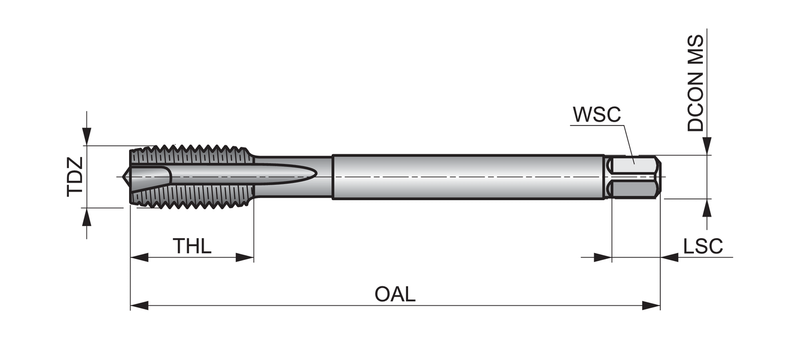

Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)26
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137581
EAN7320760137581
File Type Download
EP10M26X1.5 — Line Drawing PDF Download
