EP10M30X2.0
EP10M30X2.0
EP10M30X2.0

EP10M30X2.0

UGC DOR5973501
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$311.30 CAD - $311.30 CAD
$311.30 CAD
$311.30 CAD - $311.30 CAD
$311.30 CAD

Vendu en lots de : 1

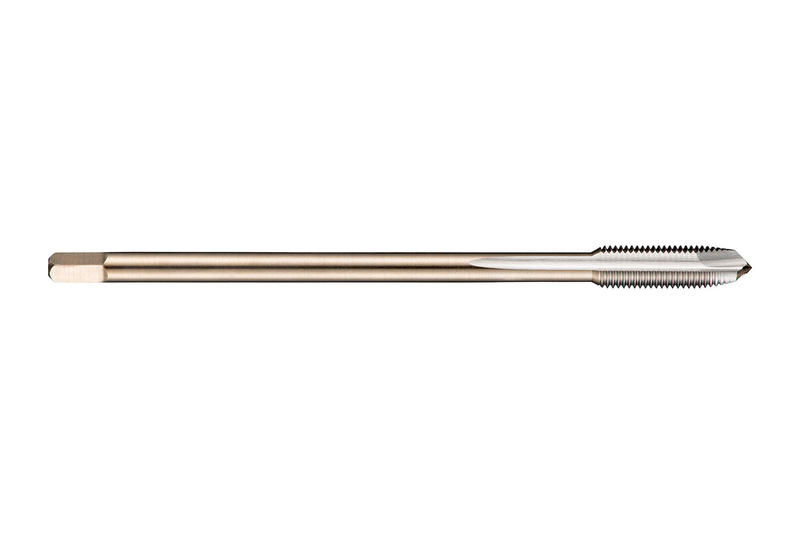

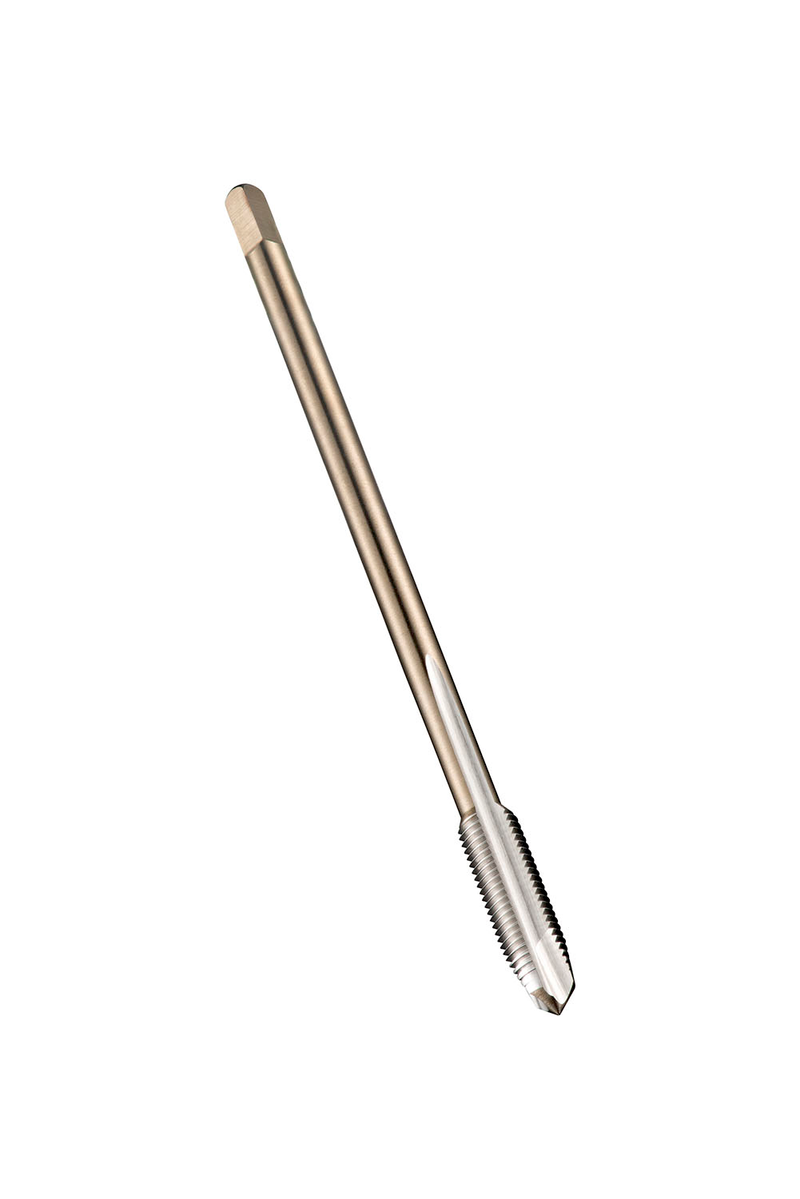

Taraud machine à pointe spirale et entrée B (3,5-5 filets) pour filet métrique ISO M30 au pas de 2,00 mm, tolérance 6H, dimensions selon norme DIN 374, queue de 22,0 mm et carré d'entraînement de 18,0 mm, en HSS-E fritté avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage, aciers au carbone non alliés et alliés et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP10M30X2.0
GradeLumineux
Product Number5973501
Product FamilyEP10

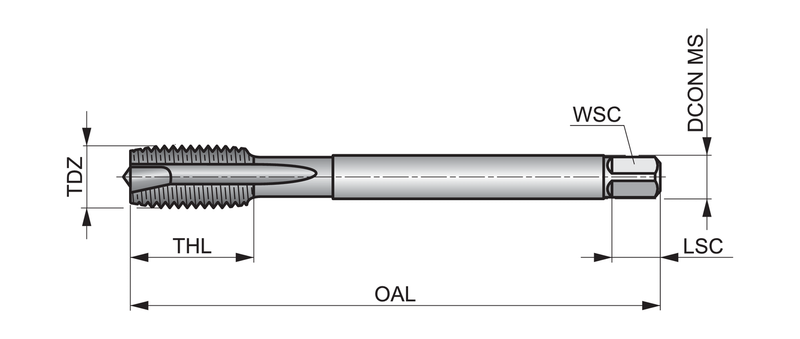

Dimensions
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)30
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137635
EAN7320760137635
File Type Download
EP10M30X2.0 — Line Drawing PDF Download
