EX10M10X.75
EX10M10X.75
EX10M10X.75

EX10M10X.75

UGC DOR5973591
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.91 CAD - $70.91 CAD
$70.91 CAD
$70.91 CAD - $70.91 CAD
$70.91 CAD

Vendu en lots de : 1

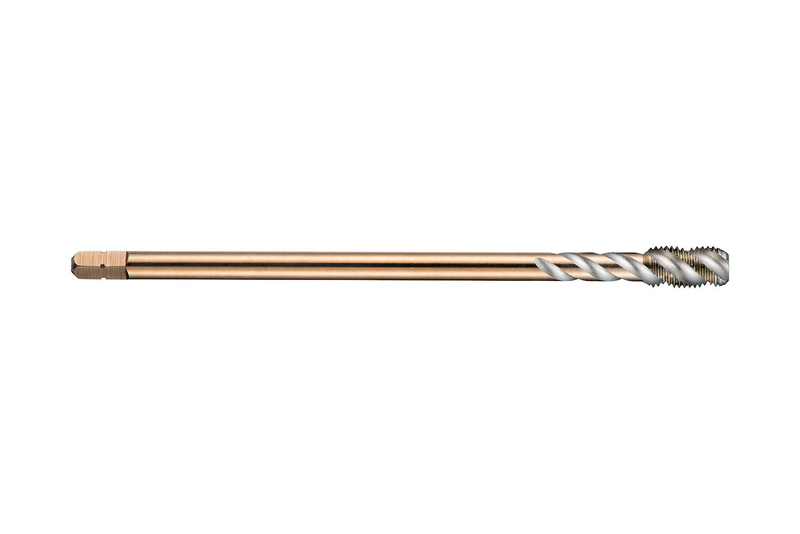

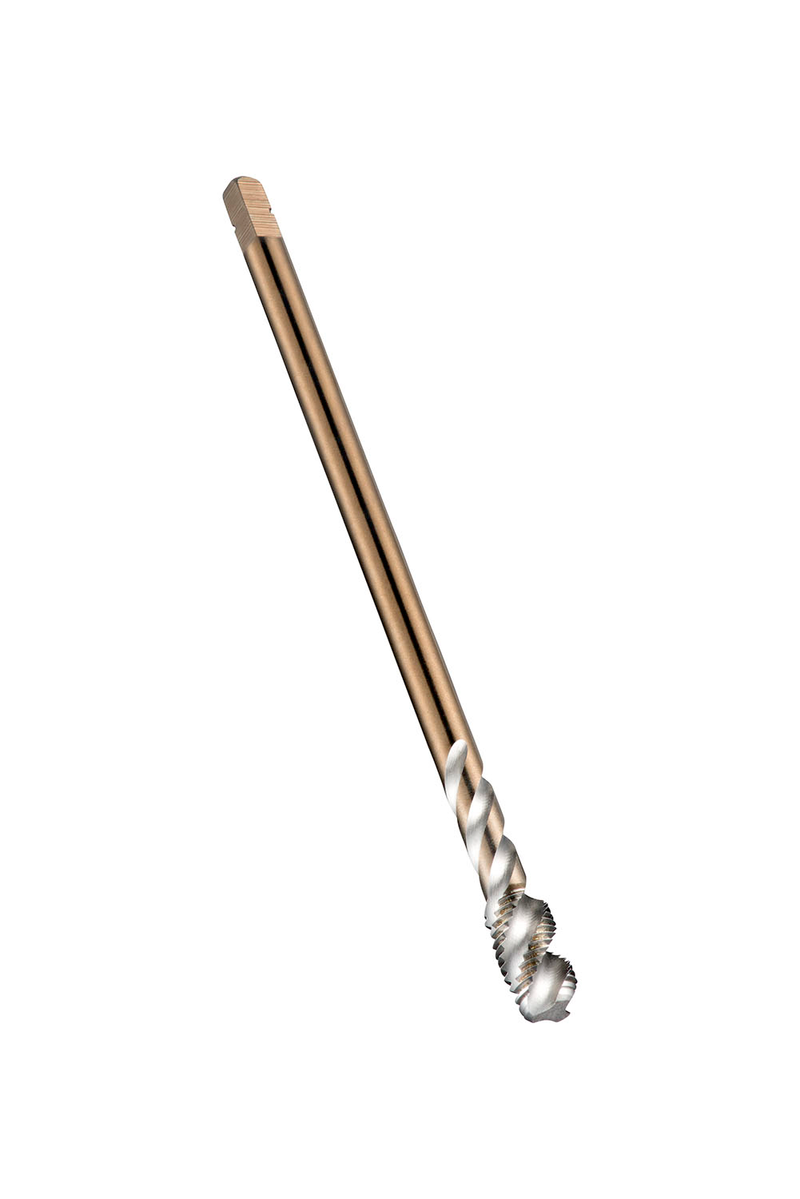

Taraud machine à goujures hélicoïdales avec chanfrein forme C, entrée 2-3xP, pour filet métrique fin ISO M10 au pas de 0,75 mm et classe de tolérance 6H, dimensions selon la norme DIN 374, queue de 7,0 mm et carré d'entraînement de 5,5 mm, en HSS-E PM avec finition brillante et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans les aciers de décolletage, les aciers au carbone non alliés et les alliages d'aluminium forgés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX10M10X.75
GradeLumineux
Product Number5973591
Product FamilyEX10

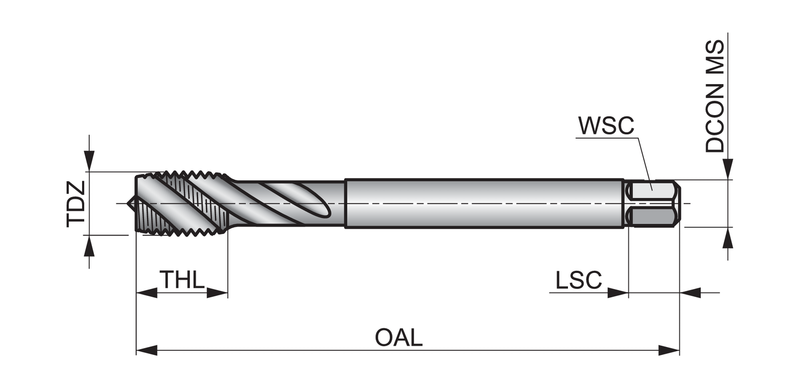

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number149713
EAN7320760149713
File Type Download
EX10M10X.75 — Line Drawing PDF Download
