EX11M22X1.5
EX11M22X1.5
EX11M22X1.5

EX11M22X1.5

UGC DOR5973597
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.97 CAD - $205.97 CAD
$205.97 CAD
$205.97 CAD - $205.97 CAD
$205.97 CAD

Vendu en lots de : 1

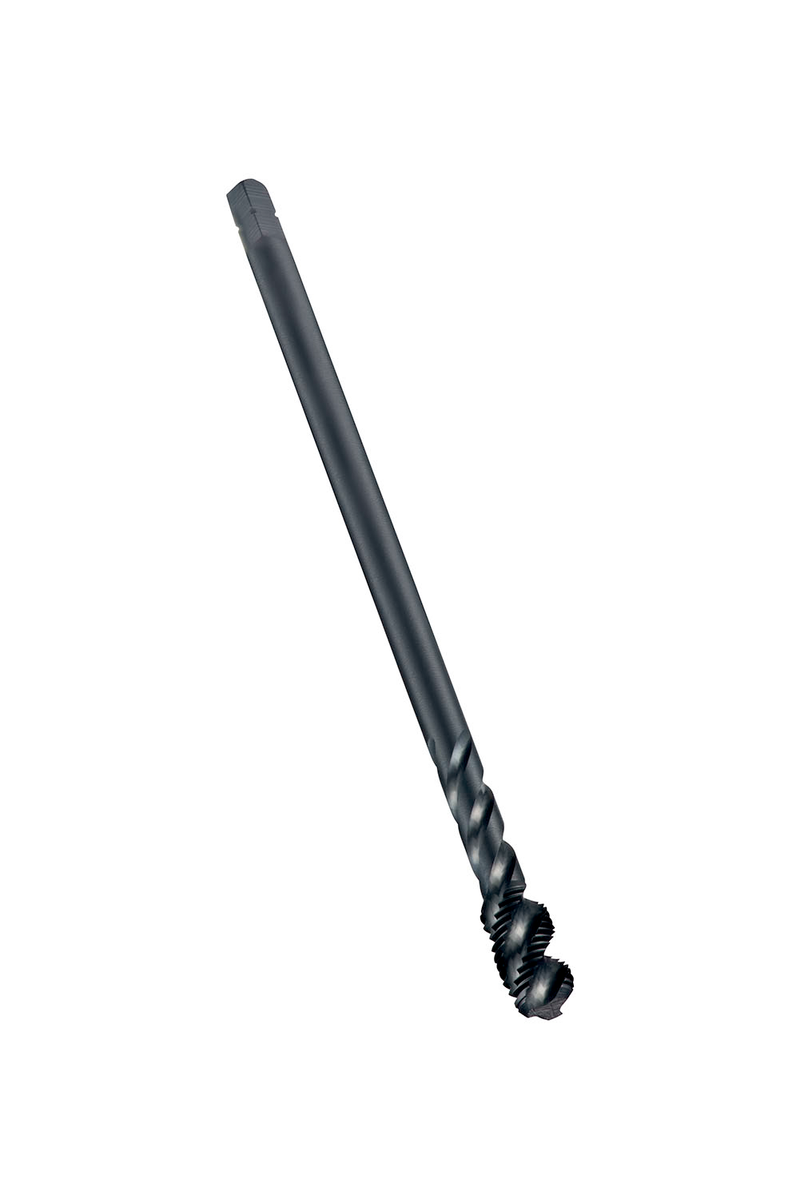

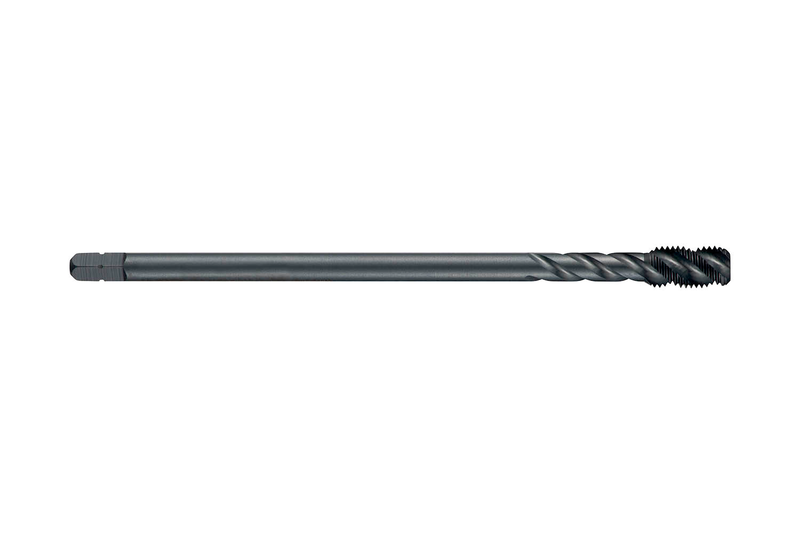

Taraud machine à goujure hélicoïdale avec chanfrein forme C, entrée 2-3xP, pour filetage métrique fin ISO M22 au pas de 1,50 mm et classe de tolérance 6H, dimensions selon la norme DIN 374, queue de 18,0 mm et carré d'entraînement de 14,5 mm, en HSS-E métallurgie des poudres avec revêtement d'oxyde noir (steam tempered) et angle d'hélice de 45° pour le taraudage de trous borgnes jusqu'à 2,5xD dans des applications généralistes

For more information about this product, click here

Identification
Ordering Code (ANSI)EX11M22X1,5
Product Name (ISO)EX11M22X1.5
GradeTrempé à la vapeur
Product Number5973597
Product FamilyEX11

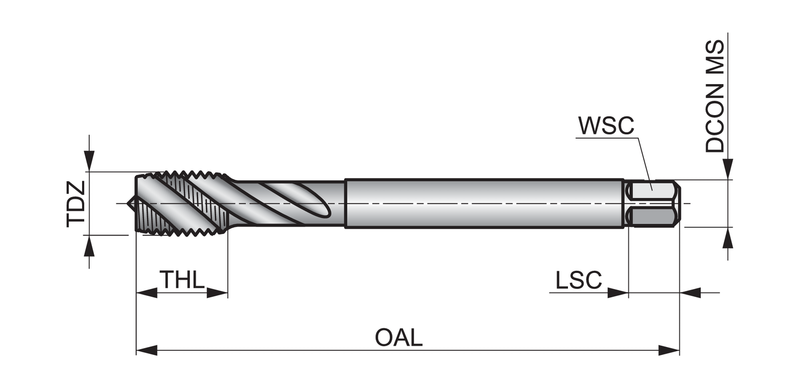

Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)22
Thread Form (THFT)MF - Pas fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number150160
EAN7320760150160
File Type Download
EX11M22X1.5 — Line Drawing PDF Download
