EX10M10X1.0
EX10M10X1.0
EX10M10X1.0

EX10M10X1.0

UGC DOR5973598
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.40 CAD - $58.40 CAD
$58.40 CAD
$58.40 CAD - $58.40 CAD
$58.40 CAD

Vendu en lots de : 1

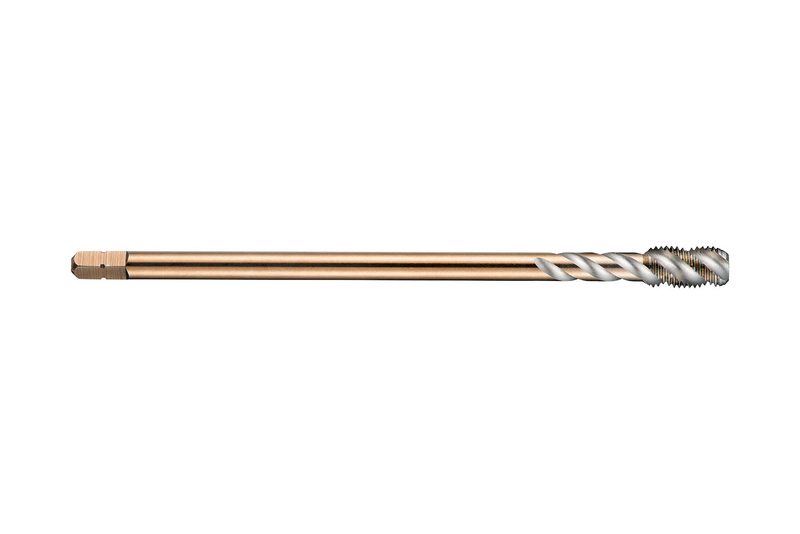

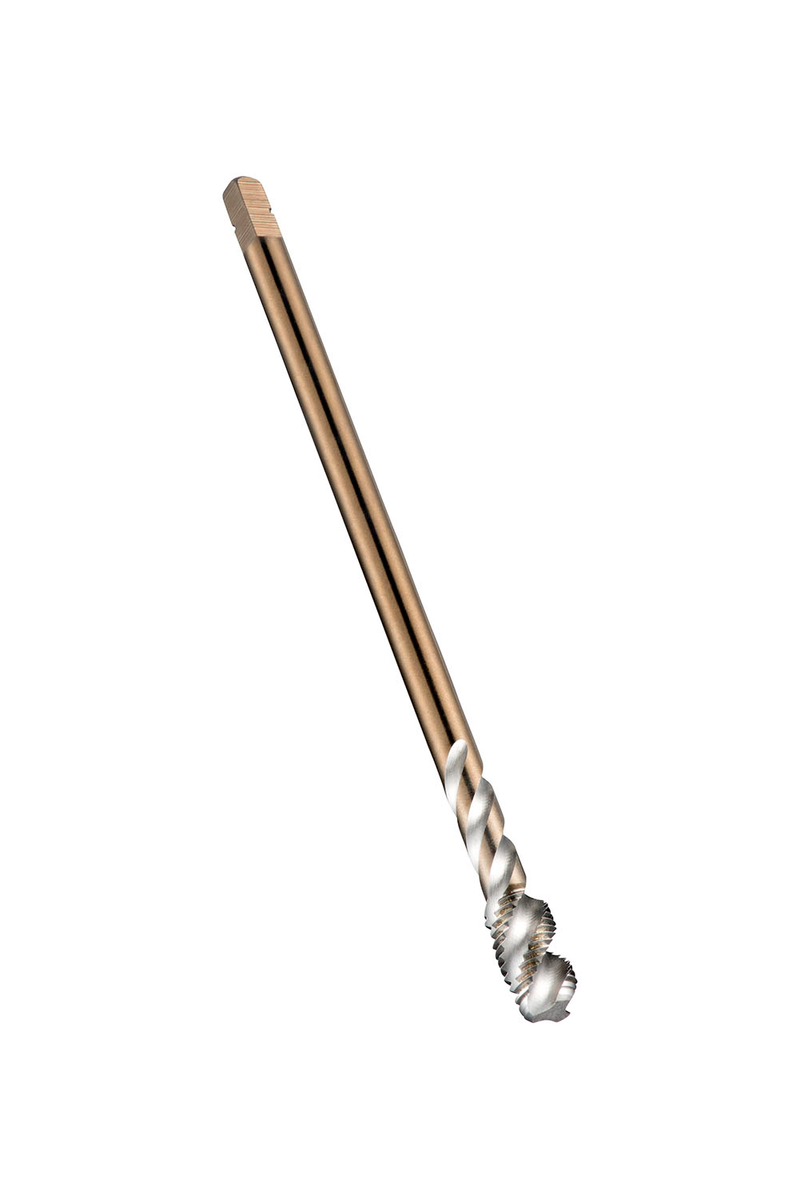

Taraud machine à coupe à gauche, forme C d'entrée 2-3xP, pour filetages métriques fins ISO M10 au pas de 1,00 mm et de tolérance 6H, dimensions suivant la norme DIN 374 avec queue de 7,0 mm et carré d'entraînement de 5,5 mm, en acier rapide fritté HSS-E avec finition brillante et angle d'hélice de 45° pour usinage de filetages jusqu'à 2,5xD dans aciers de décolletage et aciers au carbone non alliés et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX10M10X1.0
GradeLumineux
Product Number5973598
Product FamilyEX10
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number149720
EAN7320760149720
File Type Download

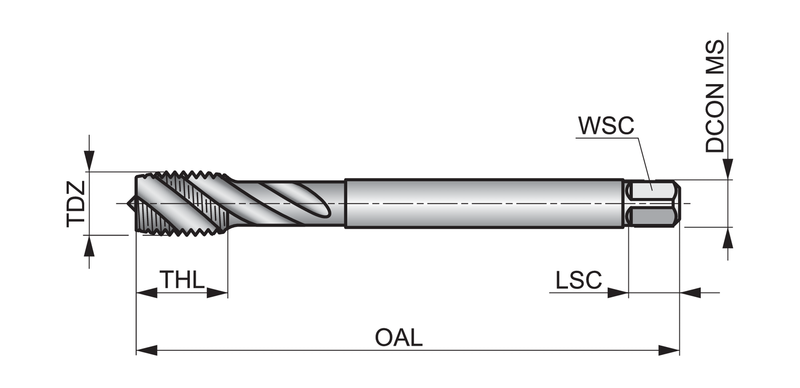

EX10M10X1.0 — Line Drawing PDF Download
