EP11M16X1.0
EP11M16X1.0
EP11M16X1.0

EP11M16X1.0

UGC DOR5973606
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.21 CAD - $90.21 CAD
$90.21 CAD
$90.21 CAD - $90.21 CAD
$90.21 CAD

Vendu en lots de : 1

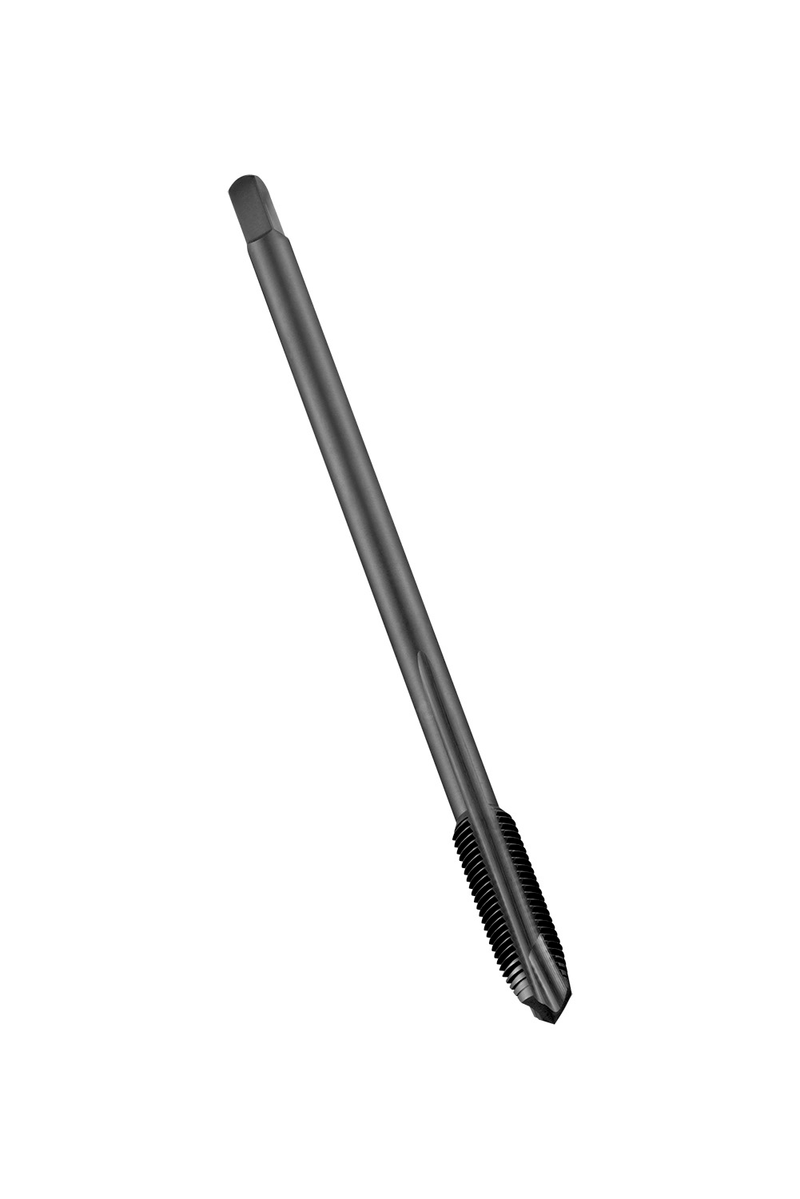

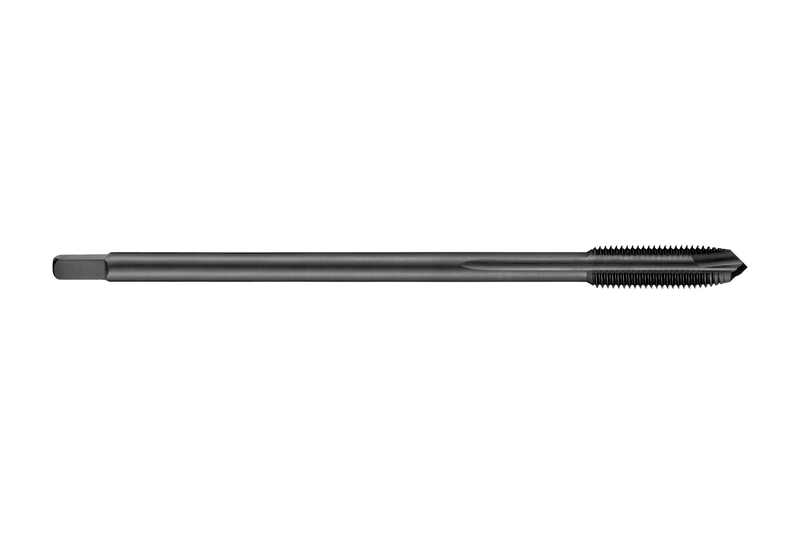

Taraud machine à pointe spirale et entrée B (3.5-5xP) pour filetages ISO-Métric Fins M16 au pas de 1.00 mm et tolérance 6H, dimensions conformes à la norme DIN 374 avec queue de 12.0mm et carré d'entraînement de 9.0mm, en HSS-E (acier rapide fritté) avec finition de surface trempée vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M16X1.0
GradeTrempé à la vapeur
Product Number5973606
Product FamilyPE11

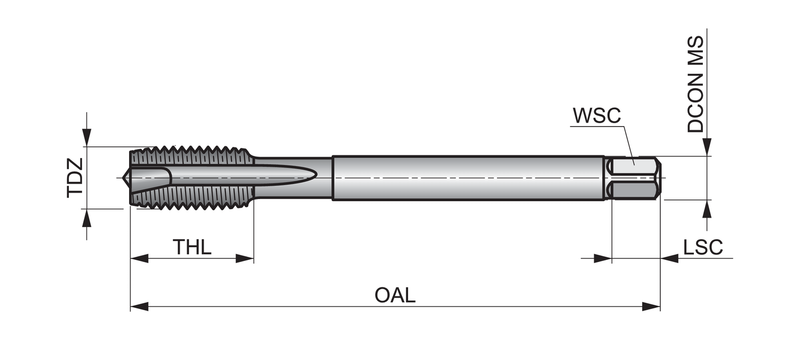

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique à entraînement carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137864
EAN7320760137864
File Type Download
EP11M16X1.0 — Line Drawing PDF Download
