EP11M18X1.0
EP11M18X1.0
EP11M18X1.0

EP11M18X1.0

UGC DOR5973615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$131.40 CAD - $131.40 CAD
$131.40 CAD
$131.40 CAD - $131.40 CAD
$131.40 CAD

Vendu en lots de : 1

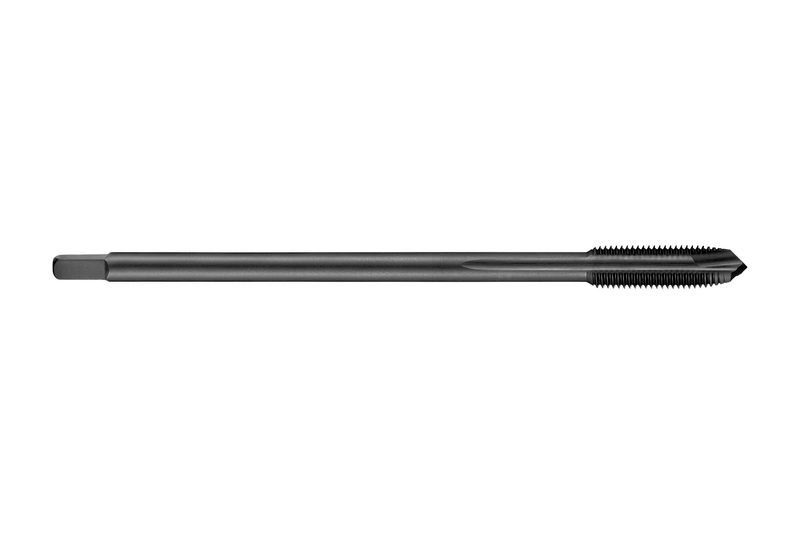

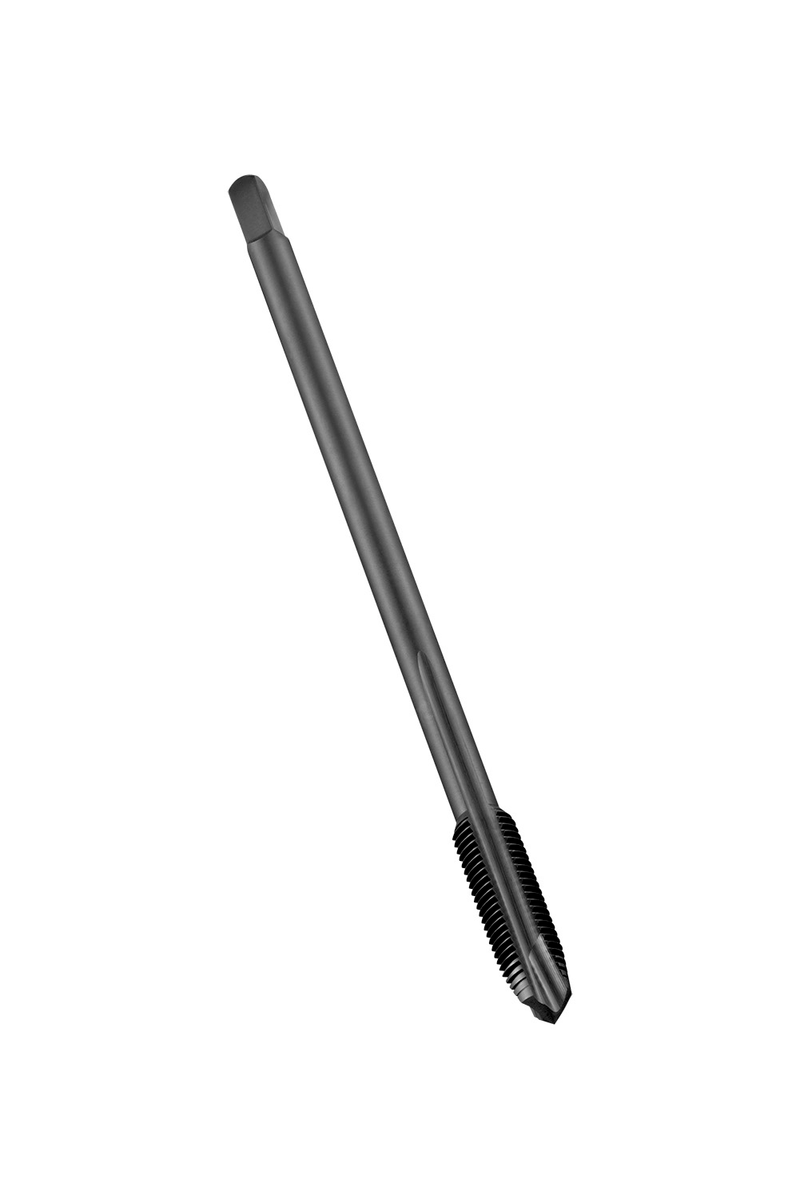

Taraud machine à pointe spirale et entrée B (3,5-5 filets), pour filetage métrique ISO fin M18 au pas de 1,00 mm et classe de tolérance 6H, dimensions conformes à la norme DIN 374, queue de 14,0 mm et carré d'entraînement de 11,0 mm, en HSS-E PM avec finition de surface revenu vapeur pour filetage de trous débouchants jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI)EP11M18X1,0
Product Name (ISO)EP11M18X1.0
GradeTrempé à la vapeur
Product Number5973615
Product FamilyPE11
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)18
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137888
EAN7320760137888
File Type Download
EP11M18X1.0 — Line Drawing PDF Download
