EX00M52
EX00M52
EX00M52

EX00M52

UGC DOR5973653
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,352.07 CAD - $1,352.07 CAD
$1,352.07 CAD
$1,352.07 CAD - $1,352.07 CAD
$1,352.07 CAD

Vendu en lots de : 1

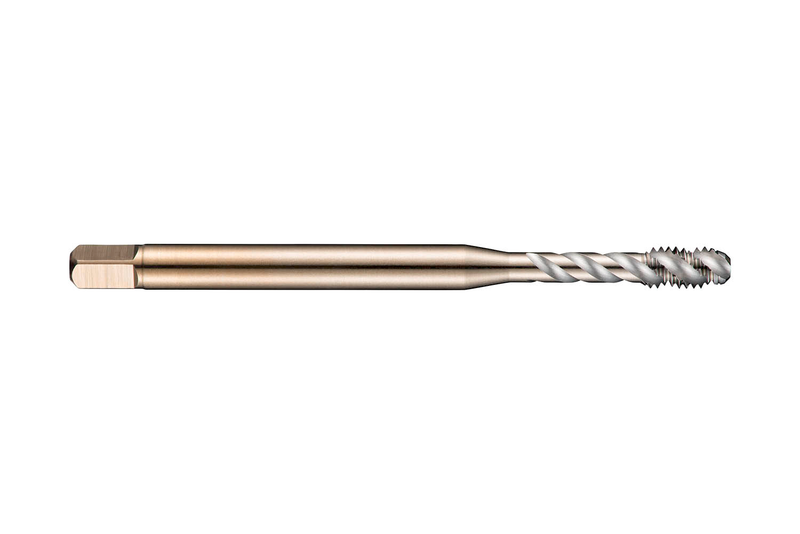

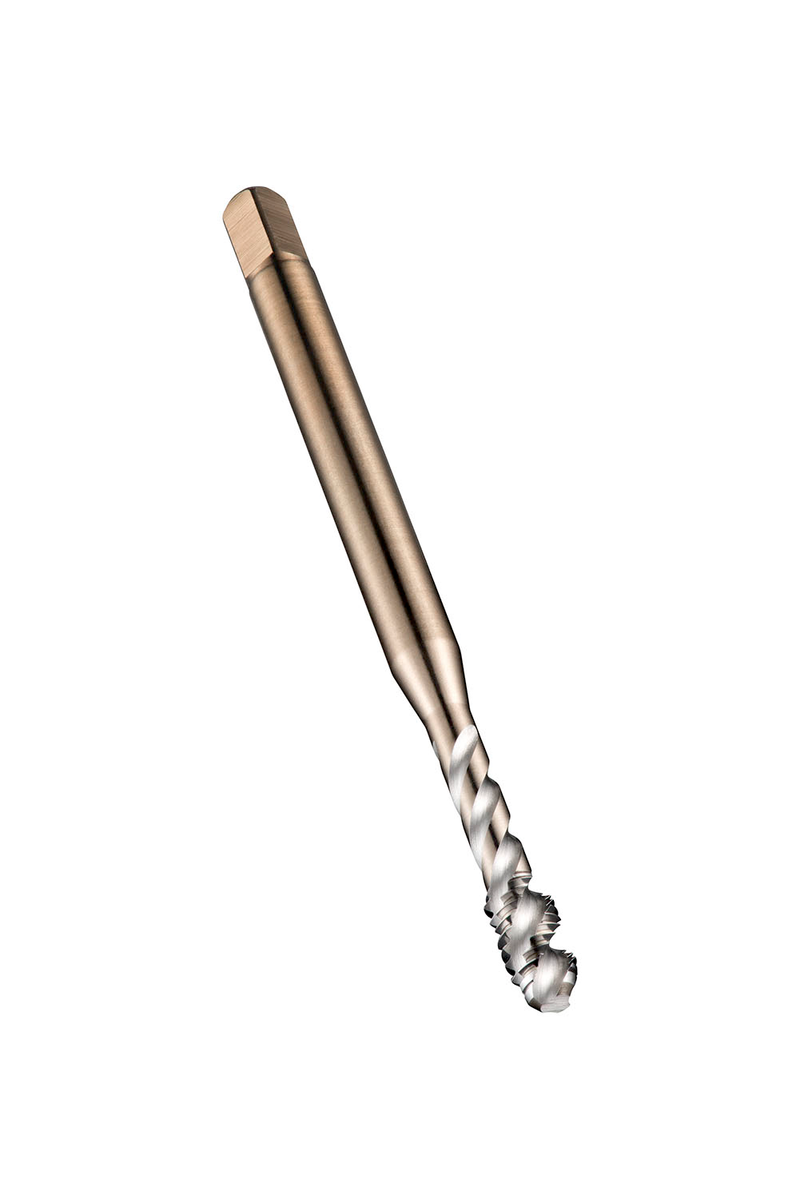

Taraud à coupe spirale forme C avec entrée 2-3 filets, pour filetage métrique ISO M52 au pas de 5,00 mm et tolérance 6H, dimensions selon la norme DIN 376 avec queue de 40,0 mm et carré d'entraînement de 32,0 mm, en HSS-E (acier rapide fritté) avec finition brillante et un angle d'hélice de 45° pour le taraudage des trous borgnes jusqu'à 2.5xD dans les aciers de décolletage et les aciers au carbone non alliés, ainsi que l'aluminium corroyé ou coulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00M52
GradeLumineux
Product Number5973653
Product FamilyEX006H
Dimensions
Overall Length — in (OAL)9.8425"
Overall Length — mm (OAL)250.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)52
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)5.0 mm
Thread Pitch — in (TP)0.1969"
Tool Information
ShankTige cylindrique à queue carrée
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number136911
EAN7320760136911
File Type Download

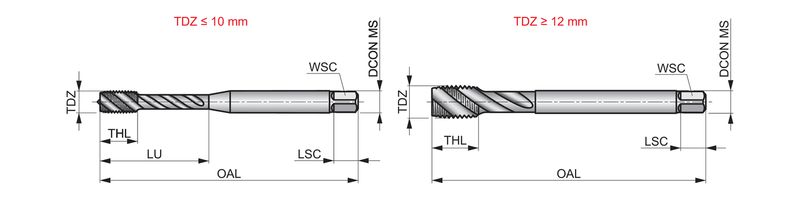

EX00M52 — Line Drawing PDF Download
