EP11M27X1.5
EP11M27X1.5
EP11M27X1.5

EP11M27X1.5

UGC DOR5973672
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$260.20 CAD - $260.20 CAD
$260.20 CAD
$260.20 CAD - $260.20 CAD
$260.20 CAD

Vendu en lots de : 1

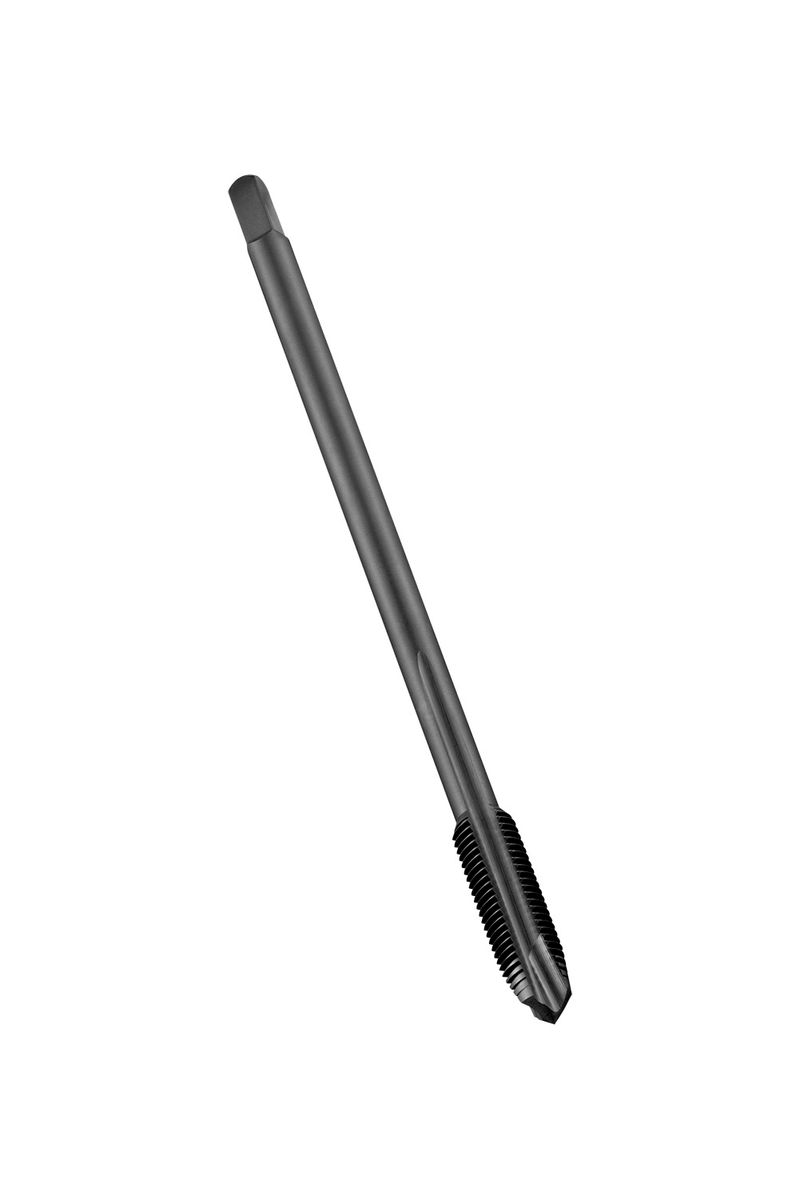

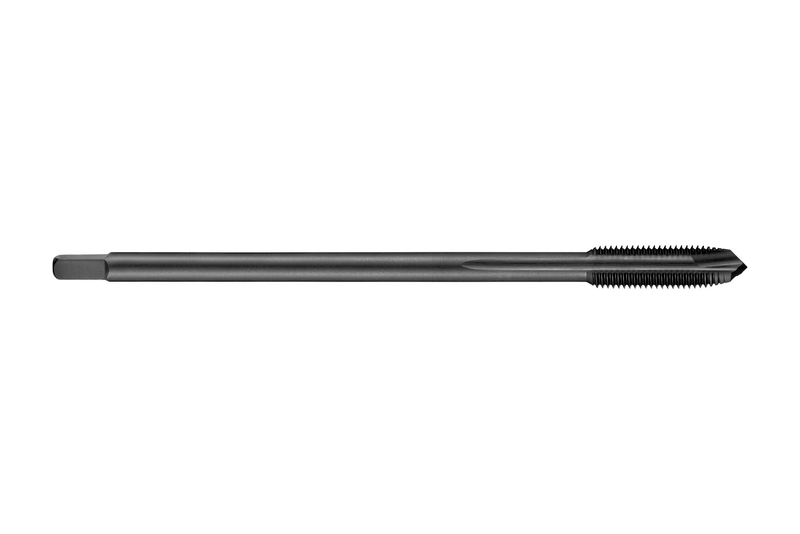

Taraud machine à pointe spirale et entrée forme B de 3,5-5xP, pour filet ISO-Métrique fin M27 au pas de 1,50 mm et tolérance 6H, dimensions selon la norme DIN 374 avec queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS-E (acier rapide à haute teneur en cobalt) avec revêtement de surface bleui à la vapeur pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI)EP11M27X1,5
Product Name (ISO)EP11M27X1.5
GradeTrempé à la vapeur
Product Number5973672
Product FamilyPE11
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)27
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137970
EAN7320760137970
File Type Download
EP11M27X1.5 — Line Drawing PDF Download
