EP11M27X2.0
EP11M27X2.0
EP11M27X2.0

EP11M27X2.0

UGC DOR5973676
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$253.41 CAD - $253.41 CAD
$253.41 CAD
$253.41 CAD - $253.41 CAD
$253.41 CAD

Vendu en lots de : 1

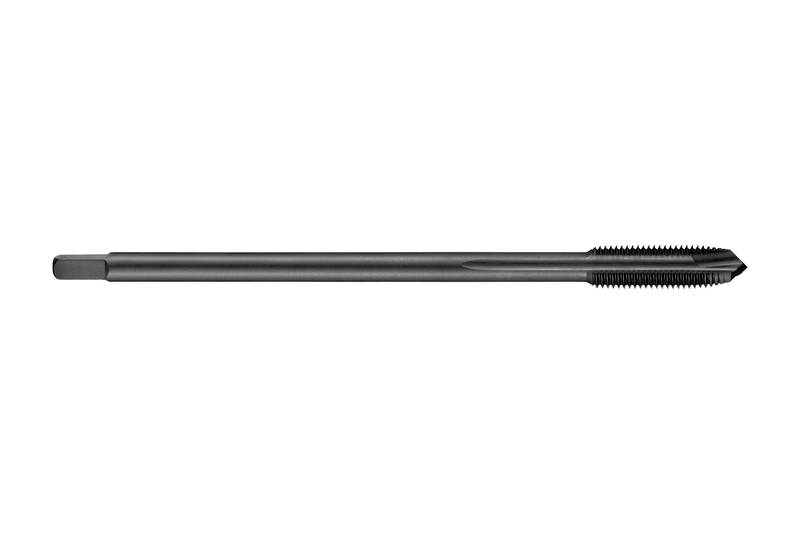

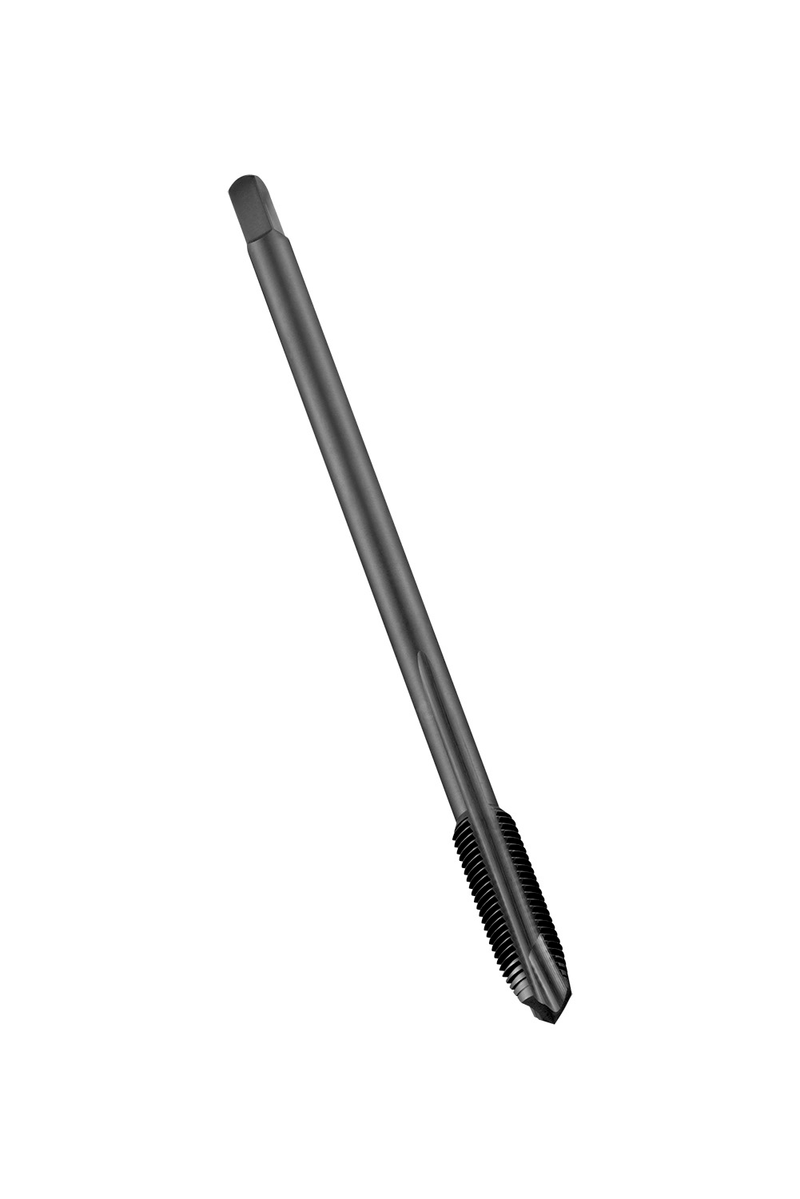

Taraud machine à pointe spirale avec entrée B (3.5-5xP), pour filetage métrique fin ISO M27 au pas de 2.00 mm et classe de tolérance 6H, dimensions selon la norme DIN 374 avec queue de 20.0mm et carré d'entraînement de 16.0mm, en HSS-E fritté avec traitement de surface à la vapeur pour le taraudage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M27X2.0
GradeTrempé à la vapeur
Product Number5973676
Product FamilyPE11
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)27
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137987
EAN7320760137987
File Type Download
EP11M27X2.0 — Line Drawing PDF Download
