EX00M6DIN376
EX00M6DIN376
EX00M6DIN376

EX00M6DIN376

UGC DOR5973677
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.19 CAD - $42.19 CAD
$42.19 CAD
$42.19 CAD - $42.19 CAD
$42.19 CAD

Vendu en lots de : 1

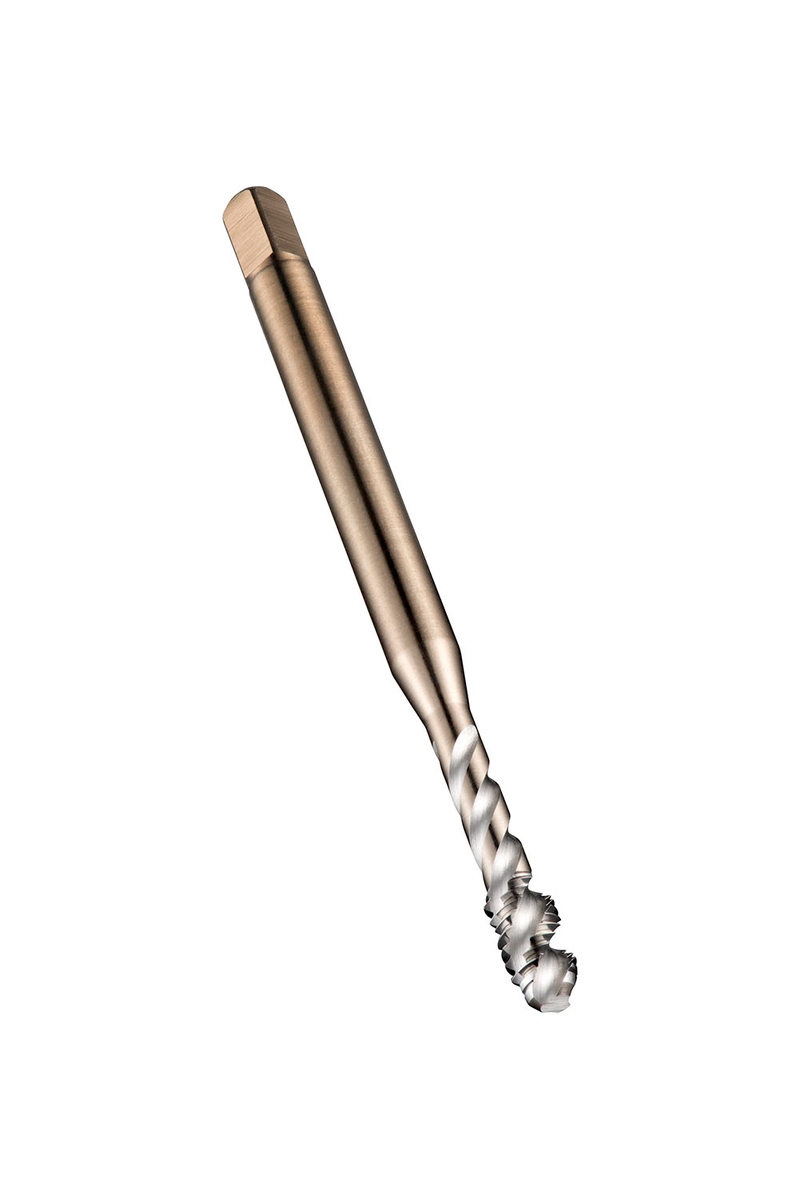

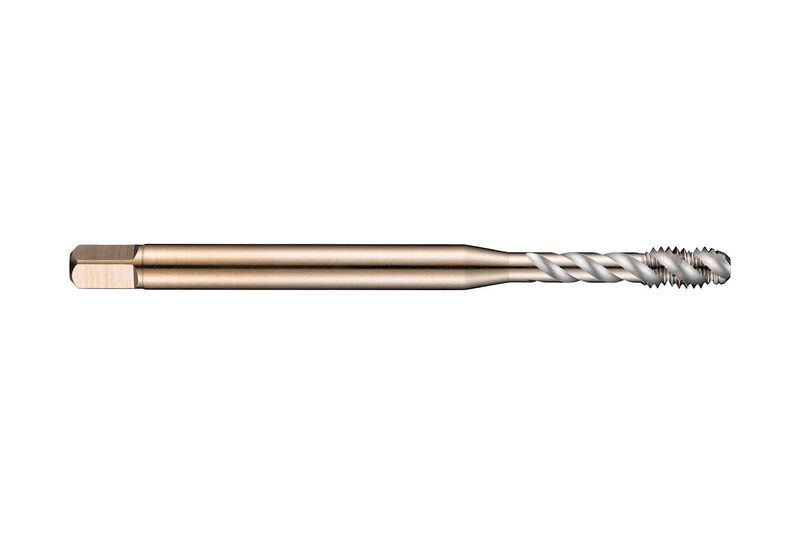

Taraud machine à coupe hélicoïdale, forme C avec entrée de 2-3 filets, pour filetage métrique ISO M6 au pas de 1,00 mm et tolérance 6H, dimensions selon norme DIN 376 avec queue de 4,5 mm et carré d'entraînement de 3,4 mm, en HSS-E PM avec finition brillante et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2.5xD dans les aciers automates et aciers au carbone non alliés, et les aluminiums corroyés ou coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00M6DIN376
GradeLumineux
Product Number5973677
Product FamilyEX006H

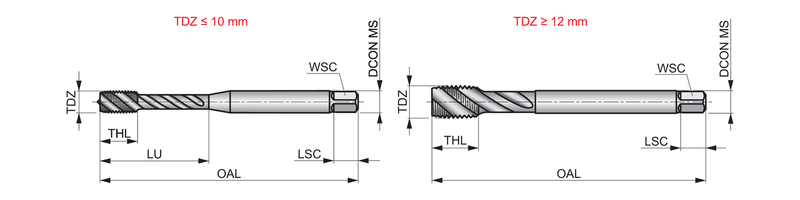

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.2205"
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number136645
EAN7320760136645
File Type Download
EX00M6DIN376 — Line Drawing PDF Download
