EX00M66G
EX00M66G
EX00M66G

EX00M66G

UGC DOR5973686
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.37 CAD - $38.37 CAD
$38.37 CAD
$38.37 CAD - $38.37 CAD
$38.37 CAD

Vendu en lots de : 1

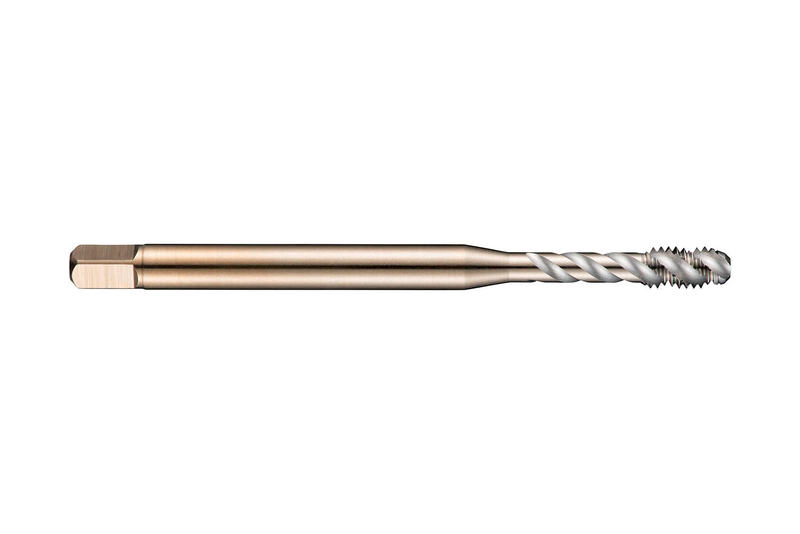

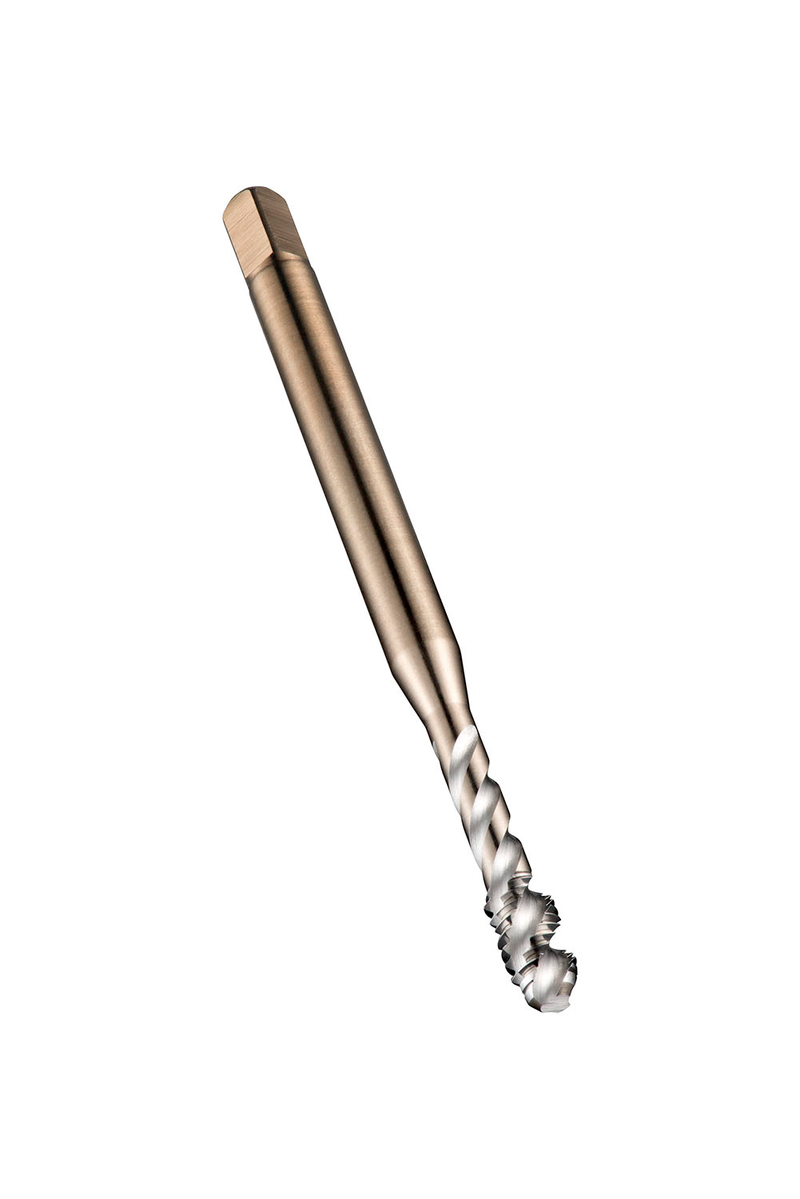

Taraud à gorge spirale avec chanfrein forme C et entrée de 2-3 filets, pour filet métrique ISO M6 au pas de 1,00 mm et tolérance 6G, dimensions conformes à la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E (acier rapide fritté) finition brillante et angle d'hélice de 45° pour le taraudage de trous borgnes jusqu'à 2,5xD dans les aciers à usinage facile, aciers au carbone non alliés et alliés et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00M66G
GradeLumineux
Product Number5973686
Product FamilyEX006G

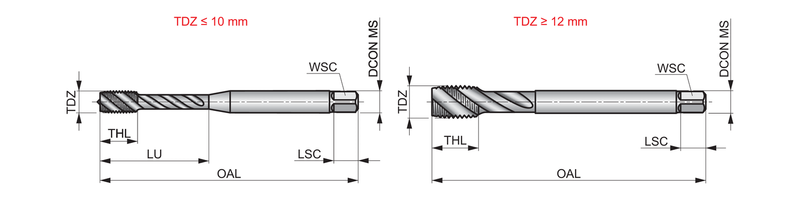

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.2205"
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number136423
EAN7320760136423
File Type Download
EX00M66G — Line Drawing PDF Download
