EP11M5X.5
EP11M5X.5
EP11M5X.5

EP11M5X.5

UGC DOR5973695
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.47 CAD - $50.47 CAD
$50.47 CAD
$50.47 CAD - $50.47 CAD
$50.47 CAD

Vendu en lots de : 1

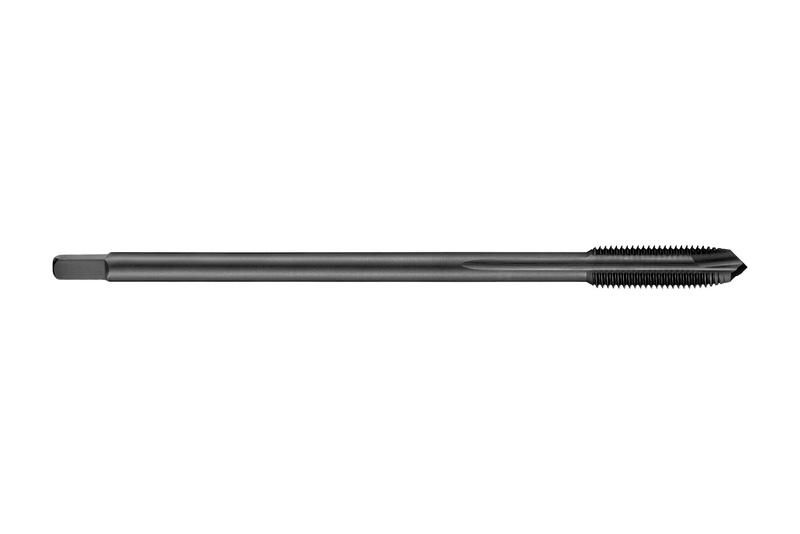

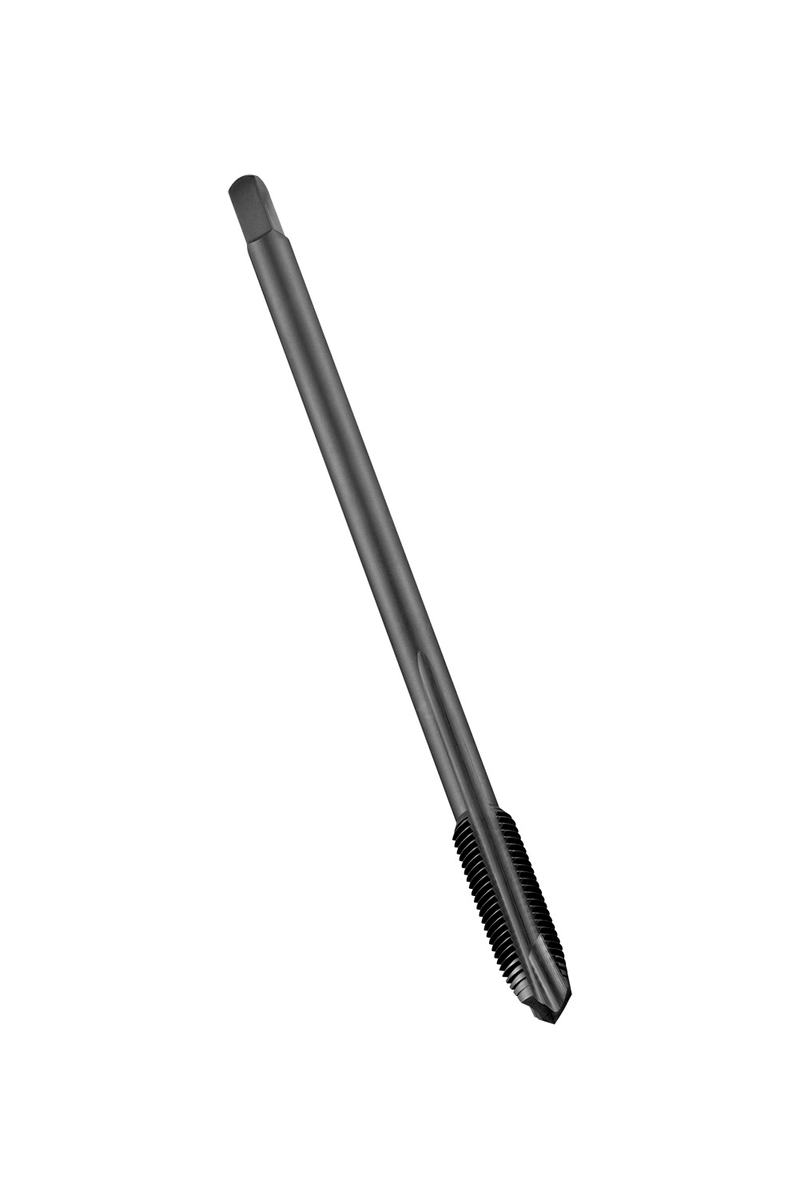

Taraud machine à pointe spirale avec entrée B (3,5-5 filets) pour filet métrique fin ISO M5 au pas de 0,50 mm, tolérance 6H, dimensions conformes à la norme DIN 374, queue de 3,5 mm et carré d'entraînement de 2,7 mm, en HSS-E PM avec finition de surface trempée à la vapeur pour le taraudage de trous débouchants jusqu'à 2,5xD dans des applications courantes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M5X.5
GradeTrempé à la vapeur
Product Number5973695
Product FamilyPE11
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137659
EAN7320760137659
File Type Download
EP11M5X.5 — Line Drawing PDF Download
