UGC DOR5973701
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.83 CAD - $40.83 CAD
$40.83 CAD
$40.83 CAD - $40.83 CAD
$40.83 CAD

Vendu en lots de : 1

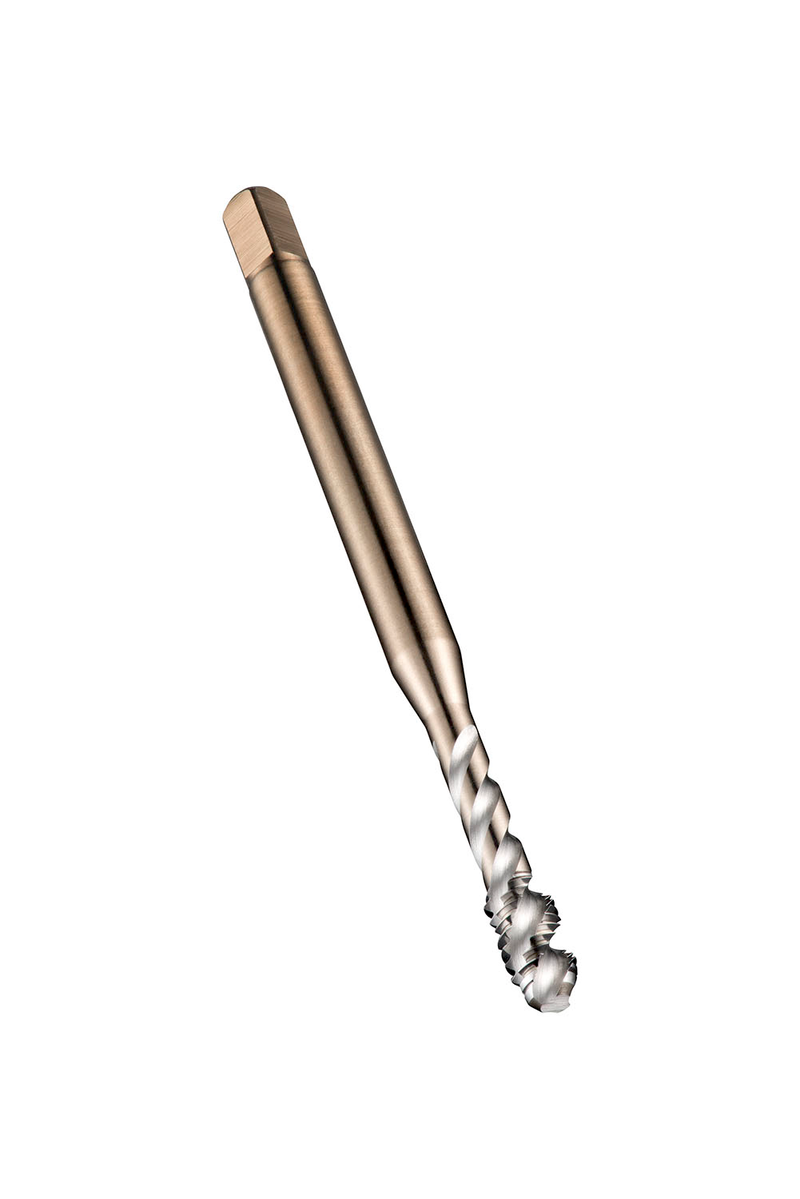

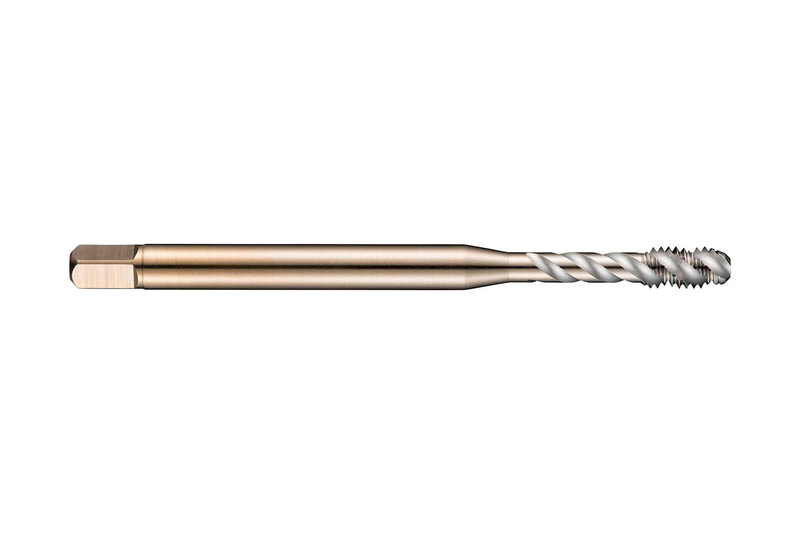

Taraud machine à coupe spirale, forme C, 2-3 filets d'entrée, pour filetage ISO-métrique M8 au pas de 1,25 mm et tolérance 6G, dimensions conformes à la norme DIN 371, avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E PM avec finition brillante et angle d'hélice de 45° pour taraudage de trous borgnes jusqu'à 2,5xD dans les aciers de décolletage, aciers au carbone et alliés non traités, ainsi que l'aluminium forgé ou coulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EX00M86G
GradeLumineux
Product Number5973701
Product FamilyEX006G

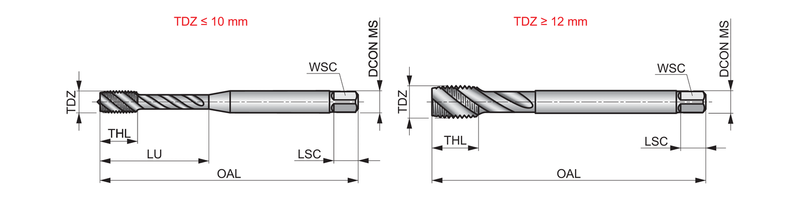

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number136430
EAN7320760136430
File Type Download
EX00M86G — Line Drawing PDF Download
