EP11M8X.75
EP11M8X.75
EP11M8X.75

EP11M8X.75

UGC DOR5973703
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.27 CAD - $55.27 CAD
$55.27 CAD
$55.27 CAD - $55.27 CAD
$55.27 CAD

Vendu en lots de : 1

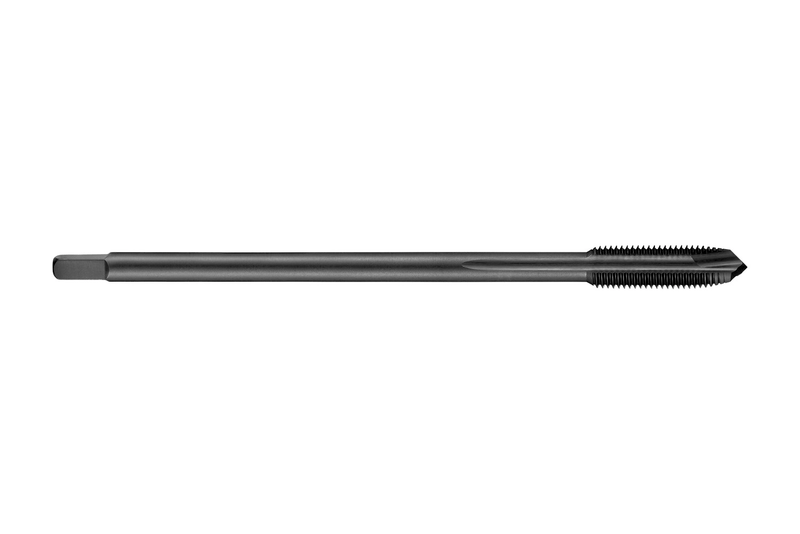

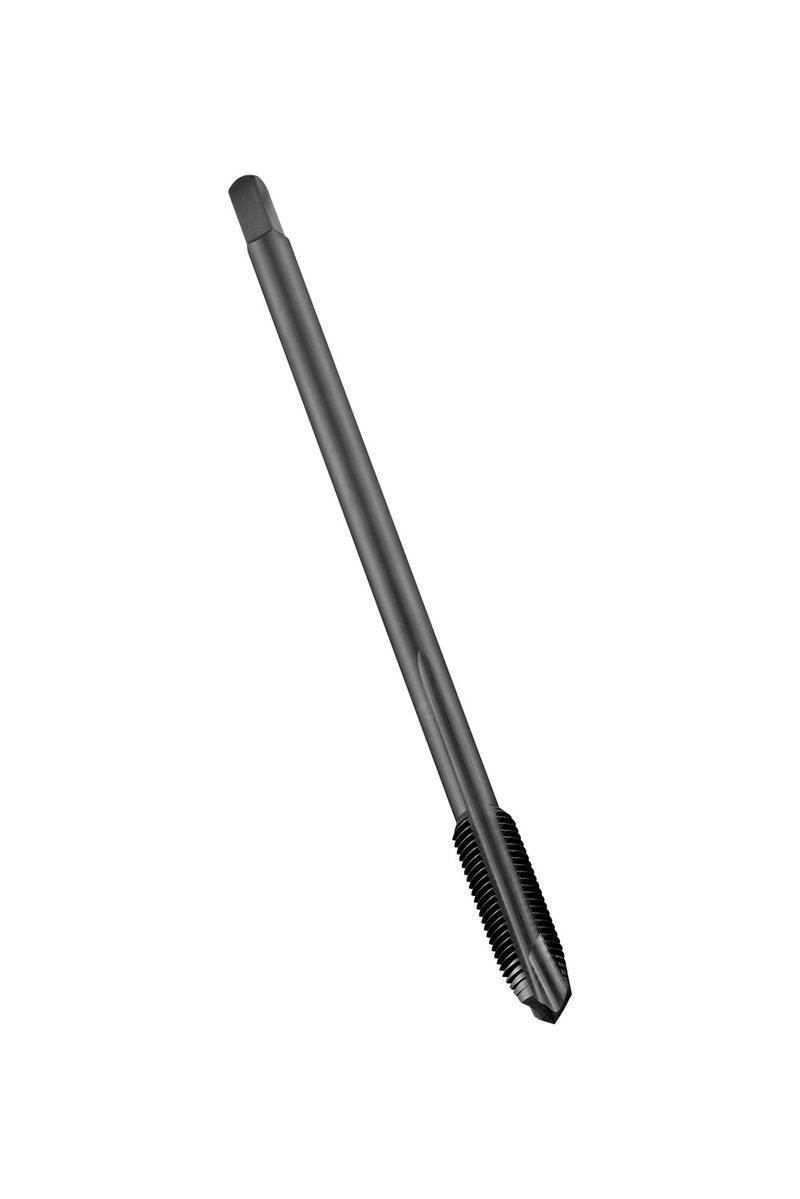

Taraud machine à pointe spirale avec entrée B (3,5-5 filets) pour filet métrique fin ISO M8 au pas de 0,75 mm de classe de tolérance 6H, dimensions conformes à la norme DIN 374, queue de 6,0 mm avec carré d'entraînement de 4,9 mm, en acier rapide HSS-E fritté avec finition de surface revenu vapeur pour filetage de trous débouchants jusqu'à 2.5xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M8X.75
GradeTrempé à la vapeur
Product Number5973703
Product FamilyPE11
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number137673
EAN7320760137673
File Type Download
EP11M8X.75 — Line Drawing PDF Download
