EP201
EP201
EP201

EP201

UGC DOR5973714
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$263.33 CAD - $263.33 CAD
$263.33 CAD
$263.33 CAD - $263.33 CAD
$263.33 CAD

Vendu en lots de : 1

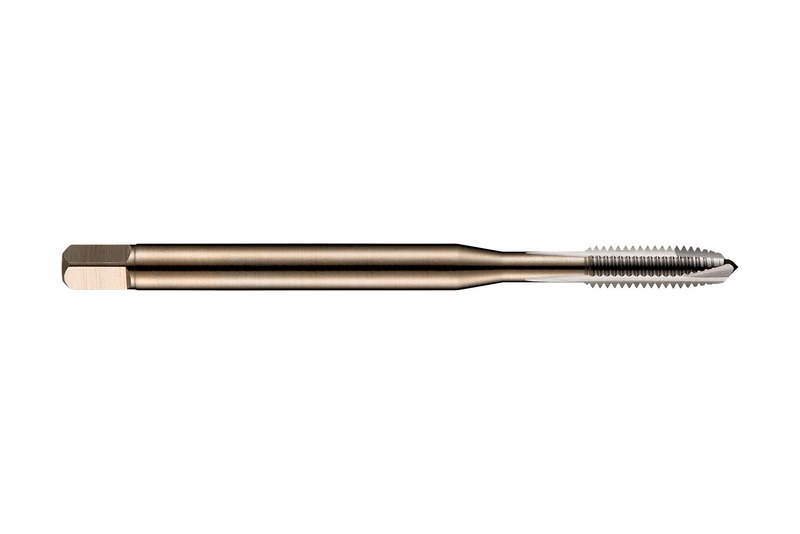

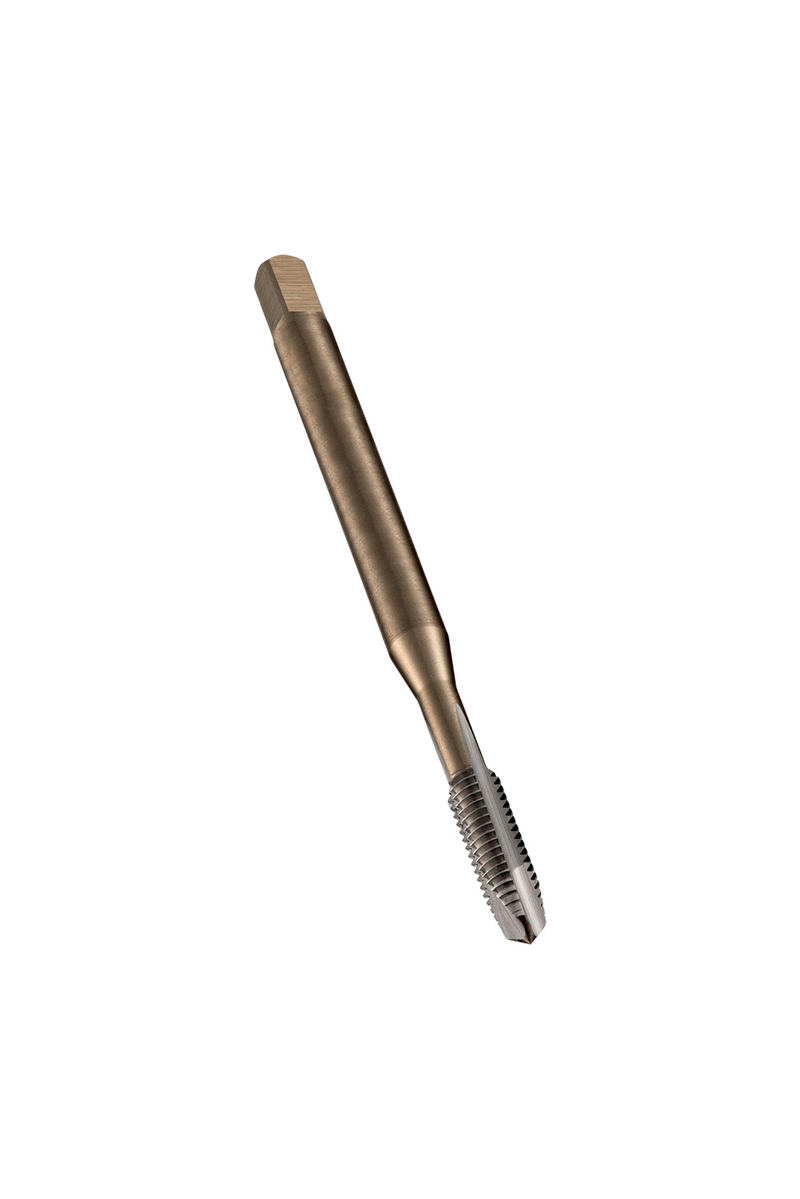

Taraud machine à pointe spirale et entrée courte type B (3.5-5xP) pour filetages Unified National Coarse UNC 1" avec 8 filets par pouce et classe de tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 18.0mm et carré d'entraînement de 14.5mm, en acier rapide fritté HSS-E avec finition brillante pour le filetage de trous débouchants jusqu'à 2.5xD dans l'acier de décolletage et au carbone non allié et l'aluminium corroyé ou coulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP201
GradeLumineux
Product Number5973714
Product FamilyEP20
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.0"
Thread Diameter — mm (TD)25.4 mm
Thread Form (THFT)CNU - Cohérent Non Unifié
Threads per Inch (TPI)8.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138168
EAN7320760138168
File Type Download
EP201 — Line Drawing PDF Download
