EP203/4
EP203/4
EP203/4

EP203/4

UGC DOR5973729
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$188.76 CAD - $188.76 CAD
$188.76 CAD
$188.76 CAD - $188.76 CAD
$188.76 CAD

Vendu en lots de : 1

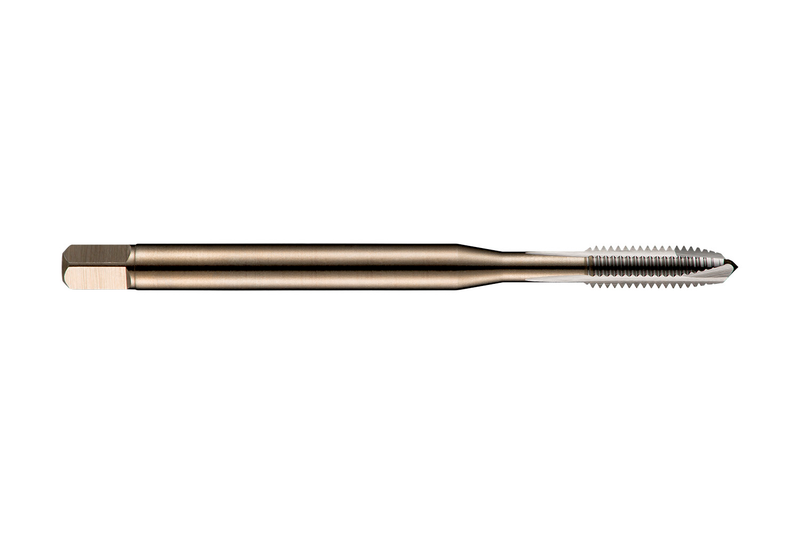

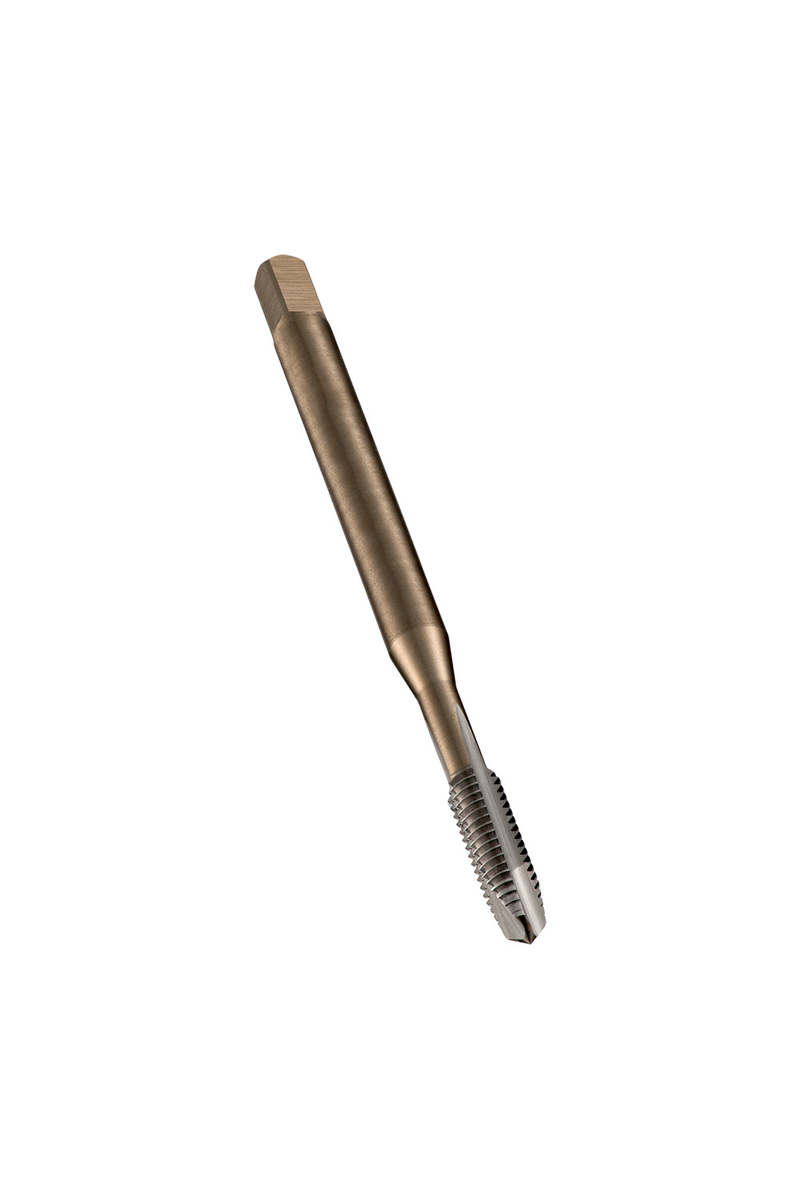

Taraud machine à coupe à gauche, forme B, entrée 3,5-5 filets, pour filetage UNC 3/4" avec 10 filets au pouce, tolérance 2B, dimensions selon DIN 2184-1, queue de 14,0mm et carré d'entraînement de 11,0mm, en HSS-E fritté, finition brillante, pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers de décolletage et les aciers au carbone non alliés, et les aluminiums corroyés ou coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP203/4
GradeLumineux
Product Number5973729
Product FamilyEP20
Dimensions
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UC - Unifié grossier
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138144
EAN7320760138144
File Type Download
EP203/4 — Line Drawing PDF Download
