EP203/8
EP203/8
EP203/8

EP203/8

UGC DOR5973732
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.13 CAD - $76.13 CAD
$76.13 CAD
$76.13 CAD - $76.13 CAD
$76.13 CAD

Vendu en lots de : 1

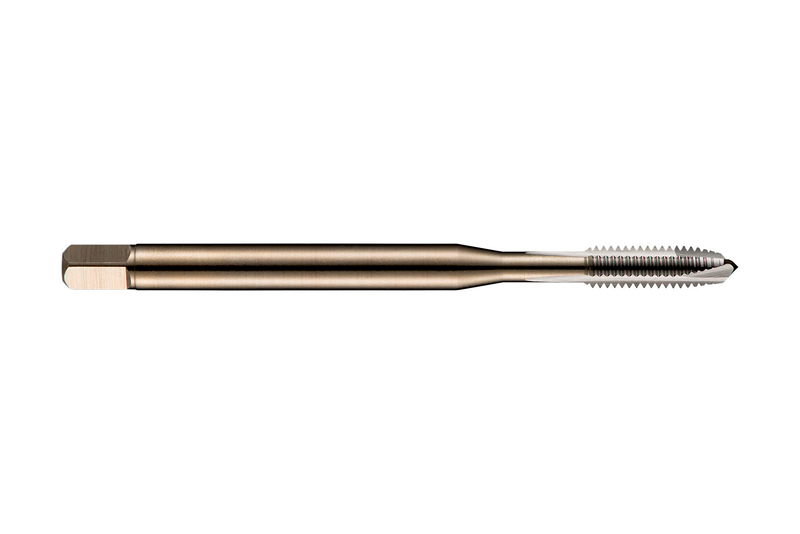

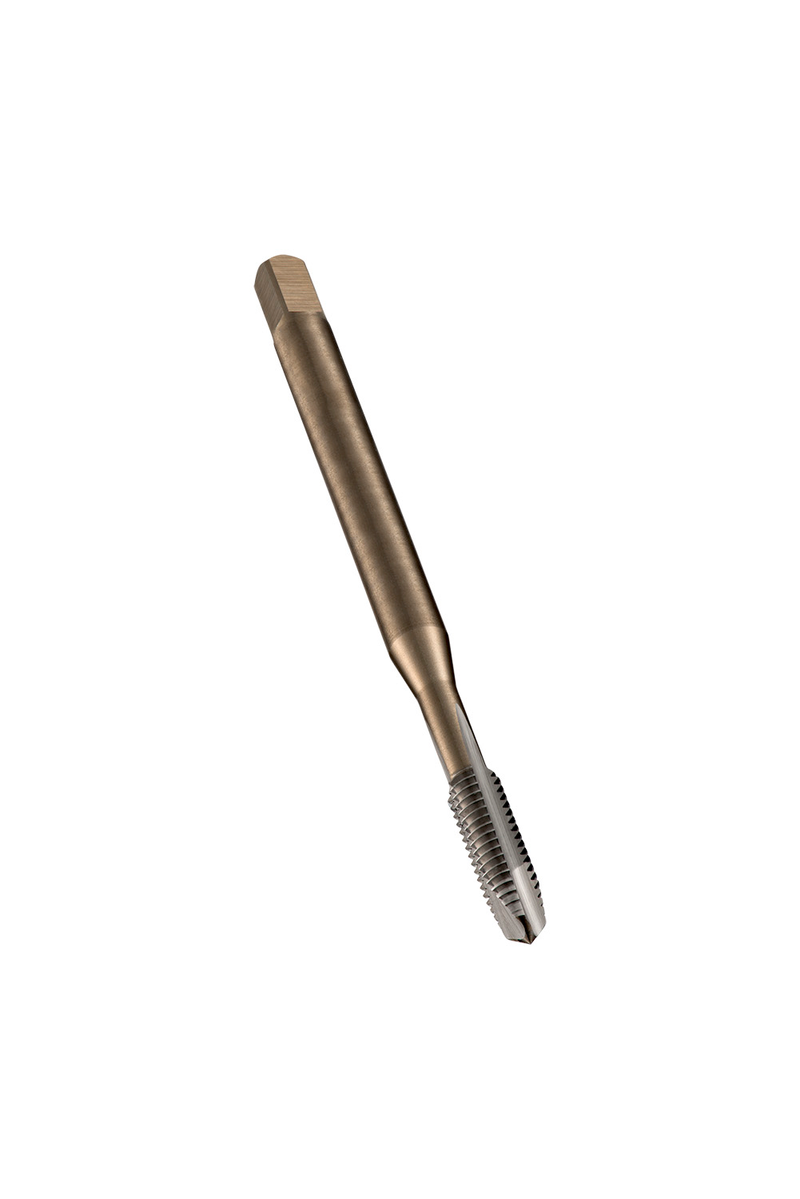

Taraud machine à pointe spirale avec chanfrein forme B avec une entrée de 3,5 à 5xP, pour filetage Unified National Coarse UNC 3/8" avec 16 filets par pouce et classe de tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS-E métallurgie des poudres avec finition brillante pour le taraudage de trous débouchants jusqu'à 2,5xD dans les aciers automates et aciers au carbone non alliés, ainsi que l'aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP203/8
GradeLumineux
Product Number5973732
Product FamilyEP20
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)UNC - Grossier unifié
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138106
EAN7320760138106
File Type Download
EP203/8 — Line Drawing PDF Download
