EP205/16
EP205/16
EP205/16

EP205/16

UGC DOR5973741
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.19 CAD - $65.19 CAD
$65.19 CAD
$65.19 CAD - $65.19 CAD
$65.19 CAD

Vendu en lots de : 1

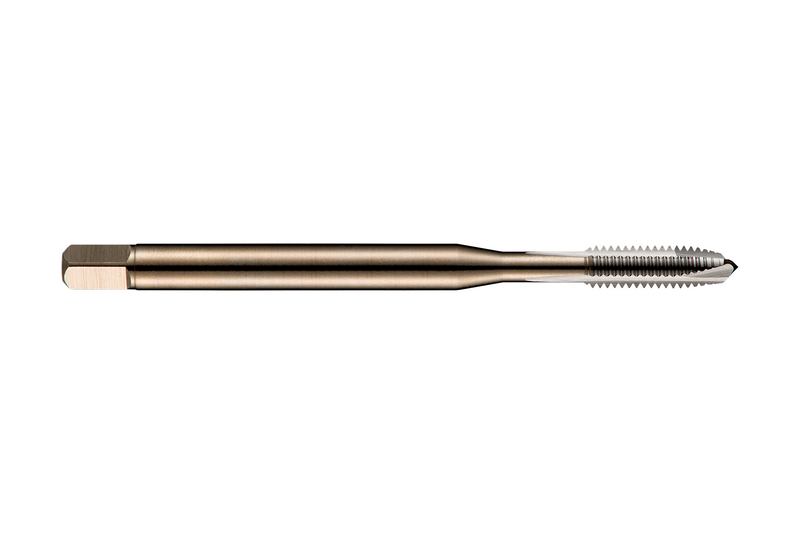

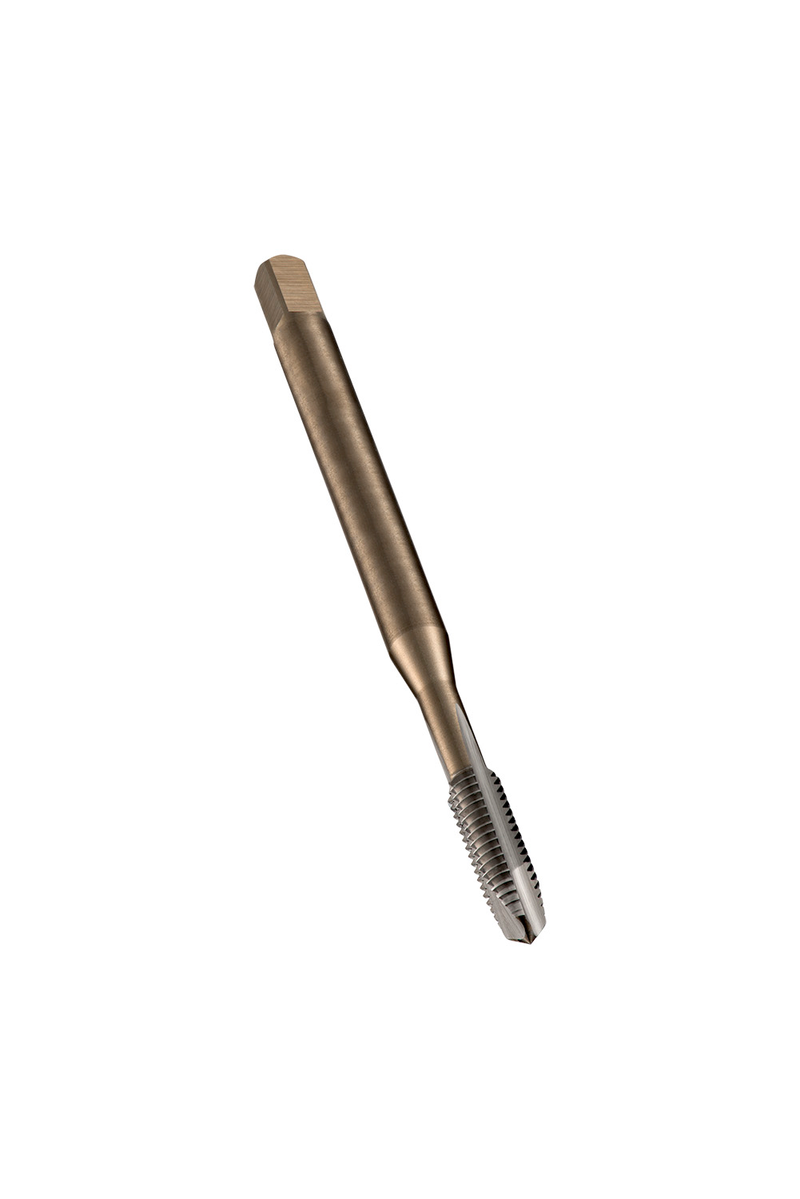

Taraud machine à pointe spirale et chanfrein forme B avec entrée de 3,5 à 5xP pour filetages Unified National Coarse UNC 5/16" à 18 filets par pouce (TPI) et classe de tolérance 2B, dimensions selon la norme DIN 2184-1 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, HSS-E (acier rapide fritté) avec finition brillante pour le taraudage de trous débouchants jusqu'à 2.5xD dans les aciers de décolletage, aciers au carbone non alliés et aluminium corroyé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP205/16
GradeLumineux
Product Number5973741
Product FamilyEP20
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number138090
EAN7320760138090
File Type Download
EP205/16 — Line Drawing PDF Download
